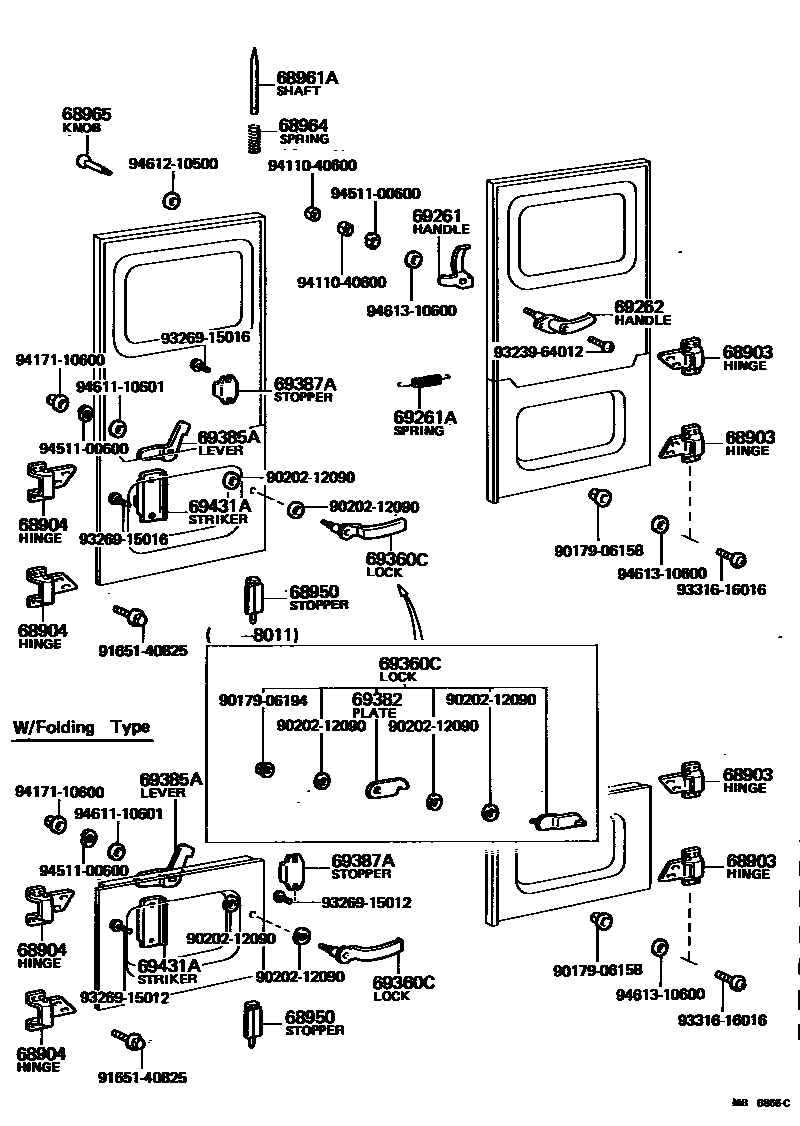

BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1

68903HINGE, REAR SWING GATE, RH

main68905-90304iBJ41..VLS198006-198110

UPR

main68906-90303iBJ41..VLS198008-198110

LWR

68904HINGE, REAR SWING GATE, LH

main68905-90304iBJ41..VLS198008-198110

LWR

main68906-90303iBJ41..VLS198008-198110

UPR

68950STOPPER ASSY, REAR SWING GATE LOCK

main68950-90305iBJ4#..TPC,VLS198008-198410

68961ASHAFT, REAR SWING DOOR OPEN STOPPER

main68961-90315iBJ4#..TPC198008-198410

68964SPRING, REAR SWING DOOR OPEN STOPPER

main90501-12037iBJ4#..TPC198008-198410

68965KNOB, REAR SWING DOOR OPEN STOPPER

main68962-90300iBJ4#..TPC198008-198410

69261HANDLE, REAR SWING DOOR INSIDE

main69261-90323iBJ4#..TPC198008-198410

69261ASPRING, TENSION(FOR REAR SWING DOOR HANDLE)

main90506-18324iBJ4#..TPC198008-198410

69262HANDLE, REAR SWING DOOR OUTSIDE

main69201-90327iBJ4#..TPC198008-198410

69360CLOCK ASSY, REAR SWING GATE

main69029-90800iBJ4#..TPC198011-198410

main69209-90800iBJ4#..TPC198008-198011

FOLDING TYPE

main69360-60010iBJ41..VLS198008-198110

main69380-90316iBJ4#..TPC198008-198011

69382PLATE, REAR SWING GATE LOCK

main69382-90315iBJ4#..TPC198008-198011

69385ALEVER, REAR SWING GATE LOCK

main69385-90800iBJ4#..TPC198008-198410

69387ASTOPPER, REAR SWING GATE LOCK LEVER

main69387-90800iBJ4#..TPC198008-198410

69431ASTRIKER, REAR SWING GATE LOCK

main69431-90800iBJ4#..TPC198008-198410

9017906158

main90179-06158

9017906194

main90179-06194

9020212090

main90202-12090

9165140825

main91651-40825

9323964012

main93239-64012

9326915012

main93269-15012

9326915016

main93269-15016

9331616016

main93316-16016

9411040600

main94110-40600

9417110600

main94171-10600

9451100600

main94511-00600

9461110601

main94611-10601

9461210500

main94612-10500

9461310600

main94613-10600

28 parts on this diagram · 3 diagrams in section
