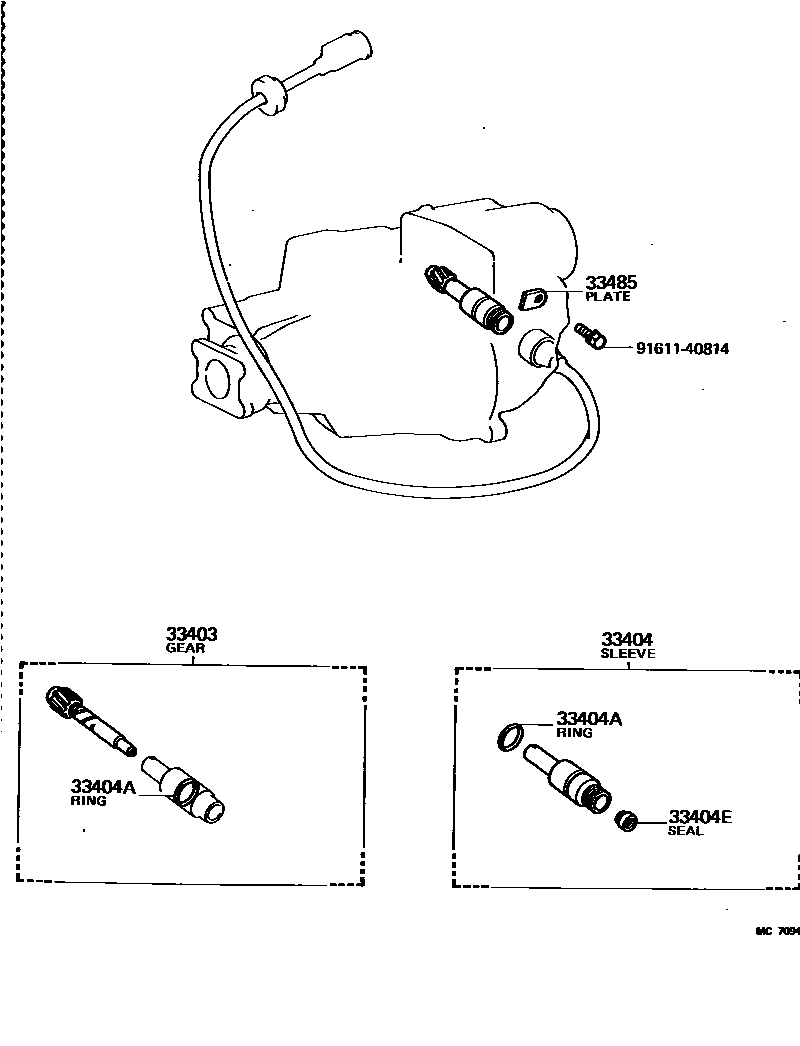

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-69016iBJ4#..40K,50K198008-198410

main33403-69065iBJ4#198110-198410

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iBJ4#198008-198410

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBJ4#198008-198410

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBJ4#198008-198410

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBJ4#198008-198410

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
