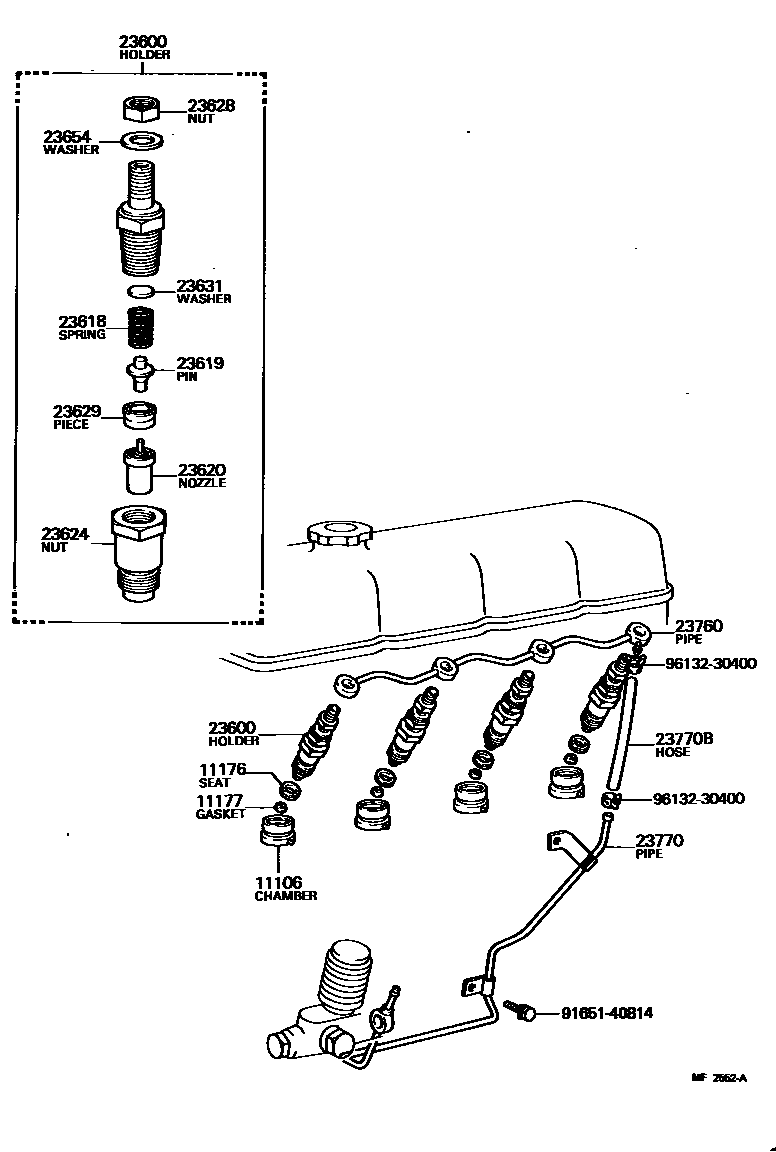

INJECTION NOZZLE

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-56010i2B..BJ4#198008-198210

sub11106-56030

main11106-58010i3B..BJ4#198210-198410

11176SEAT, INJECTION NOZZLE

main11176-56010i2B,3B..BJ4#198008-198410

11177GASKET, INJECTION NOZZLE SEAT

main11177-56010i2B,3B..BJ4#198008-198410

23600HOLDER & NOZZLE SET, NOZZLE

main23600-56011i2B..BJ4#198008-198210

main23600-56020i3B..BJ4#198210-198410

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-56010i2B,3B..BJ4#198008-198410

23619PIN, NOZZLE HOLDER PRESSURE

main23619-46010i2B,3B..BJ4#198008-198410

23620NOZZLE ASSY

main23620-54010i2B..BJ4#198008-198210

main23620-56020i3B..BJ4#198210-198410

23624NUT, NOZZLE RETAINING

main23624-47011i2B..BJ4#198008-198210

main23624-54020i3B..BJ4#198210-198410

sub23624-58080

23628NUT(FOR RING PACKING SETTING)

main23628-46010i2B,3B..BJ4#198008-198410

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-46010i2B,3B..BJ4#198008-198410

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-46010i2B,3B..BJ4#198008-198410

main23632-46010i2B,3B..BJ4#198008-198410

main23633-46010i2B,3B..BJ4#198008-198410

main23634-46010i2B,3B..BJ4#198008-198410

main23635-46010i2B,3B..BJ4#198008-198410

main23636-46010i2B,3B..BJ4#198008-198410

main23637-46010i2B,3B..BJ4#198008-198410

main23638-46010i2B,3B..BJ4#198008-198410

main23639-46010i2B,3B..BJ4#198008-198410

main23641-46010i2B,3B..BJ4#198008-198410

main23642-46010i2B,3B..BJ4#198008-198410

main23643-46010i2B,3B..BJ4#198008-198410

main23644-46010i2B,3B..BJ4#198008-198410

main23645-46010i2B,3B..BJ4#198008-198410

main23646-46010i2B,3B..BJ4#198008-198410

main23647-46010i2B,3B..BJ4#198008-198410

main23648-46010i2B,3B..BJ4#198008-198410

main23649-46010i2B,3B..BJ4#198008-198410

main23651-46010i2B,3B..BJ4#198008-198410

main23652-46010i2B,3B..BJ4#198008-198410

23654WASHER(FOR RING PACKING)

main23654-46010i2B,3B..BJ4#198008-198410

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-56020i2B..BJ4#198008-198204

main23760-56021i2B..BJ4#198204-198208

main23760-56022i2B,3B..BJ4#198208-198408

main23760-56040i3B..BJ4#198408-198410

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-56030i2B..BJ4#198008-198210

main23770-56040i3B..BJ4#198210-198408

main23770-56060i3B..BJ4#198408-198410

23770BHOSE, FUEL

main95332-04020i2B..BJ4#198008-198012

sub95333-04020

main95332-04020i2B,3B..BJ4#198012-198408

sub95333-04020

main95332-04020i3B..BJ4#198408-198410

sub95333-04020

9165140814

main91651-40814

9613230400

main96132-30400

17 parts on this diagram · 2 diagrams in section
