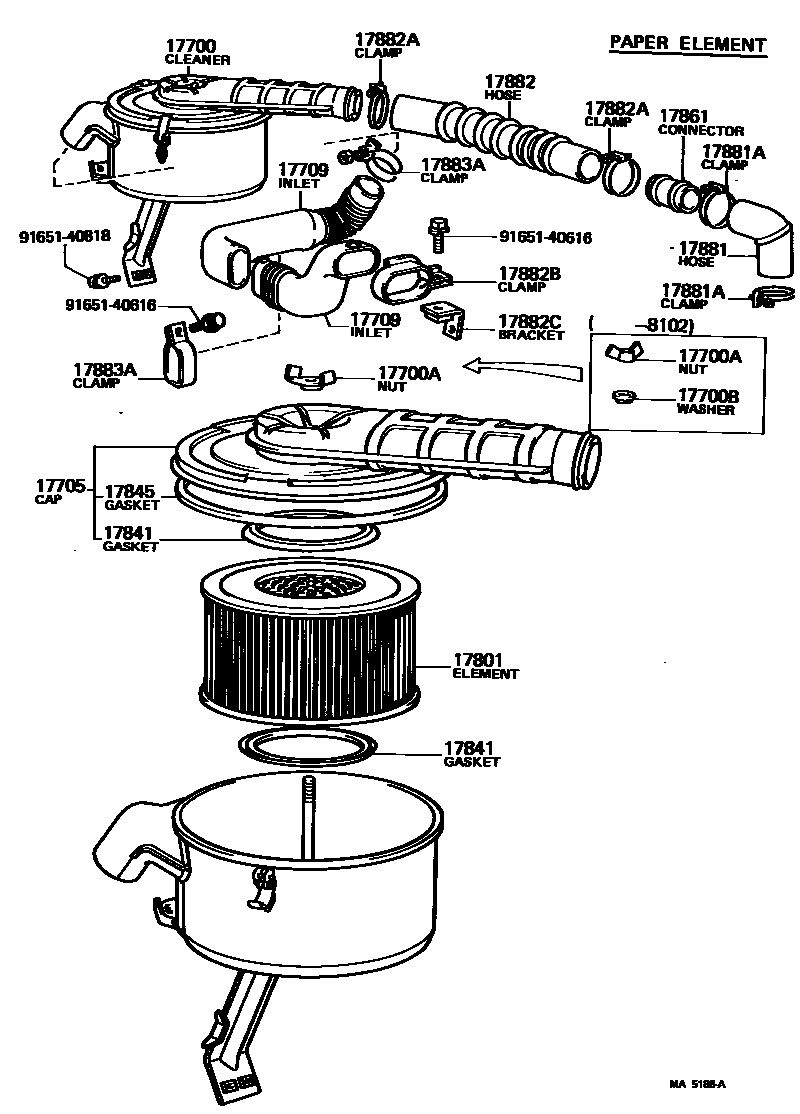

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-58010i2B..BJ4#198008-198102

main17700-58040i2B..BJ4#198102-198210

main17700-58041i3B..BJ4#198210-198410

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i2B,3B..BJ4#198102-198410

main94271-00800i2B..BJ4#198008-198102

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08003i2B..BJ4#198008-198102

17705CAP SUB-ASSY, AIR CLEANER

main17705-56071i2B..BJ4#198008-198102

main17705-56290i2B,3B..BJ4#198102-198410

17709INLET SUB-ASSY, AIR CLEANER

main17795-90300i2B,3B..BJ4#198008-198410

BODY SIDE

main17796-90300i2B,3B..BJ4#198008-198410

AIR CLEANER SIDE

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-66020i2B..BJ4#198008-198210

main17801-68020i3B..BJ4#198210-198410

17841GASKET, FILTER ELEMENT

main17841-68010×2i2B,3B..BJ4#198008-198410

17845GASKET, AIR CLEANER CAP

main17845-56040i2B..BJ4#198008-198210

main17845-61011i3B..BJ4#198210-198410

*G,L=838

17861CONNECTOR, INTAKE AIR

main17885-56010i2B,3B..BJ4#198008-198410

17881HOSE, AIR CLEANER, NO.1

main17881-56030i2B,3B..BJ4#198008-198410

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10670×2i2B,3B..BJ4#198008-198410

L=67

17882HOSE, AIR CLEANER, NO.2

main17882-56020i2B,3B..BJ4#198008-198410

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10670i2B,3B..BJ4#198008-198410

CONNECTOR SIDE

main96111-10750i2B,3B..BJ4#198008-198410

AIR CLEANER SIDE

17882BCLAMP(FOR COOL AIR INTAKE)

main17782-90300i2B,3B..BJ4#198008-198410

17882CBRACKET(FOR COOL AIR INTAKE)

main17781-90300i2B,3B..BJ4#198008-198410

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main17783-90300i2B,3B..BJ4#198008-198410

INLET SIDE

main96111-10690i2B,3B..BJ4#198008-198410

AIR CLEANER SIDE

9165140616

main91651-40616

9165140818

main91651-40818

18 parts on this diagram · 1 diagram in section
