Toyota LAND CRUISER S/T,H/T781 — MANIFOLD

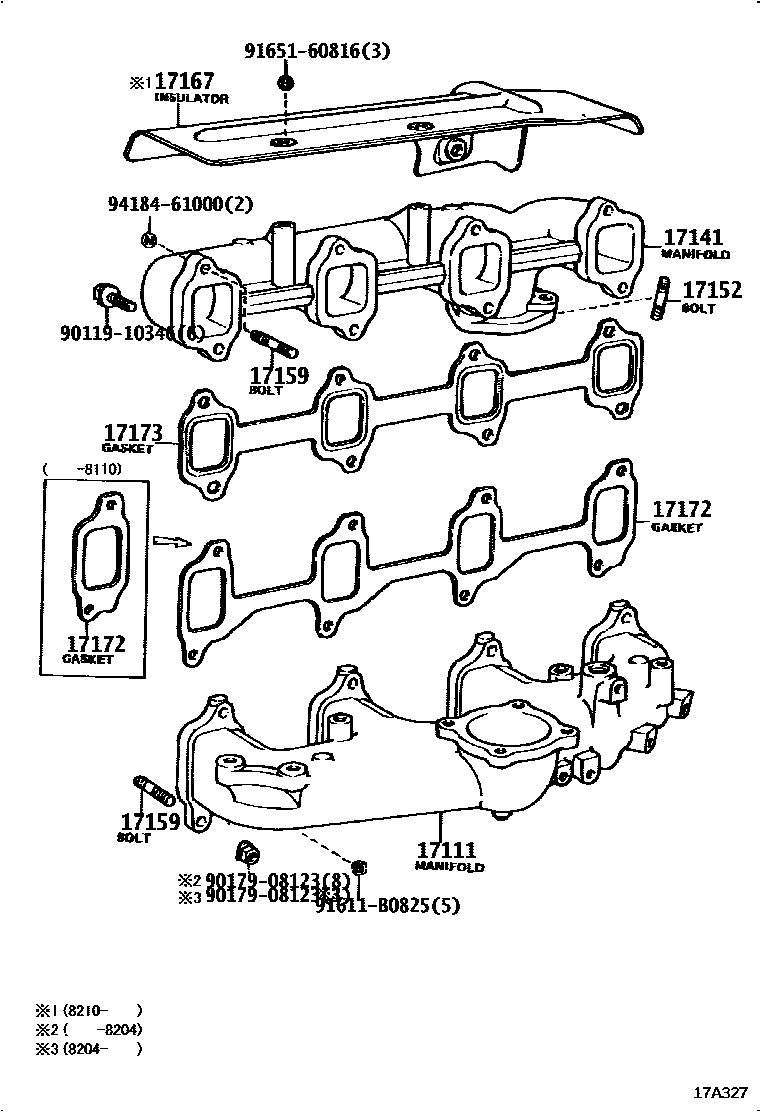

Parts diagram

17111MANIFOLD, INTAKE

17141MANIFOLD, EXHAUST

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17172GASKET, MANIFOLD TO CYLINDER HEAD

17173GASKET, EXHAUST MANIFOLD TO HEAD

9011910346

9017908123

91611B0825

9165160816

9418461000

12 parts on this diagram · 2 diagrams in section

MANIFOLD for Toyota LAND CRUISER S/T,H/T781

This section contains 12 genuine Toyota parts for the MANIFOLD system of the Toyota LAND CRUISER S/T,H/T781. Key components include: MANIFOLD, INTAKE, MANIFOLD, EXHAUST, BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE), BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD), INSULATOR, EXHAUST MANIFOLD HEAT, NO.1.
