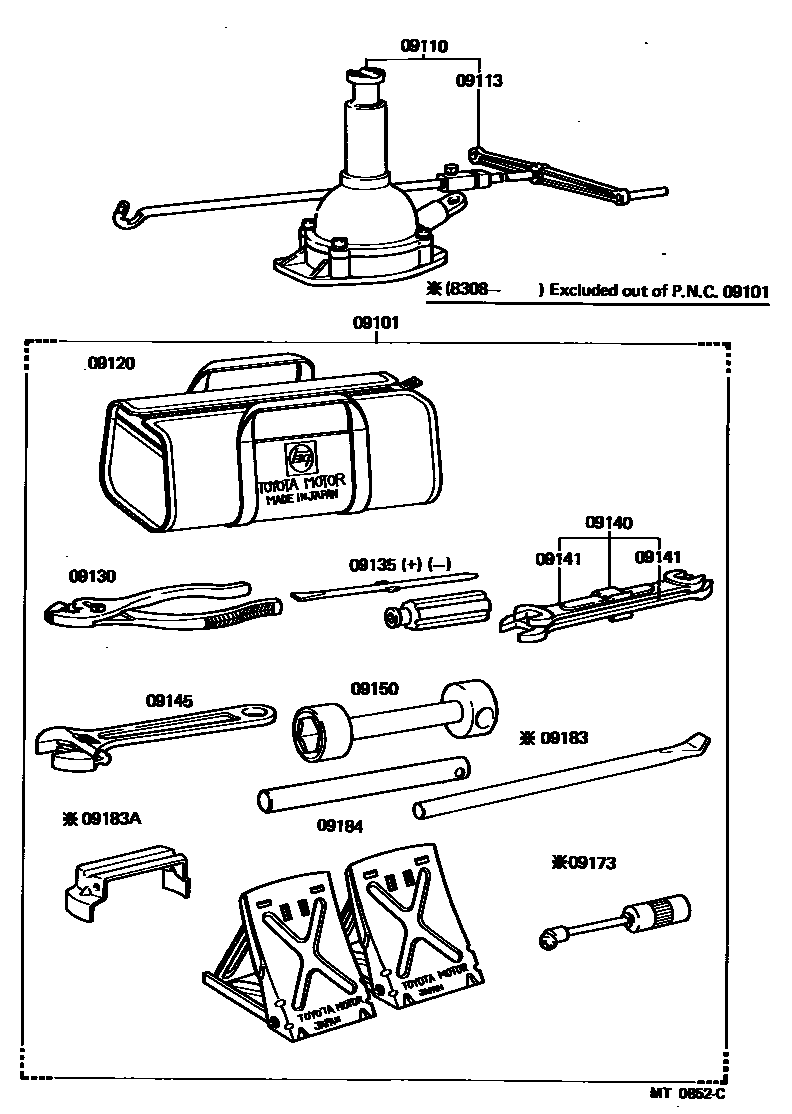

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-60080iBJ4#198008-198110

main09101-60180iBJ4#198110-198205

main09101-60220iBJ4#198205-198210

main09101-60222iBJ4#..5F198210-198410

W/FREE WHEEL HUB

main09101-60250iBJ4#..4F198210-198308

main09101-60252iBJ4#..5F198210-198308

09110JACK ASSY

main09110-60010iBJ4#198008-198308

main09110-60040iBJ4#198308-198410

09113HANDLE, JACK

main09113-60010iBJ4#198008-198308

main09113-60040iBJ4#198308-198410

09120BAG, TOOL

main09120-60060iBJ4#198008-198410

09130PLIERS

main09130-00030iBJ4#198008-198205

main99913-12000iBJ4#198205-198410

09135DRIVER, SCREW

main99915-10700iBJ4#198008-198410

(+),(-)

09140SPANNER SET

main09140-27010iBJ4#198008-198410

09141SPANNER

main99914-11012iBJ4#198008-198410

main99914-11417iBJ4#198008-198410

09145WRENCH, MONKEY

main99911-10250iBJ4#198008-198410

09150WRENCH, HUB NUT BOX

main09150-60010iBJ4#198008-198410

09173ATTACHMENT, GREASE GUN

main09173-00020iBJ4#..5F198210-198410

09183WRENCH, WHEEL CAP

main09183-00030iBJ4#198110-198210

09183AREPLACER, WHEEL CAP

main09183-60010iBJ4#198110-198210

09184STOPPER, WHEEL

main09184-00031×2iBJ4#198008-198410

14 parts on this diagram · 1 diagram in section
