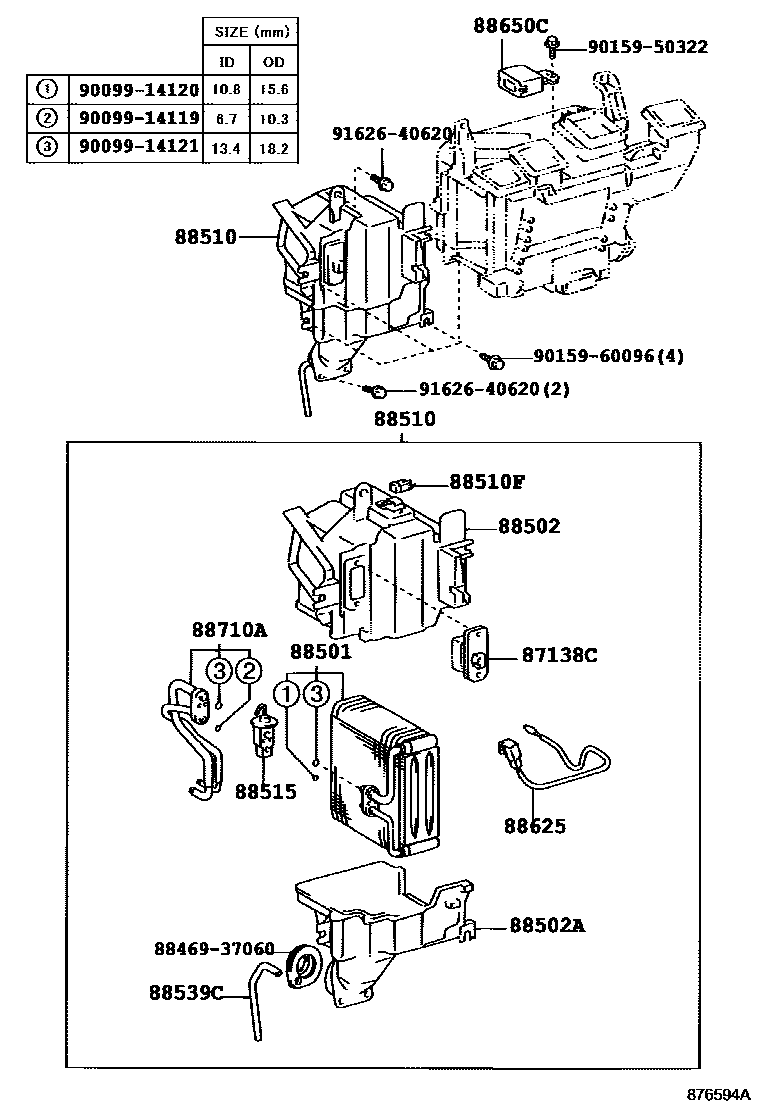

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87138CRESISTOR, BLOWER

main87138-37090iXKU414,424200310-200610

main87138-37220iXKU414,424200802-200902

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37060iXKU414,424200310-200610

main88501-37090iXKU414,424200610-201106

88502CASE SUB-ASSY, COOLING UNIT

main88502-37050iXKU414,424200310-200610

main88502-37060iXKU414,424200610-201106

88502ACASE SUB-ASSY, COOLING UNIT

main88502-37040iXKU414,424200310-200610

main88502-37070iXKU414,424200610-201106

88510UNIT ASSY, COOLER

main88510-37120iXKU414,424200310-200610

main88510-37230iXKU414,424200610-201106

88510FHOLDER, FUSE

main82630-95J03iXKU414,424200310-200610

88515VALVE, COOLER EXPANSION

main88515-28160iXKU414,424200311-200610

main88515-48040iXKU414,424200310-200311

main88515-60150iXKU414,424200610-201106

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-37060iXKU414,424200310-200610

88625THERMISTOR, COOLER, NO.1

main88625-20460iXKU414,424200310-200610

main88625-37020iXKU414,424200610-201106

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-37120iXKU414,424200310-200610

main88650-37290iXKU414,424200610-201106

88710ATUBE ASSY, AIR CONDITIONER

main88710-37340iXKU414,424200310-200610

main88710-37480iXKU414,424200610-201106

8846937060SWITCH, PRESSURE CONTROL

main88469-37060

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9015950322

main90159-50322

9015960096

main90159-60096

9162640620

main91626-40620

18 parts on this diagram · 2 diagrams in section
