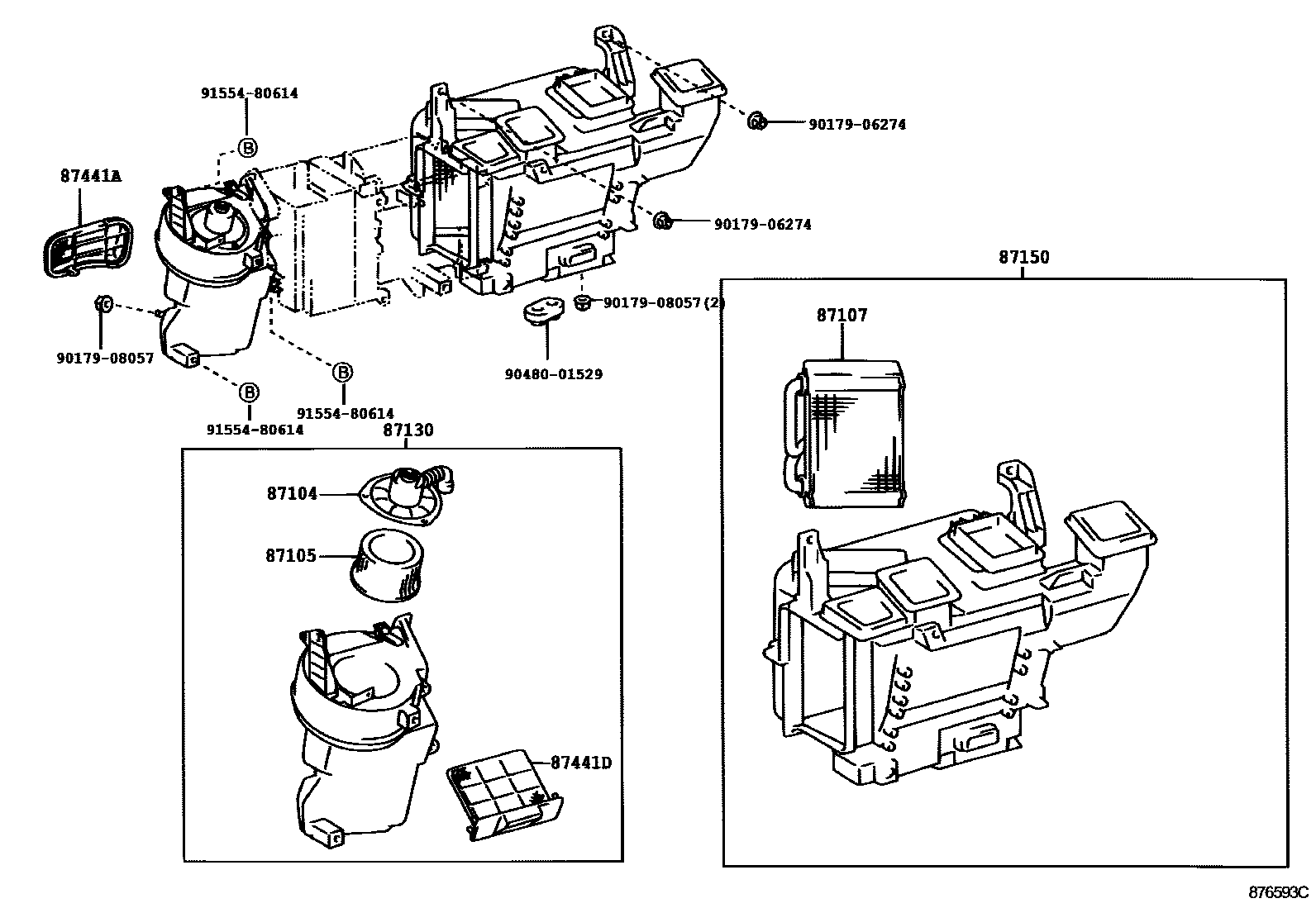

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-37140iXKU414,424200610

87105FAN SUB-ASSY, HEATER BLOWER

main87105-37030iXKU414,424200310-200610

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-25050iXKU414,424200610

main87107-37040iXKU414,424200310-200610

87130BLOWER ASSY, HEATER, FRONT

main87130-37100iXKU414,424200610-201007

main87130-37101iXKU414,424201008

87150RADIATOR ASSY, HEATER

main87150-37230iXKU414,424200310-200609

main87150-37310iXKU414,424200610

87441AFILTER, HEATER AIR

main87441-37010iXKU414,424200310-200610

87441DFILTER, HEATER AIR, NO.2

main87441-37031iXKU414,424200310-200610

9017906274

main90179-06274

9017908057

main90179-08057

9048001529

main90480-01529

9155480614

main91554-80614

11 parts on this diagram · 1 diagram in section
