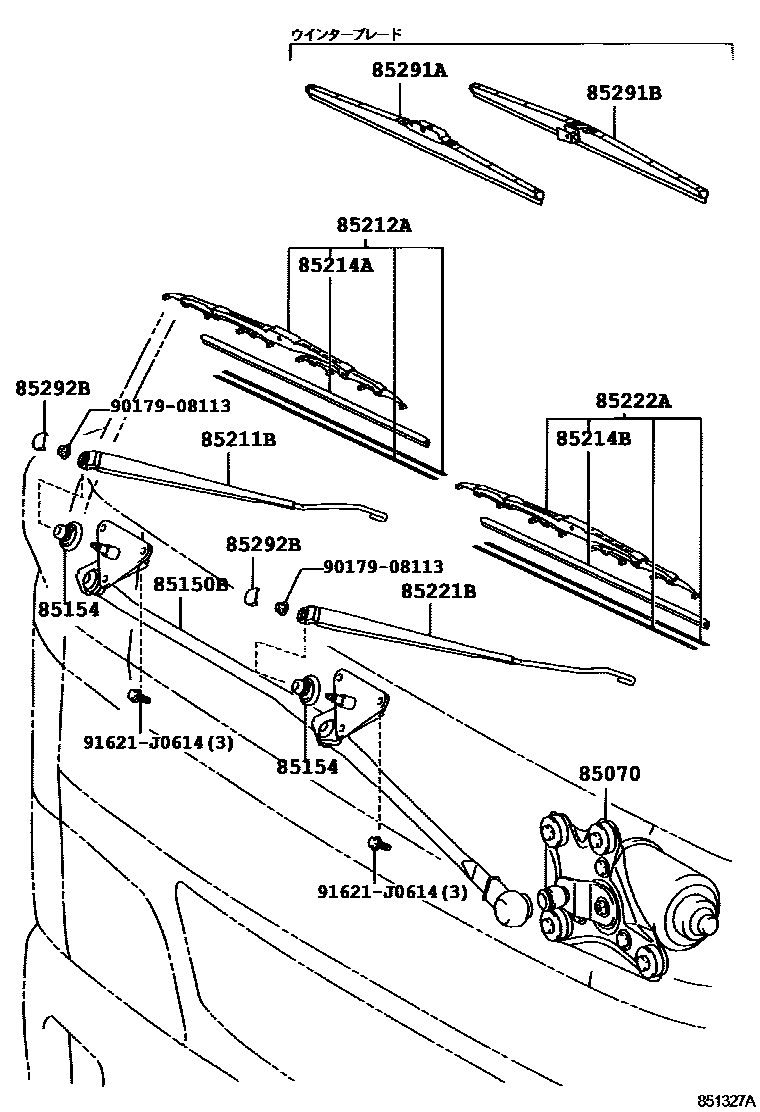

WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-37150iXKU414,424200310-200610

85150BLINK ASSY, WIPER

main85150-37110iXKU414,424200310-200609

main85150-37140iXKU414,424200610

85154PACKING, FRONT WIPER SHAFT

main85154-37030×2iXKU414,424200310-200610

85211BARM, FRONT WIPER, RH

main85211-37110iXKU414,424200310-200610

main85211-37140iXKU414,424200610

85212ABLADE, FR WIPER, RH

main85212-37080iXKU414,424200310-200605

main85212-37081iXKU414,424200606-200610

85214ARUBBER, WIPER, RH

main85214-24051iXKU414,424200606-200610

main85214-53050iXKU414,424200310-200606

85214BRUBBER, WIPER, LH

main85214-24051iXKU414,424200606-200610

main85214-53050iXKU414,424200310-200606

85221BARM, FRONT WIPER, LH

main85221-37170iXKU414,424200310-200610

85222ABLADE, FR WIPER, LH

main85222-37140iXKU414,424200310-200605

main85222-37141iXKU414,424200606-200610

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-33060iXKU414,424200310-200610

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-24110iXKU414,424200310-200610

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800×2iXKU414,424200310-200610

9017908113

main90179-08113

91621J0614

main91621-J0614

14 parts on this diagram · 1 diagram in section
