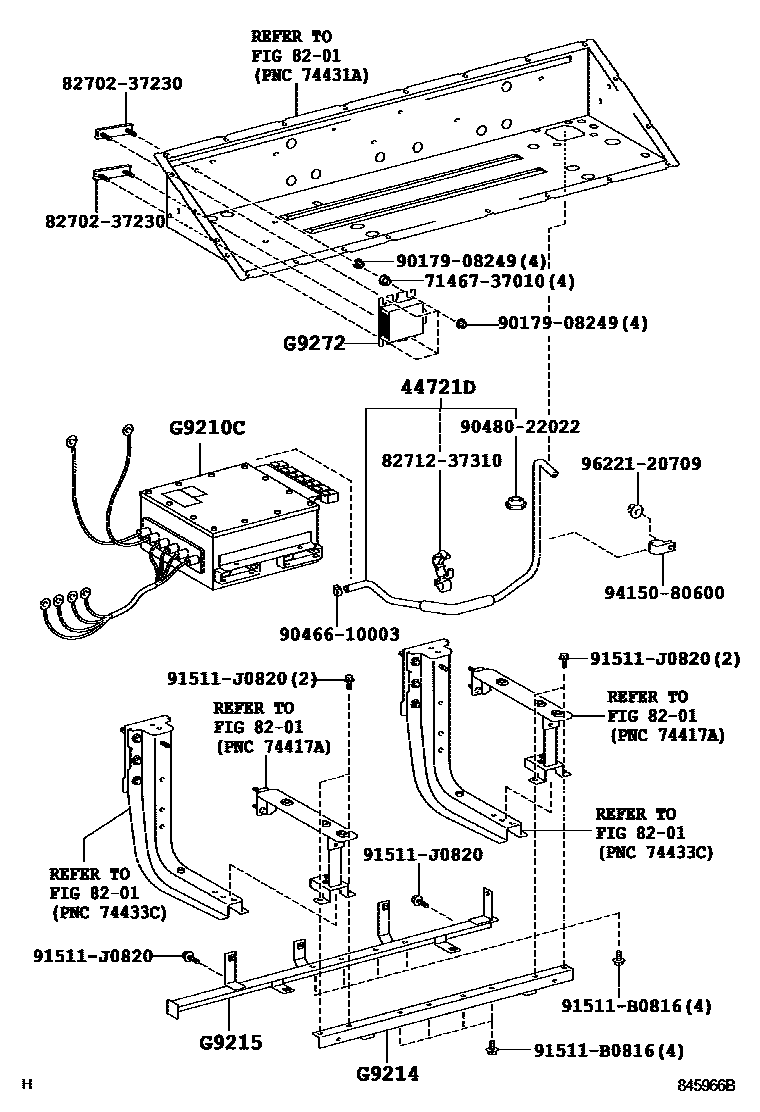

HEV INVERTER

0001 1 0002 1

44721DTUBE, AIR CONTROL, NO.1

main44721-37020iXKU414,424200508-200610

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

G9210CINVERTER ASSY, MOTOR & GENERATOR CONTROL

mainG921089101iXKU414,424200310-200311

mainG921089102iXKU414,424200311-200312

mainG921089103iXKU414,424200312-200407

mainG921089104iXKU414,424200408-200412

mainG921089105iXKU414,424200501-200502

mainG921089106iXKU414,424200502-200508

mainG921089107iXKU414,424200508-200604

mainG921089109iXKU414,424200605-200610

mainG921089202iXKU414,424200610-200803

mainG921089203iXKU414,424200804

G9214BRACKET, INVERTER, NO.1

mainG921489101iXKU414,424200310-200610

mainG921489202×2iXKU414,424200610

mainG921489204iXKU414,424200610

mainG921489205iXKU414,424200610

mainG921489206iXKU414,424200610

G9215BRACKET, INVERTER, NO.2

mainG921589102iXKU414,424200310-200610

G9272CONVERTER, HV

mainG927289101iXKU414,424200310-200610

7146737010PAD, CORNER

main71467-37010

8270237230BRACKET SUB-ASSY, WIRING HARNESS

main82702-37230

8271237310CLAMP, WIRING HARNESS

main82712-37310

9017908249

main90179-08249

9046610003

main90466-10003

9048022022

main90480-22022

91511B0816

main91511-B0816

91511J0820

main91511-J0820

9415080600

main94150-80600

9622120709

main96221-20709

16 parts on this diagram · 2 diagrams in section
