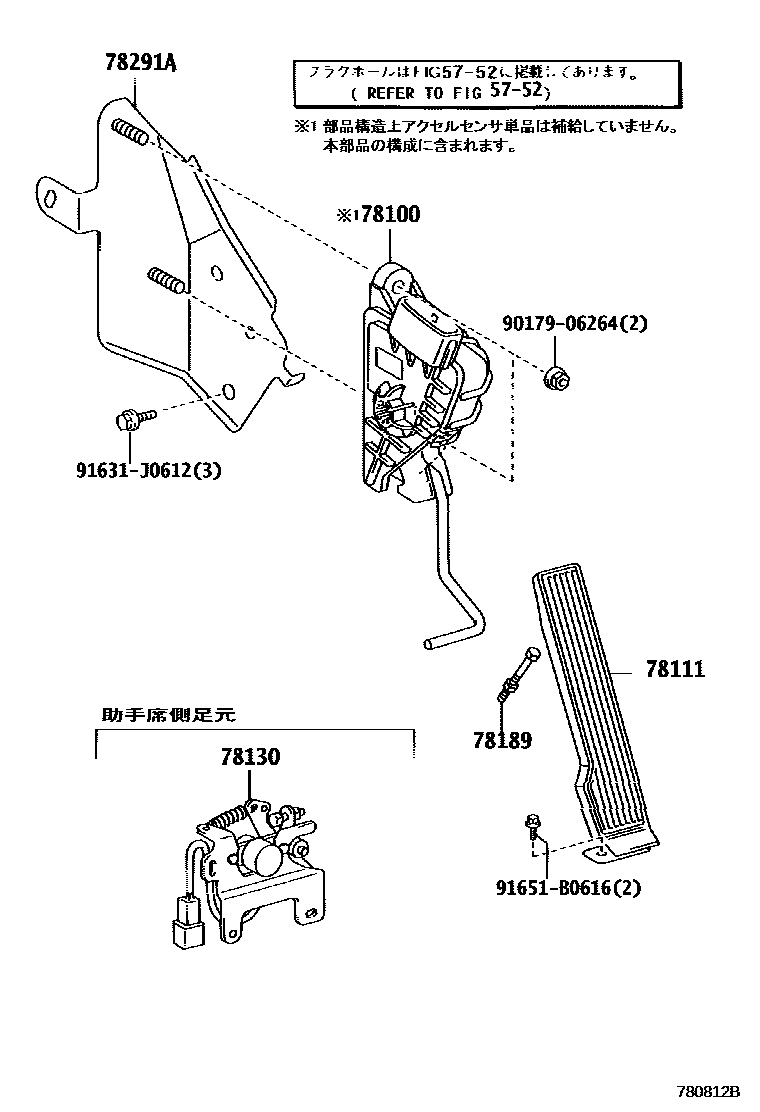

ACCELERATOR LINK

0001 1 0002 1����� ��� 0003 1

5752HOLE PLUG

→ Go to FIG 57-52

78100LINK ASSY, ACCELERATOR

main78100-37750iXKU414,424200310-200610

78111PEDAL, ACCELERATOR

main78110-95410iXKU414,424200310-200610

78130BELLCRANK ASSY, ACCELERATOR

main78130-37130iXKU414,424200310-200311

main78130-37131iXKU414,424200610

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37080iXKU414,424200310-200610

78291ABRACKET, ACCELERATOR LINK

main78291-37030iXKU414,424200310-200610

main78291-37040iXKU414200505-200610

main78291-37070iXKU414,424..6F200610

main78291-37090iXKU414..6FC200801

9017906264

main90179-06264

91631J0612

main91631-J0612

91651B0616

main91651-B0616

9 parts on this diagram · 3 diagrams in section
