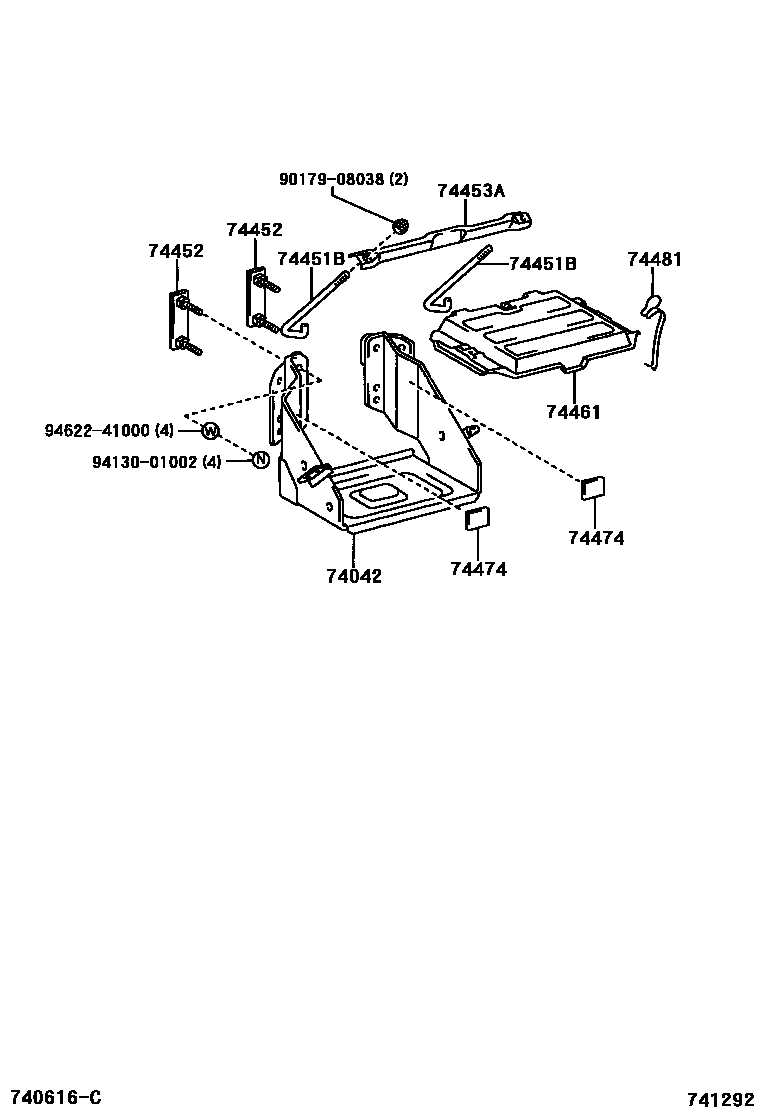

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-37050iXKU414,424200310-200610

74451BBOLT, BATTERY CLAMP

main74451-37021×2iXKU414,424200310-200610

74452PLATE, BATTERY SET

main74452-37020×2iXKU414,424200310-200610

74453ABAR, BATTERY SET PLATE

main74453-36070iXKU414,424200310-200610

74461COVER, BATTERY

main74461-37030iXKU414,424200310-200610

74474PAD, BATTERY

main74475-36040×2iXKU414,424200310-200610

74481CLAMP, BATTERY HOLD DOWN

main74481-36030×2iXKU414,424200310-200610

9017908038

main90179-08038

9413001002

main94130-01002

9462241000

main94622-41000

10 parts on this diagram · 1 diagram in section
