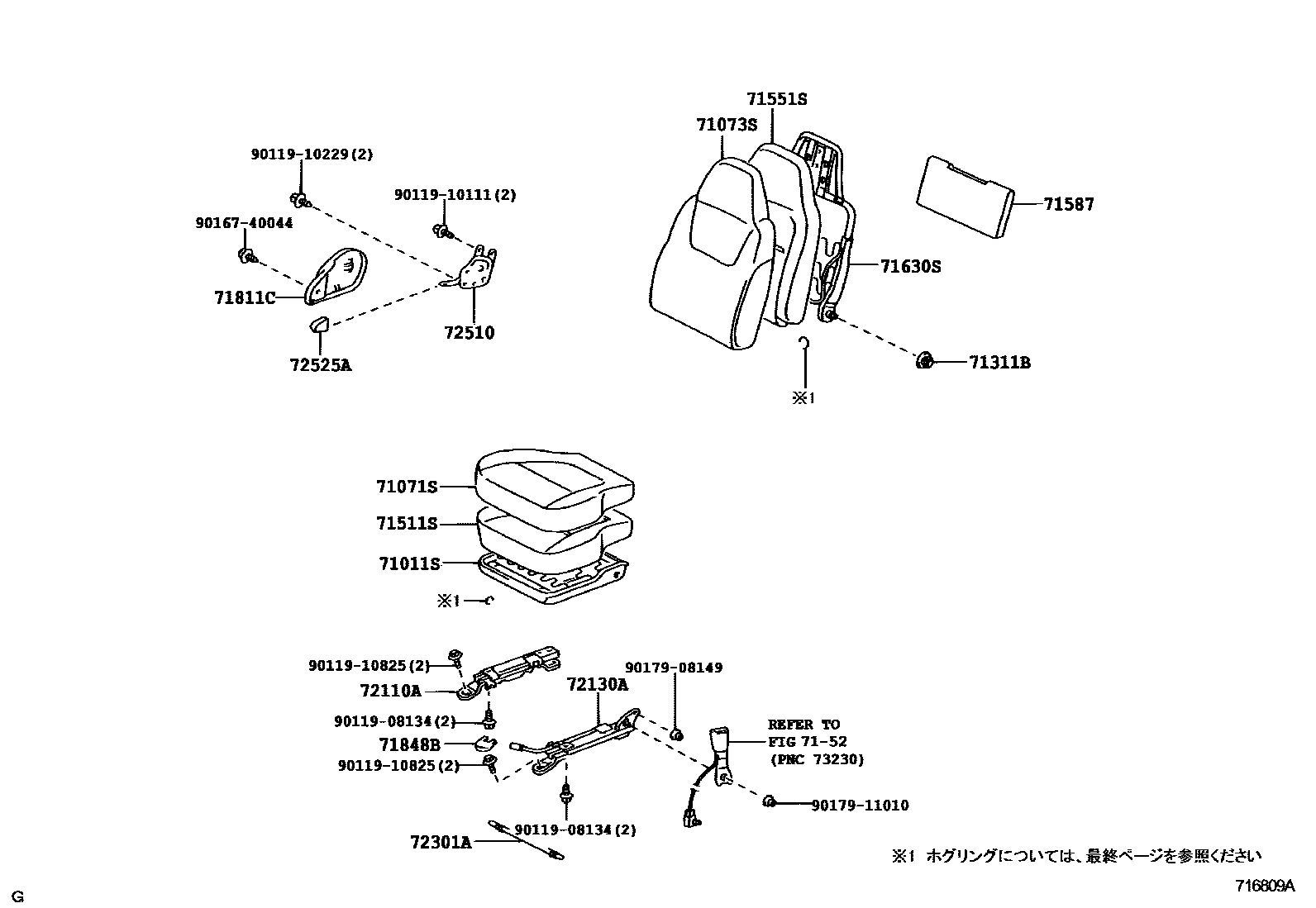

SEAT & SEAT TRACK

0001 1������ 0002 1������ 0003 1�������� 0004 1�������� 0005 1�������:2����� ��� 0006 1�������:2����� ��� 0007 1�������

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-37010iXKU414,424200310-200610

main71610-37050iXKU414,424200610

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37590-B0iXKU414,424200310-200406

main71071-37600-B1iXKU414,424200310-200610

main71071-37620-B0iXKU414,424200406-200610

main71071-37760-B0iXKU414,424200610-201106

main71071-37770-B0iXKU414,424200610-201106

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-37070-B0iXKU414,424200610-201106

main71027-37080-B0iXKU414,424200610-201106

main71027-37150-B0iXKU414,424200310-200406

main71027-37160-B0iXKU414,424200310-200610

main71073-37870-B0iXKU414,424200406-200610

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12053×2iXKU414,424200610

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-37080iXKU414,424200310-200610

main71511-37130iXKU414,424200610

7152

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37150iXKU414,424200310-200610

main71551-37210iXKU414,424200610

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37020×2iXKU414,424200610

sub71587-37021

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-37060iXKU414,424200310-200610

sub71630-37020

main71630-37110iXKU414,424200610

sub71630-25060

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37010-B0iXKU414,424200310-200610

MD.CHARCOAL,TRIM1#

sub71811-37011

main71811-37020-B0iXKU414,424200610-200909

MD.CHARCOAL,TRIM1#

main71811-37021-B0iXKU414,424200910-201106

MD.CHARCOAL,TRIM1#

sub71811-37022

71848BCAP, SEAT ADJUSTER COVER, RH

main72137-37010-B0iXKU414,424200310-200610

DK.CHARCOAL,TRIM1#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37020iXKU414,424200310-200610

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37020iXKU414,424200310-200610

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-37030iXKU414,424200310-200610

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-37020iXKU414,424200310-200610

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37010-B0iXKU414,424200310-200610

MD.CHARCOAL,TRIM1#

main72525-37020-B0iXKU414..6FC200610-200910

MD.CHARCOAL,TRIM1#

9011908134

main90119-08134

9011910111

main90119-10111

9011910229

main90119-10229

9011910825

main90119-10825

9016740044

main90167-40044

9017908149

main90179-08149

9017911010

main90179-11010

23 parts on this diagram · 7 diagrams in section
