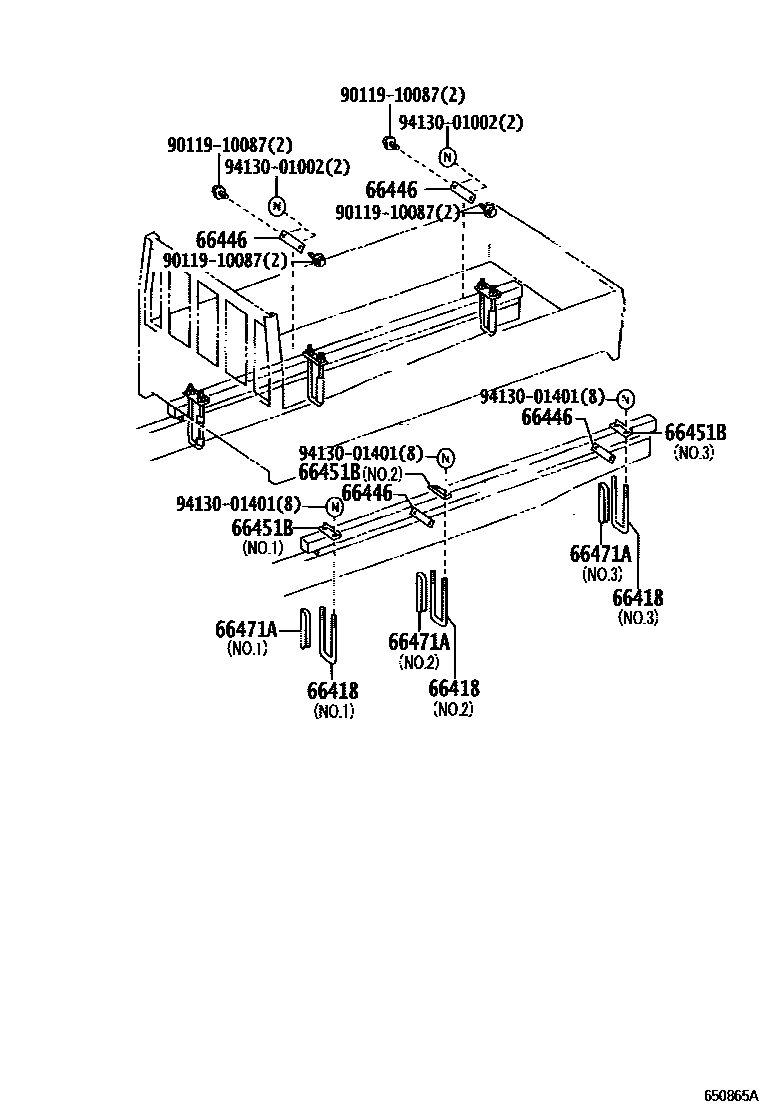

REAR BODY MOUNTING

0001 1 0002 1 0003 1

66418BOLT, MOUNTING

main90031-17020×2iXKU424200406-200610

main90031-17021×2iXKU424200610

main90031-17022×2iXKU424200406-200610

main90031-17024×4iXKU424200610

main90117-12037×2iXKU414..30T200610

main90117-12039×2iXKU424200406-200610

main90117-12041×2iXKU414..30T200610

main90117-12045×2iXKU414..20T200610

main90117-12047×2iXKU414..20T200610

main90117-14074×2iXKU414..30T200610

main90117-14075×2iXKU414..20T200610

66446BRACE, FRAME FLOOR

main66446-37060×4iXKU424200610

main66446-92700×2iXKU414..20T200406-200610

main66446-92803×2iXKU414..30T200610

main66447-92802×2iXKU414200610

66451BPLATE, U BOLT

main66451-37030×2iXKU414200610-201106

main66451-37040×4iXKU424200406-200610

66471AREINFORCEMENT, FRAME U BOLT

main66405-37040×2iXKU414200610

main66405-37050×2iXKU414200610

main66405-37070×2iXKU414200610

main66405-37130×2iXKU424200406-200610

main66471-37060×3iXKU424200610

main66471-37070iXKU424200406-200610

main66471-37080×2iXKU424200610

9011910087

main90119-10087

9413001002

main94130-01002

9413001401

main94130-01401

7 parts on this diagram · 3 diagrams in section
