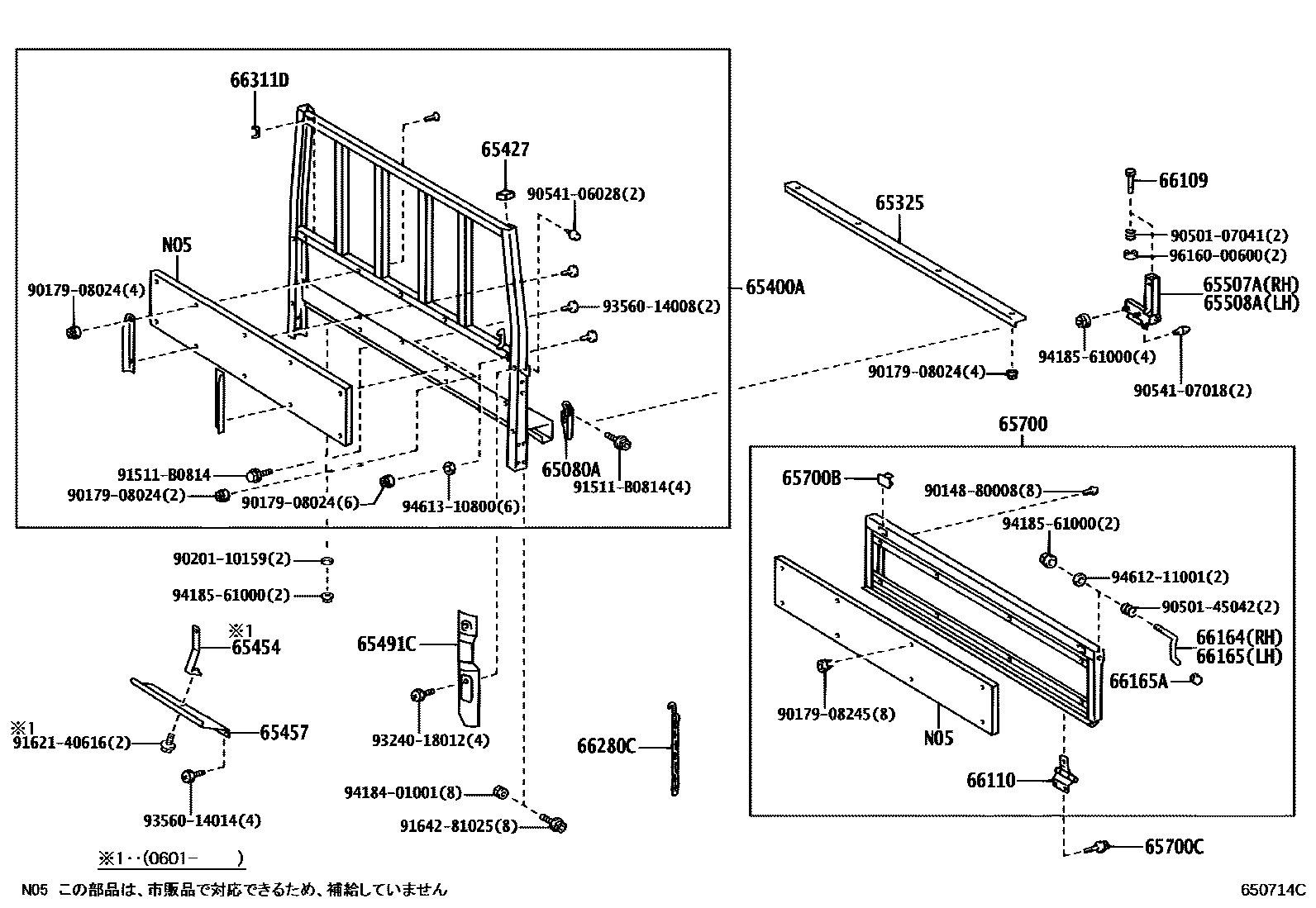

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701×2iXKU424200406-200610

65325PLATE, FLOOR BOARD, FRONT

main65325-37050iXKU414200610

65400AGUARD ASSY, REAR BODY

main65400-37C20iXKU414..30T200406-200610

main65400-37D00iXKU414..20T200406-200610

main65400-37K30iXKU414..T4..30T..DCRTJ200801-201106

main65400-37K50iXKU414..T4..30T200610-200801

main65400-37K90iXKU414..20T200610-201106

main65400-3V250iXKU424200610-201106

main65400-3V270iXKU424200406-200610

65427COVER, GUARD FRAME

main65427-92800×2iXKU414200406-200610

65454STAY, BAFFLE DUST

main65454-37030iXKU414..20T200610

main65454-37040iXKU414..T4..30T..DCRTJ200801

65457PLATE, BAFFLE DUST REAR BODY

main65043-37010iXKU424200610

main65457-37230iXKU414200406-200512

main65457-37231iXKU414200601-200610

65491CPROTECTOR, GUARD FLAME, LOWER

main65481-37010iXKU414,424200406-200610

main65482-37010iXKU414,424200406-200610

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-37030iXKU424200610

main65507-37040iXKU414200610

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-37030iXKU424200406-200610

main65508-37040iXKU414200610

65700GATE ASSY, REAR BODY TAIL

main65700-37040iXKU414200610-201106

main65700-37120iXKU424200406-200610

65700BPLUG, HOLE(FOR TAIL GATE)

main90950-01430×2iXKU424200406-200610

65700CBOLT, W/WASHER(FOR TAIL GATE)

main90119-08464×8iXKU414200406-200610

66109HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER

main66193-37010iXKU414200406-200610

66110HINGE ASSY, TAIL GATE

main65535-37080×4iXKU424200406-200610

main66110-37010×4iXKU414200610-201012

main66110-37011×4iXKU414201101-201105

66164HANDLE, TAIL GATE LATCH, RH

main66264-37010iXKU414,424200406-200610

66165HANDLE, TAIL GATE LATCH, LH

main66265-37010iXKU414,424200406-200610

66165ACAP, GATE LATCH HANDLE

main66165-87402×2iXKU414,424200912

main66165-92701×2iXKU414,424..DCRTJ;XKU414..6FC..DCRUE200610-200912

66280CCHAIN ASSY, TAIL GATE

main66280-37020×2iXKU424200406-200610

66311DHOOK, ROPE

main66312-37030×2iXKU414200406-200610

9014880008

main90148-80008

9017908024

main90179-08024

9017908245

main90179-08245

9020110159

main90201-10159

9050107041

main90501-07041

9050145042

main90501-45042

9054106028

main90541-06028

9054107018

main90541-07018

91511B0814

main91511-B0814

9162140616

main91621-40616

9164281025

main91642-81025

9324018012

main93240-18012

9356014008

main93560-14008

9356014014

main93560-14014

9418401001

main94184-01001

9418561000

main94185-61000

9461211001

main94612-11001

9461310800

main94613-10800

9616000600

main96160-00600

38 parts on this diagram · 2 diagrams in section
