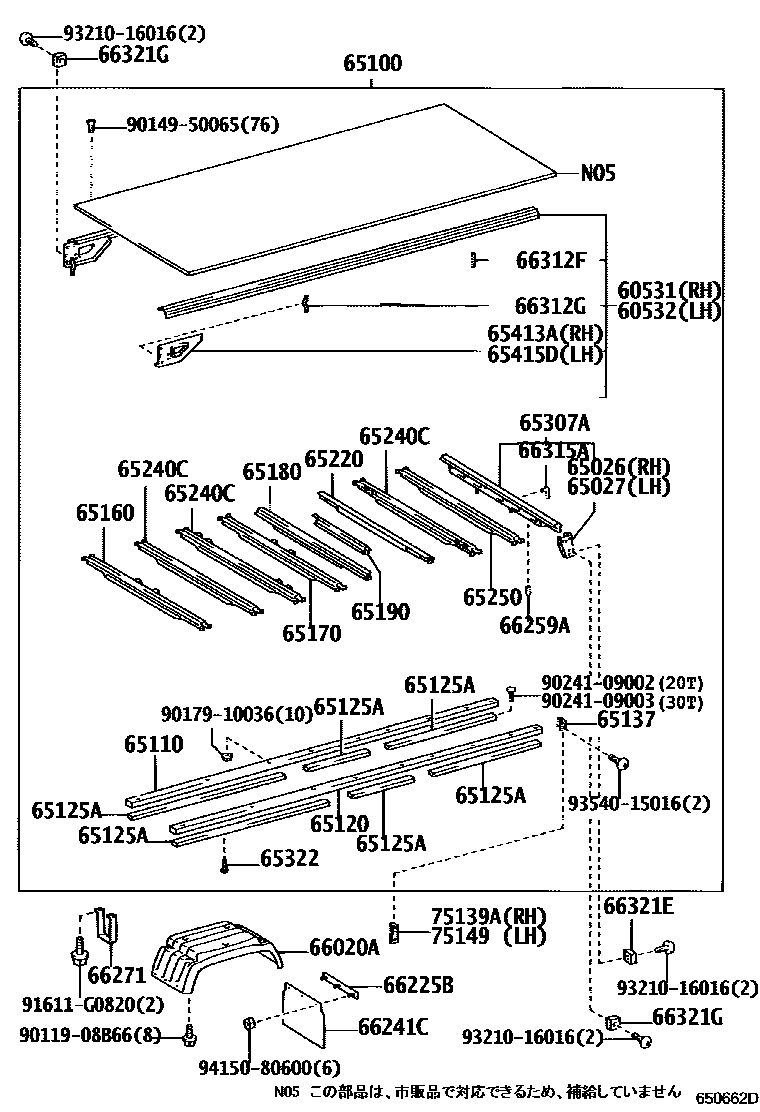

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1

60531FRAME SUB-ASSY, FLOOR SIDE, RH

main60531-37870iXKU424200610

main65303-3V180iXKU414200406-200610

60532FRAME SUB-ASSY, FLOOR SIDE, LH

main60532-37870iXKU424200610

main65304-3V180iXKU414200610

65026BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH

main65026-37030iXKU414200406-200610

main65026-37040iXKU424200610

65027BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH

main65027-37030iXKU414200406-200610

main65027-37040iXKU424200610

65100FLOOR ASSY, REAR BODY

main60530-3V030iXKU424200406-200610

***

main60530-3V050iXKU424200610-201106

main65100-37F80iXKU414..30T200406-200505

***

main65100-37F90iXKU414..20T200406-200505

***

main65100-37P90iXKU414..30T200505-200610

***

main65100-37Q00iXKU414..20T200505-200610

***

65110SILL ASSY, MAIN, RH

main65110-37D00iXKU414..30T200406-200610

main65110-37D10iXKU414..20T200610

main65110-3V500iXKU424200406-200610

main65110-3V510iXKU424200610

65120SILL ASSY, MAIN, LH

main65120-37D00iXKU414..30T200406-200610

main65120-37D10iXKU414..20T200610

main65120-3V500iXKU424200406-200610

main65120-3V510iXKU424200610

65125ASHIM, MAIN SILL, LOWER NO.1

main65125-37550×4iXKU424200610

main65125-37560×4iXKU424200406-200610

main65125-37600iXKU424200610

main65125-37610iXKU424200406-200610

main65126-37070iXKU424200406-200610

main65126-37080iXKU424200610

main65127-37310×2iXKU414..30T200610

main65127-37360×2iXKU414..20T200406-200504

main65127-37460iXKU414..30T200505-200610

main65127-37550iXKU414..20T200505-200610

main65127-37560×2iXKU414..20T200610

main65127-37570×2iXKU414..30T200406-200504

65137COVER, MAIN SILL END

main65137-37020×2iXKU414..20T200505-200610

main65137-37030×2iXKU414..30T200406-200504

main65137-37070×2iXKU424200610

main65137-37080×2iXKU424200406-200610

65160SILL ASSY, CROSS, NO.2

main65161-37150×4iXKU424200610

main65250-37340iXKU414200610-201106

65170SILL ASSY, CROSS, NO.2

main65171-37040×2iXKU424200610

main65220-37290iXKU414200406-200610

65180SILL ASSY, CROSS, NO.4

main65180-37500iXKU414200406-200610

main65181-37240×2iXKU424200610

65190SILL ASSY, CROSS, NO.5

main65190-37050iXKU414200406-200610

main65191-37050iXKU424200610

65220SILL ASSY, CROSS, NO.4

main65180-37560iXKU414200406-200610

main65191-37090iXKU424200610

main65220-37290iXKU414200610-201106

65240CSILL ASSY, CROSS, NO.9

main65240-37291iXKU424200610

main65240-37340iXKU414200406-200610

main65240-37350×3iXKU414..20T200610

65250SILL ASSY, CROSS, NO.2

main65250-37340iXKU414200610

65307AFRAME SUB-ASSY, FLOOR, REAR

main65307-37280iXKU424200610

main65307-37340iXKU414200406-200504

main65307-37640iXKU414200505-200610

65322NAIL

main65321-92700×15iXKU414..20T200610

main65322-92820×15iXKU414..30T200610

sub90290-05004

main90032-82001×26iXKU424200406-200610

main90032-82002×24iXKU424200802-200808

main90290-03001iXKU424200610

65413ABRACKET, GUARD FRAME, RH

main65413-37030iXKU414200406-200610

main65413-37080iXKU424..DCRTJ200610

65415DBRACKET, GUARD FRAME, LH

main65415-37010iXKU414200406-200610

main65415-37060iXKU424..DCRTJ200610

66020AFENDER ASSY, REAR NO.2 LH

main65349-37010×2iXKU414200406-200610

sub65349-37040

66225BSUPPORT, BUFFLE RUBBER

main66242-37190iXKU424200610

main66242-37230×2iXKU414200406-200610

66241CBUFFLE, RUBBER

main66241-37A00iXKU414..T4..30T200801-200807

main66241-37A01iXKU414..30T200807-200904

main66241-37A02iXKU414..30T200905

main66241-37B00iXKU414..T4..30T200610-200801

main66241-37B01iXKU414..20T200807-200904

main66241-37B02iXKU414..20T200905

main66241-37B10iXKU424200610-200904

main66241-37B11iXKU424200905

main66241-3V240×2iXKU414..20T200406-200610

main66241-3V250×2iXKU414..30T200406-200610

main66241-3V400×2iXKU414..20T200406-200610

main66241-3V410×2iXKU414..30T200406-200610

66259ACOVER, REAR BODY FLOOR, REAR

main66259-37010×2iXKU414200406-200504

66271STEP, REAR BODY

main66271-37010iXKU414200505-200610

main66271-37020iXKU424200610

66312HOOK, ROPE, NO.2

main66301-37010×7iXKU424200406-200610

66312FHOOK, ROPE, NO.2

main66311-37020×18iXKU414200406-200610

66312GHOOK, ROPE, NO.2

main66312-37020×2iXKU414200406-200610

66315AHOOK, ROPE

main66315-37010×4iXKU414200406-200610

66321EBUMPER, GATE RUBBER

main66303-87403×6iXKU424200610

main66321-92803×2iXKU414200406-200610

66321GBUMPER, GATE RUBBER

main66321-92805×4iXKU414200406-200610

75139ABRACKET, REFLEX REFLECTOR, RH

main75139-37040iXKU414200406-200610

75149BRACKET, REFLEX REFLECTOR, LH

main75149-37020iXKU414200406-200610

9011908B66

main90119-08B66

9014950065

main90149-50065

9017910036

main90179-10036

9024109002

main90241-09002

9024109003

main90241-09003

91611G0820

main91611-G0820

9321016016

main93210-16016

9354015016

main93540-15016

9415080600

main94150-80600

42 parts on this diagram · 3 diagrams in section
