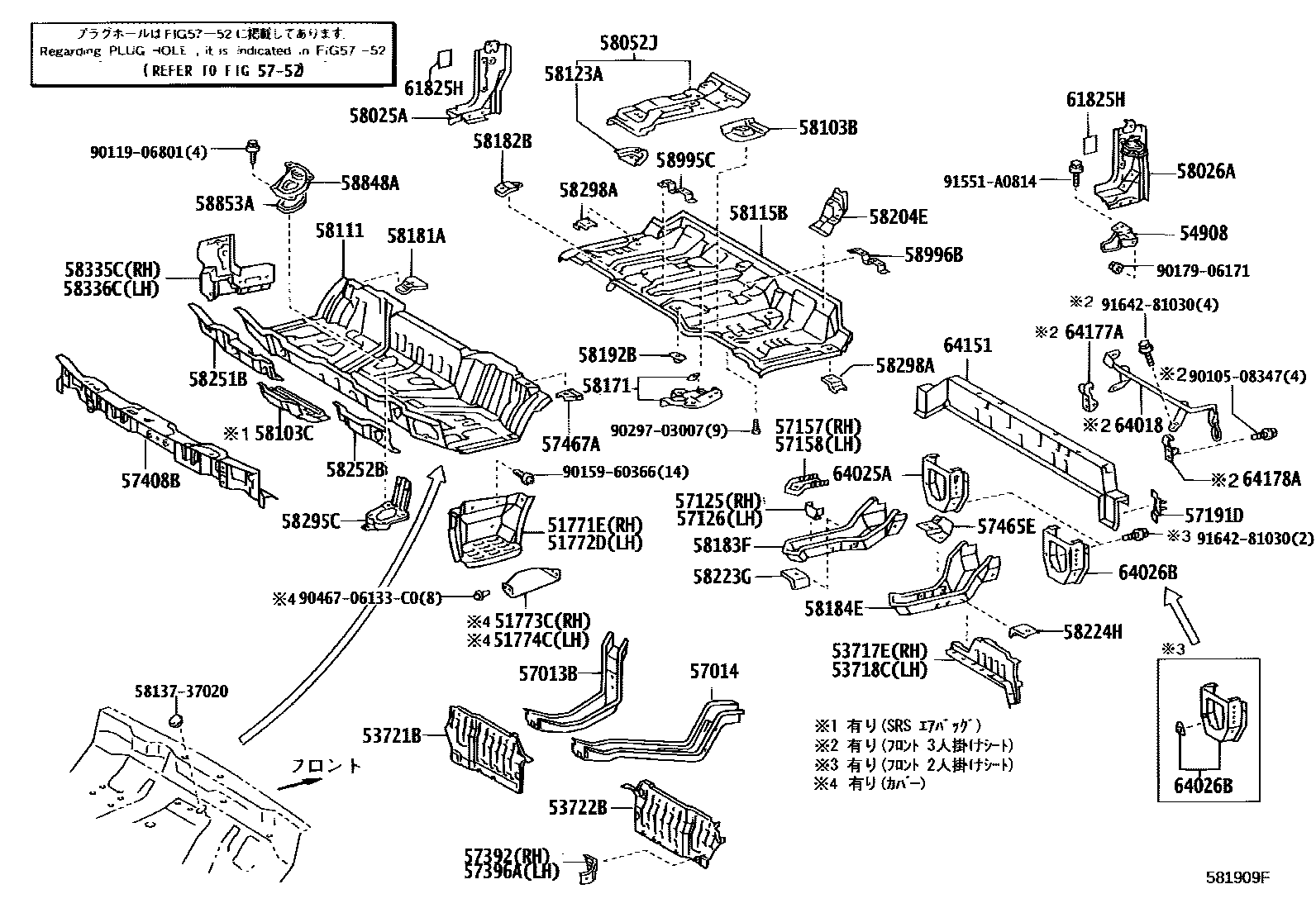

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

51771EPLATE, STEP, RH

main51771-37110iXKU414,424200310-200311

main51771-37220iXKU414,424200311-200610

main51771-37240iXKU414,424200610

51772DPLATE, STEP, LH

main51772-37090iXKU414,424200310-200311

main51772-37140iXKU414,424200311-200610

main51772-37160iXKU414,424200610

51773CCOVER, STEP PLATE, RH

main51773-37030iXKU414,424200310-200610

51774CCOVER, STEP PLATE, LH

main51773-37030iXKU414,424200310-200610

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-37180iXKU414,424200310-200610

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37140iXKU414,424200310-200610

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37070iXKU414,424200310-200610

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37050iXKU414,424200310-200610

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37020iXKU414,424200310-200610

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37240iXKU414,424200310-200610

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37070iXKU414,424200310-200610

57125BRACKET, FRONT SIDE MEMBER, RH

main57125-37010iXKU414,424200310-200610

57126BRACKET, FRONT SIDE MEMBER, LH

main57126-37020iXKU414,424200310-200610

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-37030iXKU414,424200310-200610

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-37030iXKU414,424200310-200610

57191DBRACKET, FLOOR NO.1 CROSSMEMBER

main57191-37010iXKU414,424200610

57392PLATE, FRONT STEP, NO.2 RH

main57392-37020iXKU414,424200610

57396APLATE, FRONT STEP, NO.2 LH

main57396-37020iXKU414,424200310-200610

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37360iXKU414,424200310-200610

main57408-37420iXKU414..6FC200801

main57408-37430iXKU414,424..6F200610

57465ERETAINER, BELT ANCHOR, NO.2

main57405-37060iXKU414,424200310-200610

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-37010iXKU414,424200310-200312

main57467-37011iXKU414,424200312-200610

5752HOLE PLUG

→ Go to FIG 57-52

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58043-37070iXKU414,424200310-200610

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58044-37080iXKU414,424200310-200610

main58044-37100iXKU414,424200310-200610

58052JREINFORCEMENT SUB-ASSY, ENGINE SUB COVER

main58052-37010iXKU414,424200310-200610

58103BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH

main58103-37070iXKU414,424200610

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-37040iXKU414,424200610

58111PAN, FRONT FLOOR

main58111-37341iXKU414,424200310-200607

main58111-37342iXKU414,424200607-200610

main58111-37361iXKU414,424200310-200601

main58111-37362iXKU414,424200602-200610

main58111-37560iXKU414,424200610-201106

58115BPANEL, FRONT FLOOR, REAR

main58115-37032iXKU414,424200310-200610

main58115-37042iXKU414,424200610

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-37010iXKU414,424200310-200610

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-37030iXKU414,424200310-200610

58181ARETAINER, SEAT RAIL, FRONT

main58181-37070iXKU414,424200310-200610

58182BRETAINER, SEAT RAIL, FRONT LH

main58182-37010iXKU414,424200310-200610

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37081iXKU414,424200310-200610

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-37101iXKU414,424200310-200610

58192BPLATE, FRONT FLOOR, REAR

main58192-37020×2iXKU414,424200310-200610

58204EBRACKET SUB-ASSY, FRONT SEAT

main58204-37020iXKU414,424200310-200610

58223GREINFORCEMENT, SEAT SET, NO.1

main58223-37030iXKU414,424200310-200610

58224HREINFORCEMENT, SEAT SET, NO.2

main58224-37010iXKU414,424200310-200610

58251BBRACE, FLOOR PANEL, FRONT

main58251-37040iXKU414,424200310-200609

main58251-37041iXKU414,424200609-200610

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37050iXKU414,424200310-200610

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37060iXKU414,424200610

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010×2iXKU414,424200610

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37040iXKU414,424200310-200610

main58335-37041iXKU414,424200808

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37031iXKU414,424200310-200610

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iXKU414,424200310-200610

58853APACKING, SHIFT LEVER HOLE

main58853-37020iXKU414,424200310-200610

58995CBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-37030iXKU414,424200310-200610

58996BBRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-37040iXKU414,424200310-200610

61825HPAD, NOISE SHUTTER, NO.2

main61825-34010×2iXKU414,424200310-200610

64018BAR SUB-ASSY, BODY

main64018-37100iXKU414,424200310-200610

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64171-37011iXKU414,424200610

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37100iXKU414,424200310-200610

main64172-37022iXKU414,424200310-200610

64151FRAME, BACK

main64151-37270iXKU414,424200310-200610

main64151-37450iXKU414,424200610

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-37030iXKU414,424200310-200604

main64177-37031iXKU414,424200605-200610

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-37030iXKU414,424200310-200604

main64178-37031iXKU414,424200605-200610

5813737020BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4

main58137-37020

9010508347

main90105-08347

9011906801

main90119-06801

9015960366

main90159-60366

9017906171

main90179-06171

9029703007

main90297-03007

9046706133C0

main90467-06133C0

91551A0814

main91551-A0814

9164281030

main91642-81030

65 parts on this diagram · 3 diagrams in section
