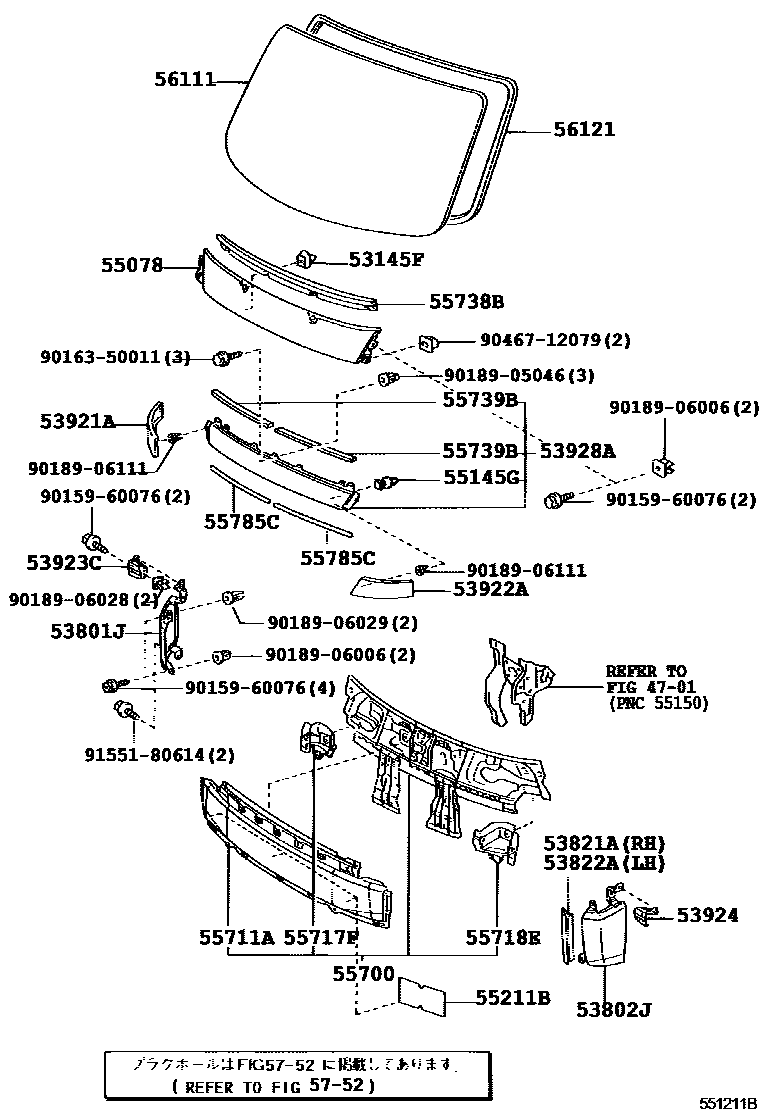

FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1��������������=��������� 0003 1��������������=��������������0004 1TOYOTA 0005 1HINO

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

53145FCLIP, RADIATOR GRILLE GARNISH

main90467-08208×2iXKU414,424200610

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37021iXKU414,424200610

main53801-37041iXKU414,424200610

main53801-37061iXKU414,424200310-200610

main53801-37071iXKU414,424200310-200610

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37021iXKU414,424200610

main53802-37041iXKU414,424200610

main53802-37061iXKU414,424200310-200610

main53802-37071iXKU414,424200310-200610

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37070iXKU414,424200610

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37070iXKU414,424200310-200610

53921APANEL, FRONT VALANCE, RH

main53921-37010iXKU414,424200310-200610

main53921-37011iXKU414,424200909

53922APANEL, FRONT VALANCE, LH

main53922-37010iXKU414,424200310-200610

main53922-37011iXKU414,424200909

53923CSUPPORT, FRONT SIDE GARNISH, RH

main53923-25010iXKU414,424200310-200610

53924PLATE, NOISE SHUTTER SUPPORT, NO.2

main53924-25010iXKU414,424200310-200610

53928AGARNISH, FRONT PANEL, CENTER

main53928-37040iXKU414,424200310-200404

main53928-37041iXKU414,424200405-200610

55078COVER SUB-ASSY, FRONT PANEL

main55078-37080iXKU414,424200310-200610

55145GCLIP, RADIATOR GRILLE GARNISH

main53145-27010×9iXKU414,424200310-200404

55211BSILENCER, FRONT PANEL

main55211-37030×3iXKU414,424200310-200403

55700PANEL ASSY, FRONT

main55700-37143iXKU414,424200310-200610

main55700-37330iXKU414,424200801

55711APANEL, FRONT, LOWER

main55711-37060iXKU414,424200310-200409

main55711-37061iXKU414,424200409-200610

55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH

main55717-37020iXKU414,424200310-200610

55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH

main55718-37010iXKU414,424200610

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37060iXKU414,424200610

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37080×2iXKU414,424200310-200404

55785CPAD, FRONT PANEL COVER

main55785-37030×2iXKU414,424200310-200610

56111GLASS, WINDSHIELD

main56101-89103iXKU414,424200610

main56111-37150iXKU414,424200811-201005

main56111-37240iXKU414,424200609-200610

56121WEATHERSTRIP, WINDSHIELD

main56121-37050iXKU414,424200310-200610

main56121-37060iXKU414,424200610

5752HOLE PLUG

→ Go to FIG 57-52

9015960076

main90159-60076

9016350011

main90163-50011

9018905046

main90189-05046

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9018906111

main90189-06111

9046712079

main90467-12079

9155180614

main91551-80614

33 parts on this diagram · 5 diagrams in section
