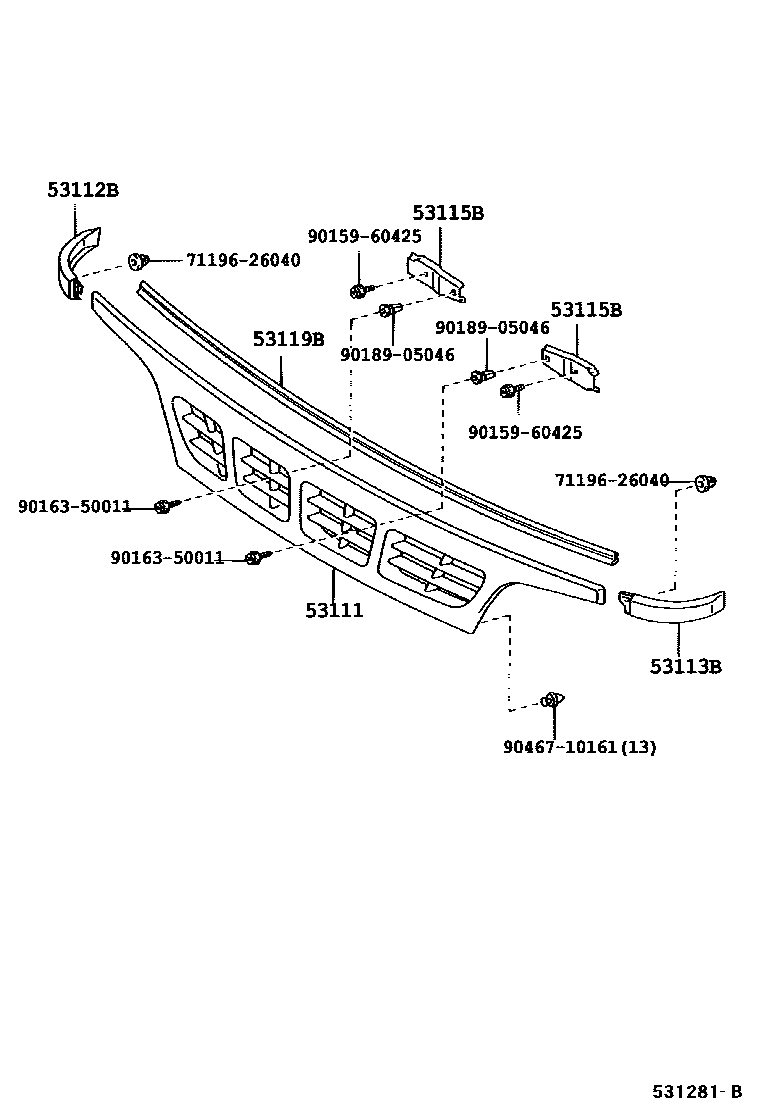

RADIATOR GRILLE

0001 1 0002 1���(��� ����) 0003 1

53111GRILLE, RADIATOR

main53111-37460iXKU414,424200310-200610

main53111-37470iXKU414,424200310-200610

main53111-37480-A0iXKU414,424200310-200610

WHITE,058

main53111-37480-B0iXKU414,424200310-200610

SILVER ME.,199

main53111-37560iXKU414,424200310-200610

main53111-37730iXKU414,424200610-201106

main53111-37740-A0iXKU414,424200610-201106

WHITE,058

main53111-37740-B0iXKU414,424200610-201106

SILVER ME.,199

main53111-37740-B1iXKU414..T4200610-201106

COBALT GREEN,9A7

main53111-37740-H0iXKU414,424200610-201106

TURQUOISE,766

main53111-37740-J0iXKU414,424200610-201106

BLUE,8P0

main53111-37740-K0iXKU414..6F200610-201106

ONLYJAPANESE,9E2

main53111-37750iXKU414,424200610-201106

53112BGRILLE, RADIATOR SIDE, RH

main53112-37070iXKU414,424200310-200610

main53112-37080iXKU414,424200310-200610

main53112-37090-A0iXKU414,424200310-200610

WHITE,058

main53112-37090-B0iXKU414,424200310-200610

SILVER ME.,199

main53112-37160iXKU414,424200310-200610

53113BGRILLE, RADIATOR SIDE, LH

main53113-37070iXKU414,424200310-200610

main53113-37080iXKU414,424200310-200610

main53113-37090-A0iXKU414,424200310-200610

WHITE,058

main53113-37090-B0iXKU414,424200310-200610

SILVER ME.,199

main53113-37160iXKU414,424200310-200610

53115BBRACKET, RADIATOR GRILLE

main53115-37050×2iXKU414,424200310-200610

main53115-37070×2iXKU414,424200610

53119BPROTECTOR, RADIATOR GRILLE

main53119-37050iXKU414,424200310-200610

main53119-37070iXKU414,424200310-200610

main53119-37090-B0iXKU414,424..T3; XKU414..T3..6F; XKU414..T4200610-201106

main53119-37110-C0iXKU414..T3..6F; XKU414..T4; XKU424;XKU414..6FC200610-201106

7119626040CLIP(FOR REAR SPOILER)

main71196-26040

9015960425

main90159-60425

9016350011

main90163-50011

9018905046

main90189-05046

9046710161

main90467-10161

10 parts on this diagram · 3 diagrams in section
