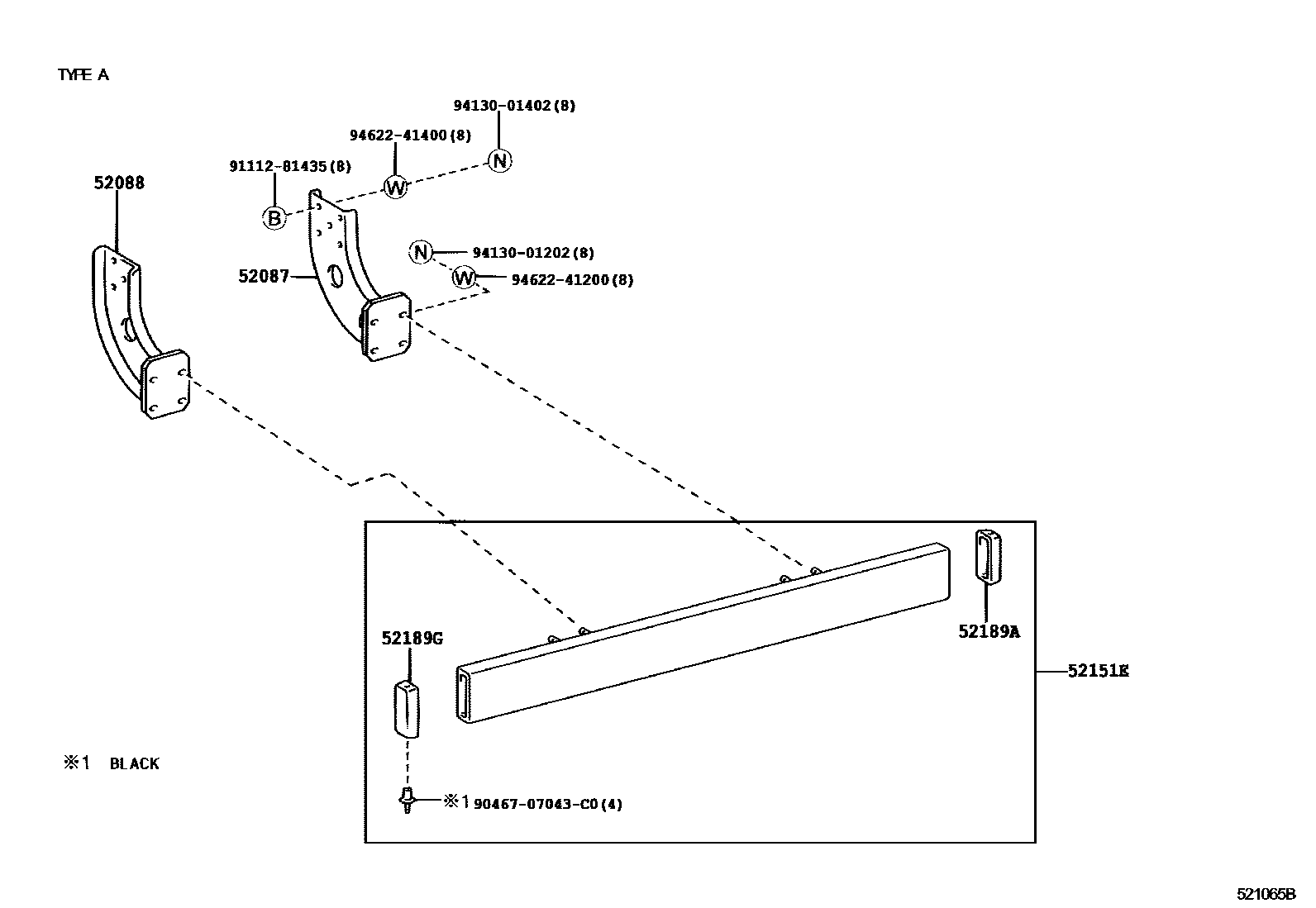

REAR BUMPER & BUMPER STAY

0001 1TYPE A 0003 1TYPE B 0004 1 0005 1

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-37090iXKU414,424..30T,35T200310-200610

main52152-37050iXKU414,424200406-200505

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52151-37080iXKU414,424200406-200505

main52152-37060iXKU414,424200610

52151EBAR, REAR BUMPER

main52105-37120iXKU414,424..30T,35T200310-200406

main52105-37140iXKU414,424..30T,35T200406-200505

main52105-37210iXKU414,424..30T,35T200505-200610

main52105-37330iXKU414..20T200610

main52105-37360iXKU414,424..30T200610

main52151-37110iXKU414,424200406-200505

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-37030iXKU414,424..30T,35T200310-200406

main52189-37040iXKU414,424..30T,35T200406-200505

main52189-37050iXKU414,424200610

52189GPROTECTOR, REAR BUMPER ARM EDGE, LH

main52189-37030iXKU414,424..30T,35T200310-200406

main52189-37040iXKU414,424..30T,35T200406-200505

main52189-37050iXKU414,424200610

9046707043C0

main90467-07043C0

9111281435

main91112-81435

9413001202

main94130-01202

9413001402

main94130-01402

9462241200

main94622-41200

9462241400

main94622-41400

11 parts on this diagram · 4 diagrams in section
