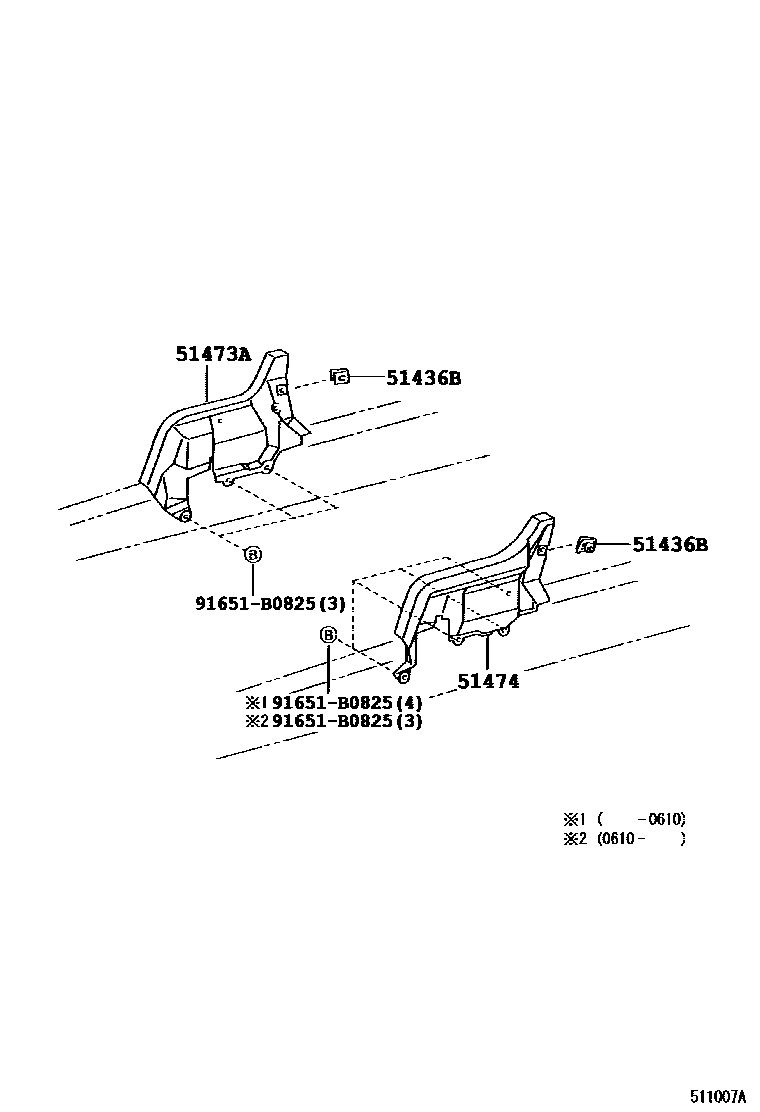

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37080×2iXKU414,424200310-200610

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37160iXKU414,424200310-200610

main51473-37250iXKU414,424200610

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37140iXKU414,424200310-200610

main51474-37200iXKU414,424200610

91651B0825

main91651-B0825

4 parts on this diagram · 2 diagrams in section
