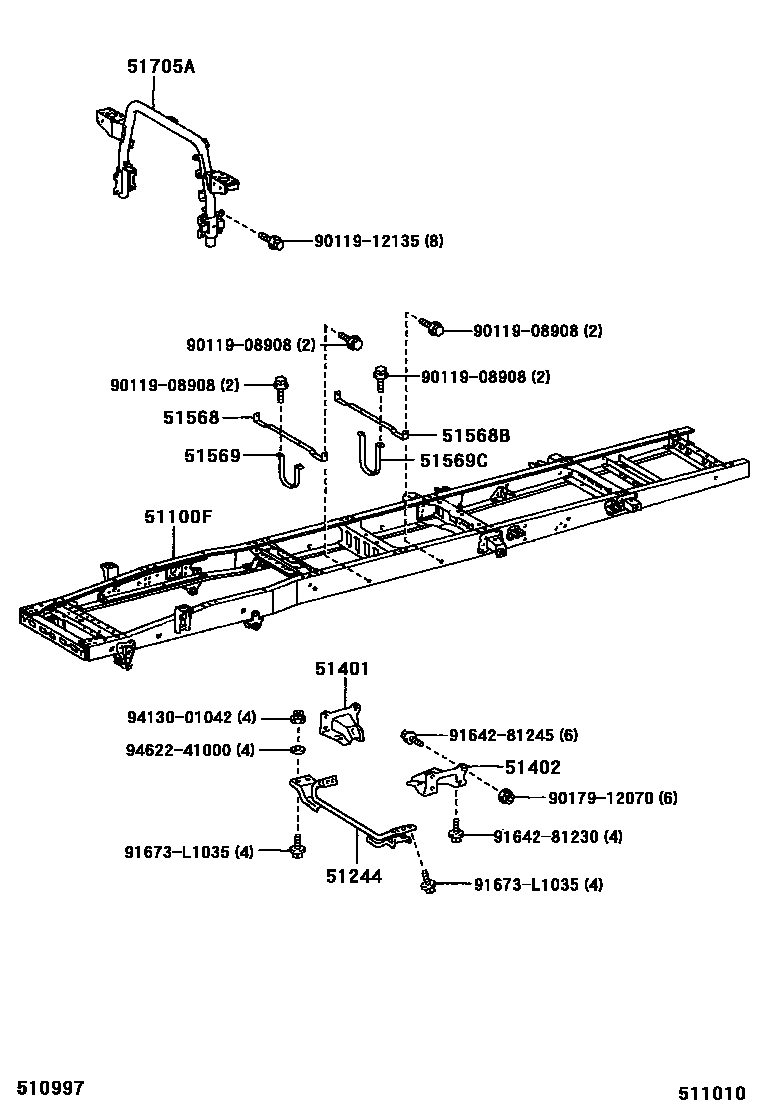

FRAME

0001 1 0002 1 0003 1

51100FFRAME SUB-ASSY

main51001-37D20iXKU414..30T200310-200505

main51001-37D21iXKU414..30T200505-200610

main51001-37D22iXKU414..6F..30T200610

main51001-37M60iXKU414..20T200310-200505

main51001-37M61iXKU414..20T200505-200610

main51001-37M62iXKU414..20T200610

main51001-37M70iXKU424200310-200505

main51001-37M71iXKU424200505-200610

main51001-37M72iXKU424200610

main51001-3VC90iXKU414..6FC200801

51244MEMBER, ENGINE FRONT SUPPORT

main51021-37020iXKU414,424200310-200610

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-37180iXKU414,424200310-200610

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-37180iXKU414,424200310-200610

51568BRACKET, PROPELLER SHAFT GUARD

main51568-37230iXKU414,424200310-200406

sub51568-37231

main51568-37231iXKU414,424200406-200610

51568BBRACKET, PROPELLER SHAFT GUARD

main51568-37360iXKU414,424200310-200610

51569GUARD, PROPELLER SHAFT

main51569-37141iXKU414,424200406-200610

main51569-37180iXKU414,424200310-200406

main51569-37310iXKU414,424200610

51569CGUARD, PROPELLER SHAFT

main51569-37200iXKU414200310-200406

main51569-37300iXKU414200310-200610

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-37410iXKU414,424200310-200610

sub51705-37412

main51705-37570iXKU414,424200610-201008

sub51705-37572

main51705-37571iXKU414,424201008-201102

sub51705-37573

main51705-37573iXKU414,424201102-201106

9011908908

main90119-08908

9011912135

main90119-12135

9017912070

main90179-12070

9164281230

main91642-81230

9164281245

main91642-81245

91673L1035

main91673-L1035

9413001042

main94130-01042

9462241000

main94622-41000

17 parts on this diagram · 3 diagrams in section
