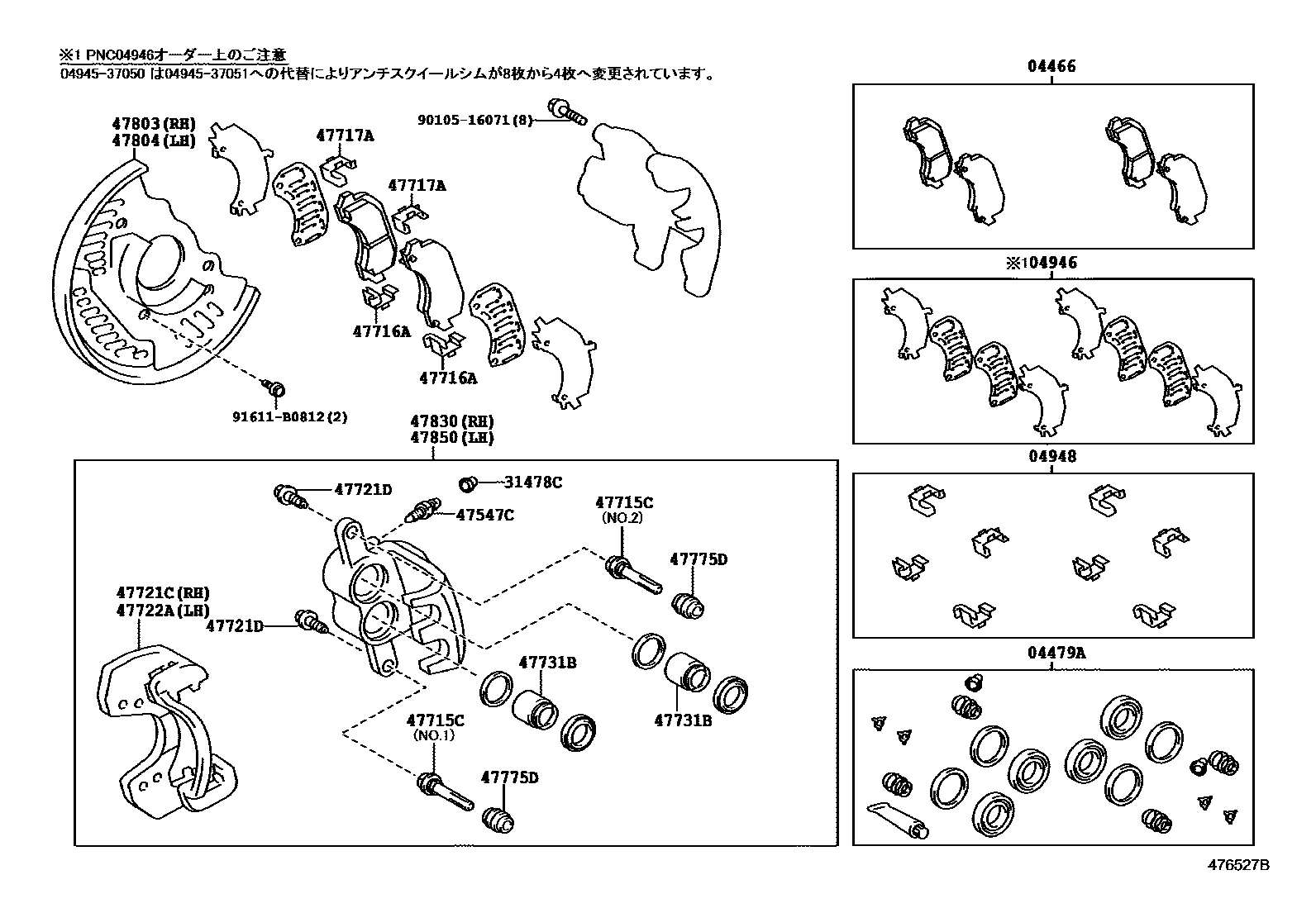

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04465-37090iXKU414,424..30T,35T200310-201106

main04466-37100iXKU414..20T200610-201106

04479ACYLINDER KIT, DISC BRAKE, REAR

main04478-37090iXKU414,424..30T,35T200310-200610

main04478-37230iXKU414,424..30T200901

main04479-37220iXKU414..20T200610-200901

main04479-37260iXKU414,424..30T200610-200901

main04479-37290iXKU414..20T200901

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04945-37050iXKU414,424..30T200310-200812

main04946-37030iXKU414..20T200610-200901

main04946-37031iXKU414..20T200901

04948FITTING KIT, DISC BRAKE, REAR

main04947-37010iXKU414,424..30T,35T200310-200610

main04948-37010iXKU414,424200610

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-37030iXKU414,424200610

main31478-37040iXKU414,424..30T,35T200310-200610

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-37120iXKU414,424..30T,35T200310-200610

main47847-37030iXKU414,424200610

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47714-37120iXKU414,424..30T200310-200610

main47715-37120iXKU414,424..30T200310-200610

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-37120iXKU414,424..30T,35T200310-200610

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-37120iXKU414,424..30T,35T200310-200610

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-37010iXKU414,424..30T,35T200310-200610

main47821-37030iXKU414..20T200610

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-37120iXKU414,424..30T,35T200310-201106

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-37010iXKU414,424..30T,35T200310-200610

main47822-37030iXKU414..20T200610

47731BPISTON, REAR DISC BRAKE

main47731-37120iXKU414,424..30T,35T200310-200610

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-37120iXKU414,424..30T,35T200310-200901

main47775-37121iXKU414,424200901

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-37010iXKU414,424..30T,35T200310-201106

main47803-37020iXKU414..20T200610-201106

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-37010iXKU414,424..30T,35T200310-201106

main47804-37020iXKU414..20T200610-201106

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-37010iXKU414,424..30T,35T200310-200901

main47830-37011iXKU414,424..30T200901

main47830-37030iXKU414..20T200610-200901

main47830-37031iXKU414..20T200901

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-37010iXKU414,424..30T,35T200310-200901

main47850-37011iXKU414,424..30T200901

main47850-37030iXKU414..20T200610-200901

main47850-37031iXKU414..20T200901

9010516071

main90105-16071

91611B0812

main91611-B0812

20 parts on this diagram · 2 diagrams in section
