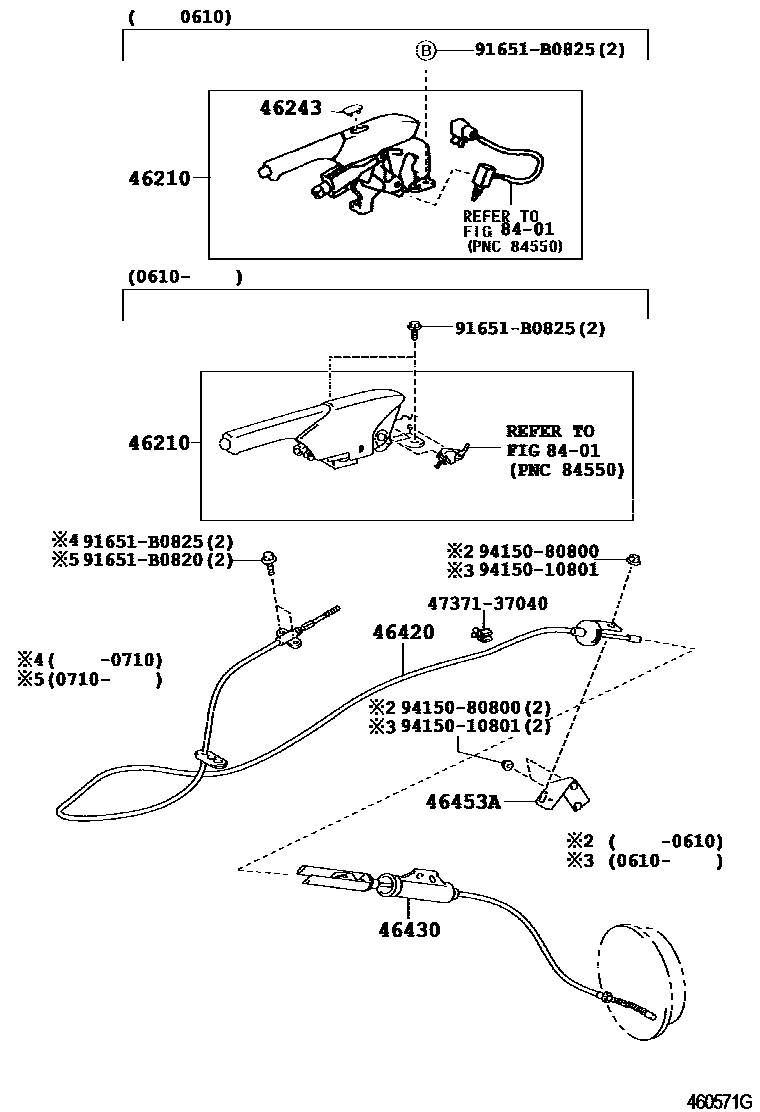

PARKING BRAKE & CABLE

0001 1 0003 1 0004 1 0006 1MYY6S

46210LEVER ASSY, PARKING BRAKE

main46210-37012-B0iXKU414,424200310-200610

main46210-37091-B0iXKU414,424200310-200610

DK.CHARCOAL,TRIM1#

main46210-37100-B0iXKU414,424200705-200912

sub46210-37101

main46210-37101-B0iXKU414,424201001-201106

sub46210-37240

sub46211-37070

main46210-37110-B0iXKU414,424200610-200912

DK.CHARCOAL,TRIM1#

sub46210-37111

main46210-37111-B0iXKU414,424201001-201106

DK.CHARCOAL,TRIM1#

sub46210-37250

sub46211-37080

46243COVER, PARKING BRAKE LEVER

main46243-37020-B0iXKU414,424200310-200610

DK.CHARCOAL,TRIM1#

sub46243-37020

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37450iXKU414,424200310-200610

main46420-37630iXKU414,424..DCRTJ;XKU414..6FC..DCRUE200610-200912

sub46420-37631

main46420-37631iXKU414,424200912

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37660iXKU414,424200310-200610

main46430-37890iXKU414..6FC200801-201106

main46430-37B20iXKU414,424..6F200610-200902

sub46430-37B21

main46430-37B21iXKU414,424..6F200903-201106

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37200iXKU414,424200310-200610

8401

4737137040BRACKET, CONNECTOR

main47371-37040

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9415010801

main94150-10801

9415080800

main94150-80800

11 parts on this diagram · 4 diagrams in section
