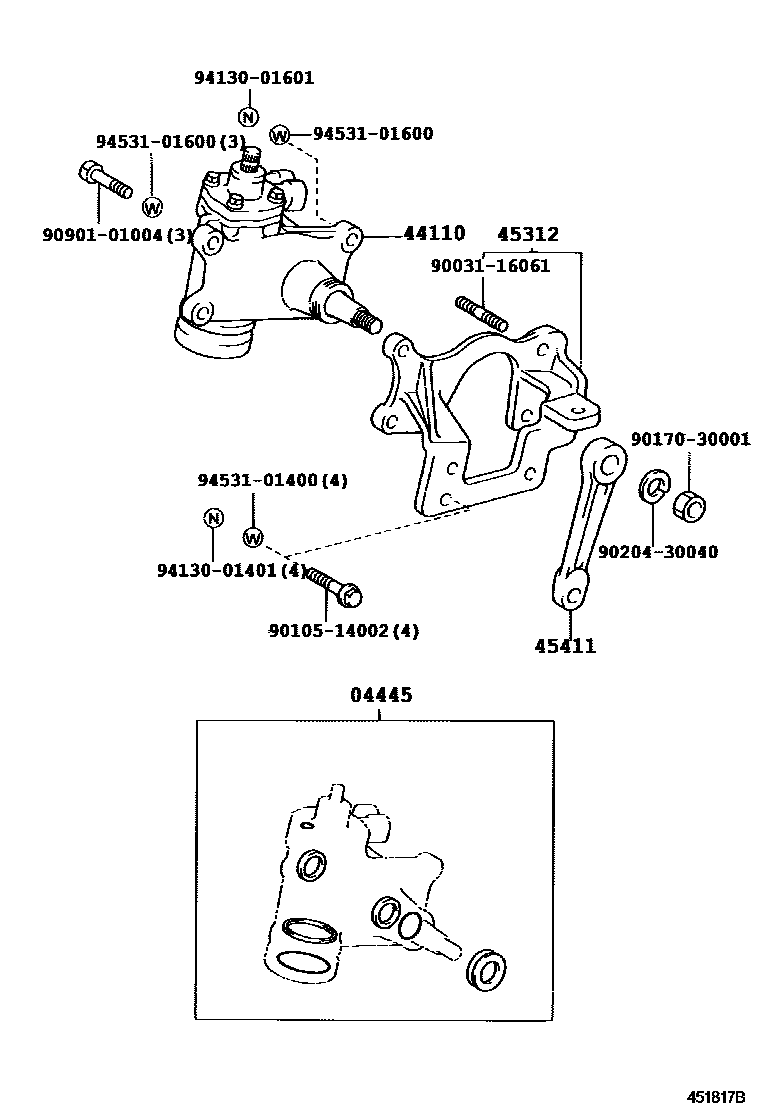

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-37060iXKU414,424200310-200610

44110GEAR ASSY, POWER STEERING

main44110-37160iXKU414,424..30T,35T200310-200610

main44110-37180iXKU414..20T200310-200610

main44110-37250iXKU414,424200610-201008

main44110-37251iXKU414,424201009

45312BRACKET, STEERING GEAR HOUSING

main45302-37010iXKU414,424200310-200610

45411ARM, PITMAN

main45411-37160iXKU414..20T200310-200610

main45411-37170iXKU414,424..30T,35T200310-200610

main45411-37320iXKU414,424..30T200610

main45411-37330iXKU414..20T200610

9003116061

main90031-16061

9010514002

main90105-14002

9017030001

main90170-30001

9020430040

main90204-30040

9090101004

main90901-01004

9413001401

main94130-01401

9413001601

main94130-01601

9453101400

main94531-01400

9453101600

main94531-01600

13 parts on this diagram · 7 diagrams in section
