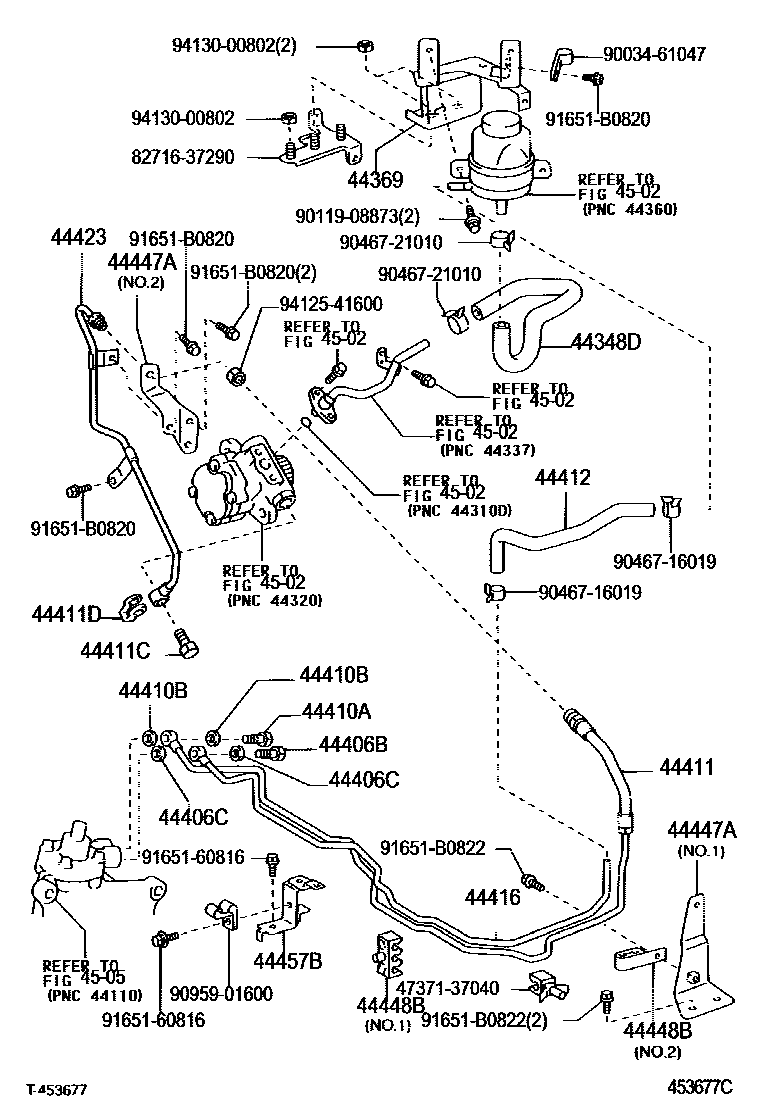

POWER STEERING TUBE
44348DHOSE, OIL RESERVOIR TO PUMP, NO.2
44369BRACKET, OIL RESERVOIR, NO.1
44406BBOLT, UNION(FOR RETURN TUBE)
44406CGASKET(FOR RETURN TUBE)
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
44410BGASKET(FOR PRESSURE FEED TUBE)
44411HOSE, PRESSURE FEED
44411CBOLT, UNION(FOR PRESSURE FEED HOSE)
44411DGASKET(FOR PRESSURE FEED HOSE)
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44423TUBE, OIL PUMP TO GEAR BOX
44447ABRACKET, HOSE SUPPORT, NO.1
44448BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1
44448BBRACKET, HOSE SUPPORT, NO.2
44457BBRACKET, POWER STEERING TUBE SUPPORT, NO.2
4502VANE PUMP & RESERVOIR (POWER STEERING)
4505FRONT STEERING GEAR & LINK
4737137040BRACKET, CONNECTOR
main47371-37040
8271637290BRACKET, WIRING HARNESS CLAMP, LH
main82716-37290
9003461047
main90034-61047
9011908873
main90119-08873
9046716019
main90467-16019
9046721010
main90467-21010
9095901600
main90959-01600
9165160816
main91651-60816
91651B0820
main91651-B0820
91651B0822
main91651-B0822
9412541600
main94125-41600
9413000802
main94130-00802
30 parts on this diagram · 2 diagrams in section
