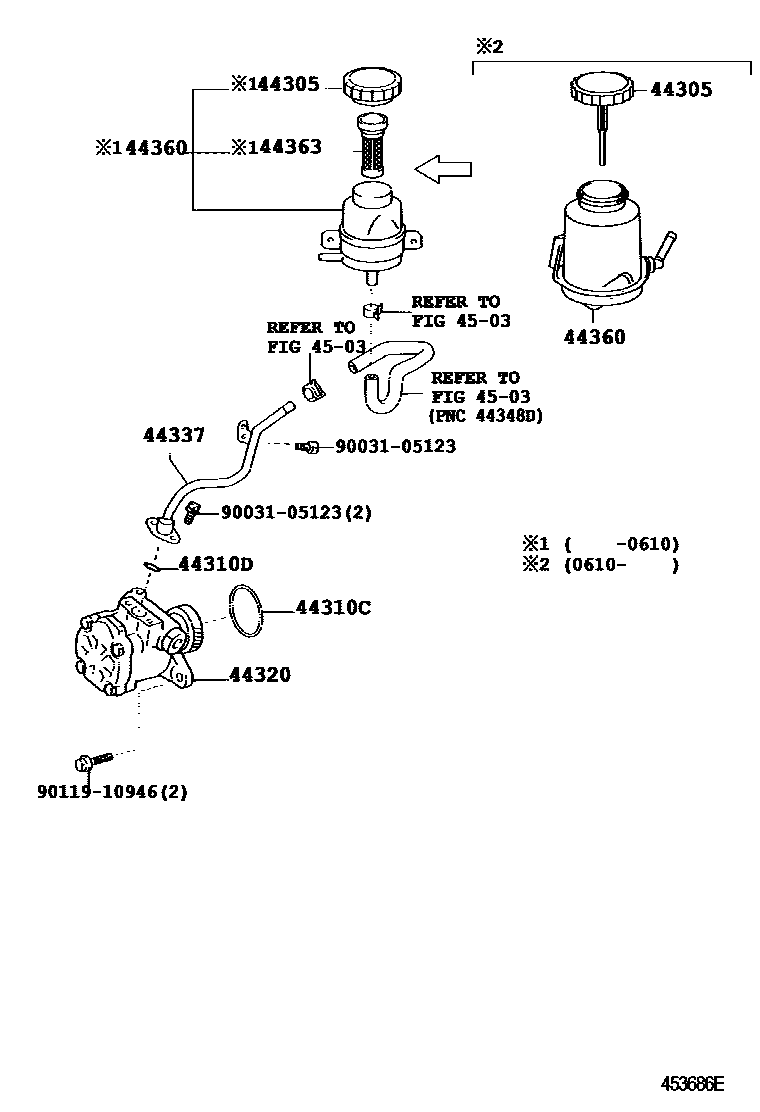

VANE PUMP & RESERVOIR (POWER STEERING)

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12030iXKU414,424200310-200610

sub44305-12040

main44305-37020iXKU414,424200610-200802

sub44305-37030

main44305-37030iXKU414,424200803

sub44305-37031

44310CRING, O(FOR VANE PUMP)

main90301-60002iXKU414,424200310-200610

44310DRING, O(FOR VANE PUMP UNION)

main90301-15019iXKU414,424200310-200610

44320PUMP ASSY, VANE

main44310-37170iXKU414..20T200310-200610

main44310-37180iXKU414,424..30T,35T200310-200610

main44310-37230iXKU414,424..30T200610

44337UNION, POWER STEERING SUCTION PORT

main44337-37260iXKU414,424200310-200610

main44337-37370iXKU414,424200610

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-37140iXKU414,424200310-200610

main44360-37190iXKU414,424200610

44363STRAINER, OIL(FOR VANE PUMP)

main44363-37130iXKU414,424200310-200610

4503

9003105123

main90031-05123

9011910946

main90119-10946

10 parts on this diagram · 1 diagram in section
