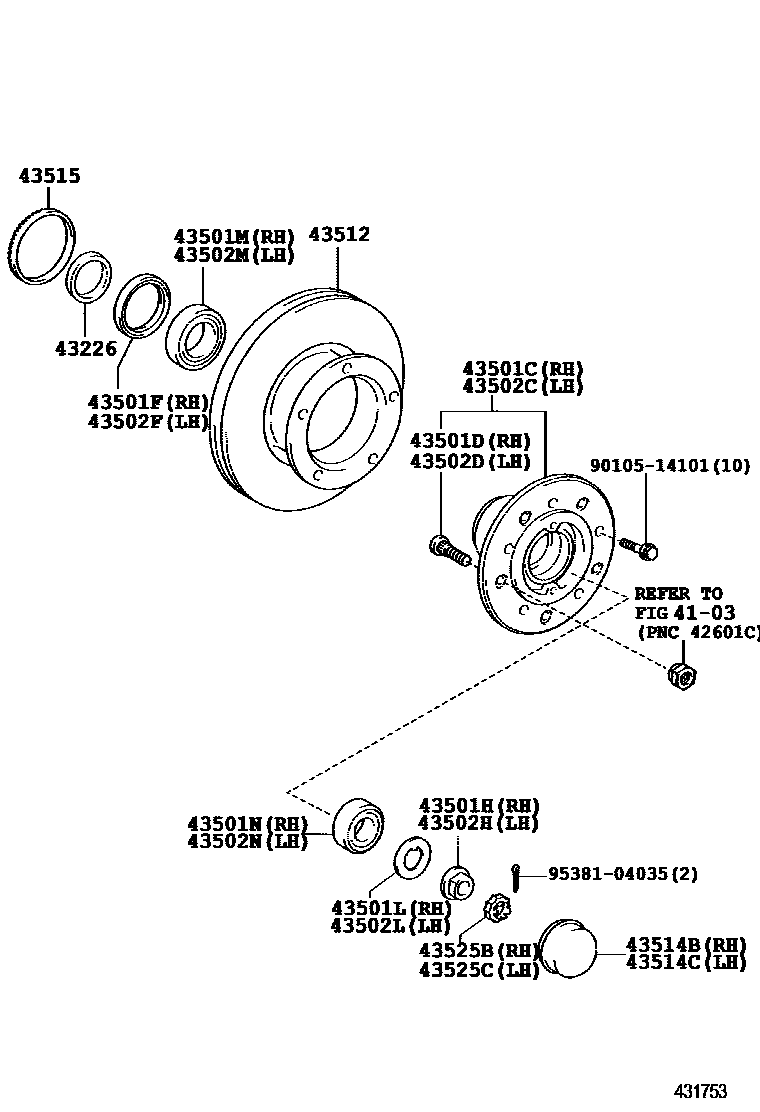

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43226SPACER, STEERING KNUCKLE

main43226-36010×2iXKU414,424..30T,35T200310-200610

main43226-37020×2iXKU414..20T200310-200610

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43501-37060iXKU414..20T200310-200610

main43501-37130iXKU414,424..30T,35T200310-200610

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071iXKU414,424200310-200610

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90033-19009iXKU414,424..30T,35T200310-200610

main90311-68002iXKU414..20T200310-200408

main90311-68003iXKU414..20T200408-200610

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28001iXKU414..20T200310-200610

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-29001iXKU414..20T200310-200610

main90214-33001iXKU414,424..30T200610

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iXKU414..20T200310-200610

main90368-50001iXKU414,424..30T,35T200310-200610

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90033-66032iXKU414,424..30T,35T200310-200610

main90366-35105iXKU414..20T200610

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-37060iXKU414..20T200310-200610

main43502-37130iXKU414,424..30T,35T200310-200610

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072iXKU414,424200310-200610

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90033-19009iXKU414,424..30T,35T200310-200610

main90311-68002iXKU414..20T200310-200408

main90311-68003iXKU414..20T200408-200610

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28001iXKU414..20T200610

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-29001iXKU414..20T200610

main90214-33001iXKU414,424..30T,35T200310-200610

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iXKU414..20T200610

main90368-50001iXKU414,424..30T,35T200310-200610

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90033-66032iXKU414,424..30T,35T200310-200610

main90366-35105iXKU414..20T200310-200610

43512DISC, FRONT

main43512-37090×2iXKU414..20T200310-200610

main43512-37120×2iXKU414,424..30T,35T200310-200610

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-37030iXKU414..20T200310-200610

main43514-37040iXKU414,424..30T200610

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-37030iXKU414..20T200310-200610

main43514-37040iXKU414,424..30T,35T200310-200610

43515ROTOR, SKID CONTROL, FRONT

main43515-37010×2iXKU414..20T200610

main43515-37030×2iXKU414,424..30T,35T200310-200610

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-37010iXKU414..20T200310-200610

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-37010iXKU414..20T200310-200610

9010514101

main90105-14101

9538104035

main95381-04035

24 parts on this diagram · 4 diagrams in section
