EPC Data

DISC WHEEL & WHEEL CAP

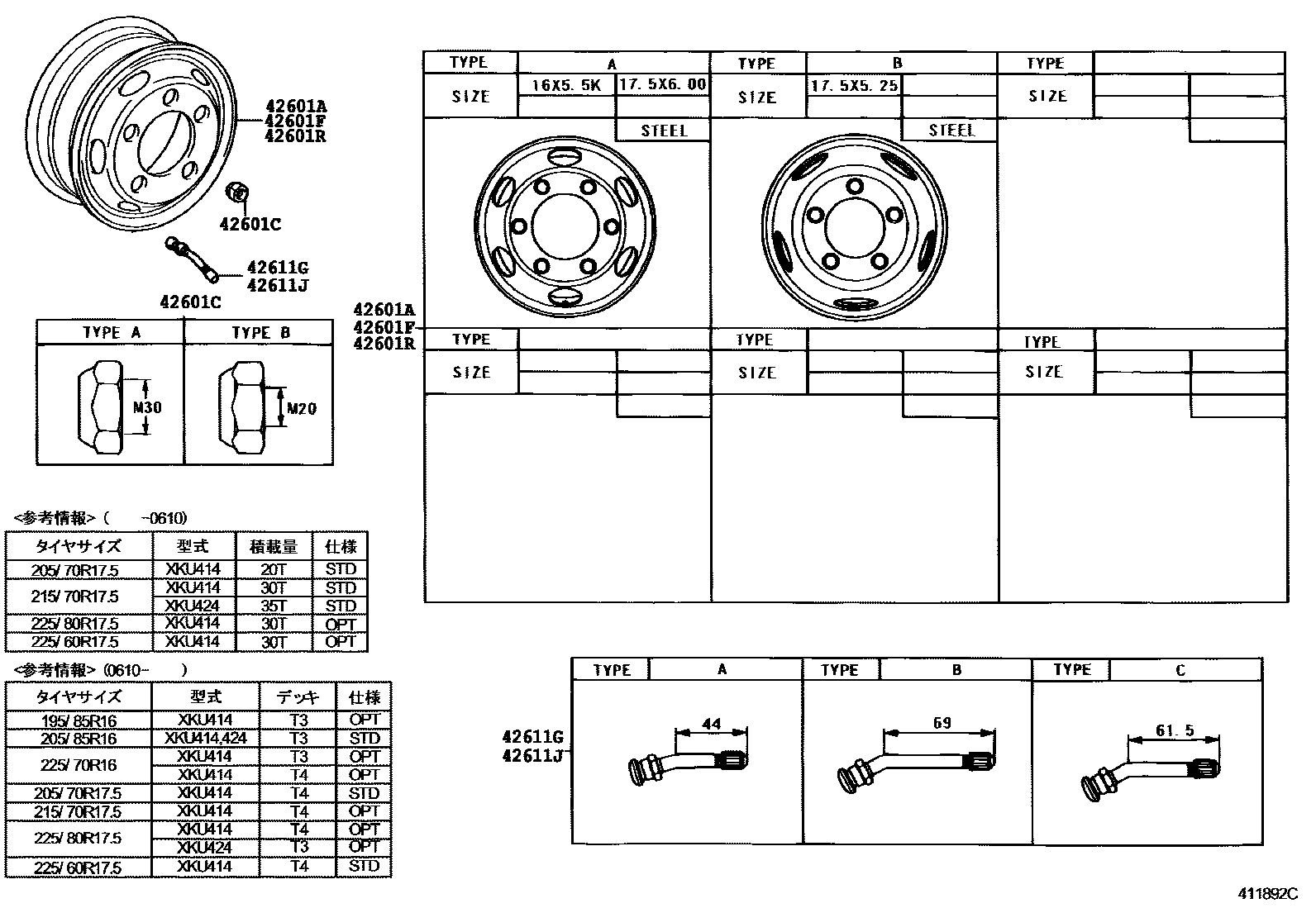

Parts diagram
42601AWHEEL, DISC (FOR SPARE)
main42601-37260i200310-200610
main42601-37320i200310-201002
sub42601-37730
main42601-37330i200310-200610
main42601-37400i200610
main42601-37400i200310-200610
main42601-37440i200610-201002
sub42601-37740
main42601-37470i200610
main42601-37730i201002
sub42611-37020
sub90942-05046
main42601-37740i201002
42601CNUT, HUB (FOR AXLE)
main42633-37020i200610-201106
main42633-55030i200310-200610
main42634-37020i200610-201106
main42634-55030i200310-200610
main43522-37010i200610-201106
main43522-37020i200610-201106
main90942-01107i200310-200609
main90942-01108i200310-200609
42601FWHEEL, DISC (FOR FRONT)
main42601-37260i200310-200610
main42601-37320i200310-201002
sub42601-37730
main42601-37330i200310-200610
main42601-37400i200610
main42601-37400i200310-200610
main42601-37440i200610-201002
sub42601-37740
main42601-37470i200610
main42601-37730i201002
sub42611-37020
sub90942-05046
main42601-37740i201002
42601RWHEEL, DISC (FOR REAR)
main42601-37260i200310-200610
main42601-37320i200310-201002
sub42601-37730
main42601-37330i200310-200610
main42601-37400i200310-200610
main42601-37400i200610
main42601-37440i200610-201002
sub42601-37740
main42601-37470i200610
main42601-37730i201002
sub42611-37020
sub90942-05046
main42601-37740i201002
42611GVALVE (FOR TUBELESS TIRE)
main90942-05026i200310-200610
main90942-05030i200310-200610
main90942-05034i200310-200610
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05026i200310-200610
main90942-05030i200310-200610
main90942-05034i200310-200610

6 parts on this diagram · 2 diagrams in section
