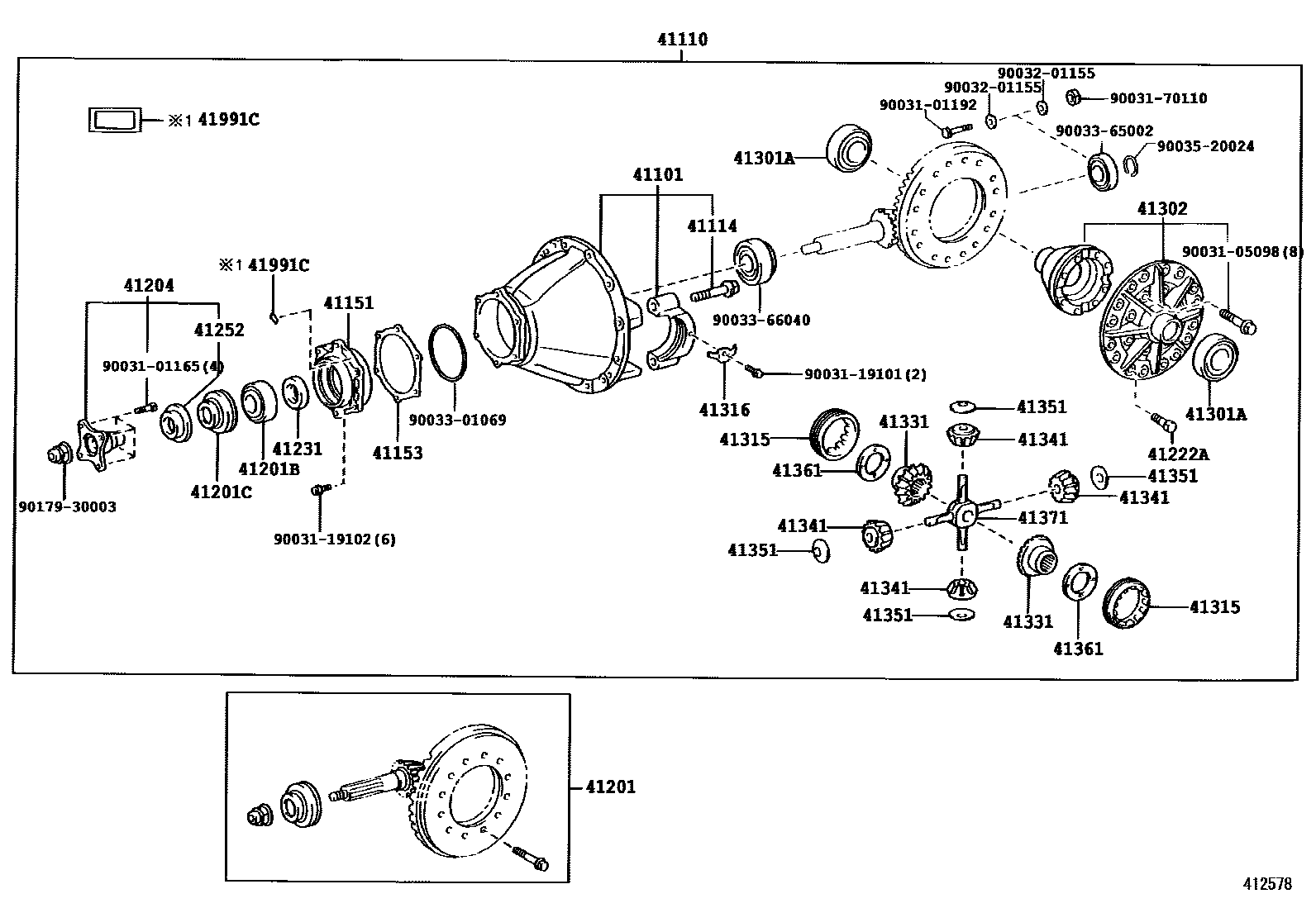

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1��(LSD) 0003 1 0004 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-37060iXKU414,424200310-200904

sub41101-37061

main41101-37061iXKU414,424200904-201106

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-37330iXKU414..T4..30T200908-201106

main41110-37340iXKU414,424200310-201106

main41110-37350iXKU414,424200310-201106

main41110-37360iXKU414,424..T3..6F200310-200908

main41110-37370iXKU414..6FC200911-201106

main41110-37380iXKU414..6FC200911-201106

main41110-37390iXKU414..6FC200801-201106

main41110-37400iXKU414..6FC200801-200911

main41110-37420iXKU414,424..T3..6F200610-200908

main41110-37430iXKU414..6FC200911-201106

main41110-37440iXKU414..6FC200911-201106

main41110-37450iXKU414..6FC200801-201106

main41110-37460iXKU414..6FC200801-200911

main41110-37570iXKU424;XKU414..6F..DCRTJ;XKU414..T3..6F..DCRUE200610-201106

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90031-05043iXKU414,424200310-201106

subSZ105-16030

41151CAGE, DIFFERENTIAL DRIVE PINION BEARING

main41151-37030iXKU414,424200310-201008

sub41151-37031

main41151-37031iXKU414,424201008

41153SHIM, DIFFERENTIAL DRIVE PINION CAGE

main41153-37090iXKU414,424200310-200610

main41153-37100iXKU414,424200310-200610

main41153-37110iXKU414,424200310-200610

main41153-37120iXKU414,424200310-200610

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80214iXKU414,424200310-200612

sub41201-80551

main41201-80215iXKU414,424200310-200612

sub41201-80553

main41201-80216iXKU414,424..T3200310-200612

sub41201-80550

main41201-80547iXKU414..6FC200911-201106

sub41201-80609

main41201-80548iXKU414..6FC200911-201106

sub41201-80608

main41201-80549iXKU414..6FC200801-201106

sub41201-80612

main41201-80550iXKU414,424..T3..6F200612-200908

sub41201-80607

main41201-80551iXKU414,424..6F..DCRUE;XKU414..T4..30T..DCRTJ200612-201106

sub41201-80650

main41201-80552iXKU414..T4..30T200908-201106

sub41201-80615

main41201-80553iXKU424;XKU414..6F..DCRTJ;XKU414..T3..6F..DCRUE200612-201106

sub41201-80606

main41201-80554iXKU414..6FC200801-200911

sub41201-80614

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90033-66038iXKU414,424200310-201106

subSZ366-45013

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90033-11039iXKU414,424200310-201106

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-37080iXKU414,424200310-201106

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90031-01193iXKU414,424200310-200612

sub90031-01203

main90031-01203iXKU414,424200612-201106

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-37420iXKU414,424200310-201106

main41231-37430iXKU414,424200310-201106

main41231-37440iXKU414,424200310-201106

main41231-37450iXKU414,424200310-201106

main41231-37460iXKU414,424200310-201106

main41231-37470iXKU414,424200310-201106

main41231-37480iXKU414,424200310-201106

main41231-37490iXKU414,424200310-201106

main41231-37500iXKU414,424200310-201106

main41231-37510iXKU414,424200310-201106

main41231-37520iXKU414,424200310-201106

main41231-37530iXKU414,424200310-201106

main41231-37540iXKU414,424200310-201106

main41231-37550iXKU414,424200310-201106

main41231-37560iXKU414,424200310-201106

main41231-37570iXKU414,424200310-201106

main41231-37580iXKU414,424200310-201106

main41231-37590iXKU414,424200310-201106

main41231-37600iXKU414,424200310-201106

main41231-37610iXKU414,424200310-201106

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-89203iXKU414,424200310-201106

subS3734-11560

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-55054iXKU414,424200310-201106

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-37030iXKU414,424200310-200908

*FGR=37:8=4.625

main41301-37030iXKU414,424..6F200908-201106

main41301-37040iXKU424;XKU414..DCRTJ;XKU414..T3..6F..DCRUE200610-201106

*FGR=39:8=4.875 OR *FGR=41:8=5.125

main41301-37040iXKU414,424200310-200610

*FGR=41:8=5.125

main41301-37040iXKU414..6FC200911-201106

main41301-37050iXKU424;XKU414..DCRTJ;XKU414..T3..DCRUE200610-201106

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-37020iXKU414,424200310-201106

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-37010iXKU414,424200310-201106

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-37040iXKU414,424200310-201106

main41331-37050iXKU424;XKU414..DCRTJ;XKU414..T3..DCRUE200610-201106

main41331-37060iXKU424;XKU414..DCRTJ;XKU414..T3..DCRUE200610-201106

41341PINION, REAR DIFFERENTIAL

main41341-37030iXKU414,424200310-201106

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-37020iXKU414,424200310-201106

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-37030iXKU414,424200310-201106

41371SPIDER, REAR DIFFERENTIAL

main41371-37020iXKU414,424200310-200410

sub41371-37030

main41371-37030iXKU414,424200410-201106

41991CAUTION PLATE, REAR DIFFERENTIAL

main41991-37140iXKU424;XKU414..DCRTJ;XKU414..T3..DCRUE200610

41991CCAUTION PLATE, REAR DIFFERENTIAL

main41991-37010iXKU414..6FC200911

main41991-37050iXKU414..T4..30T200908

main41991-37060iXKU414,424..6F..DCRUE;XKU414..T4..30T..DCRTJ200310-200610

main41991-37070iXKU424;XKU414..6F..DCRTJ;XKU414..T3..6F..DCRUE200310-200610

main41991-37080iXKU414,424..T3..6F200310-200908

main41991-37090iXKU414..6FC200911

main41991-37100iXKU414..6FC200801

main41991-37110iXKU414..6FC200801-200911

9003101165

main90031-01165

9003101192

main90031-01192

9003105098

main90031-05098

9003119101

main90031-19101

9003119102

main90031-19102

9003170110

main90031-70110

9003201155

main90032-01155

9003301069

main90033-01069

9003365002

main90033-65002

9003366040

main90033-66040

9003520024

main90035-20024

9017930003

main90179-30003

35 parts on this diagram · 4 diagrams in section
