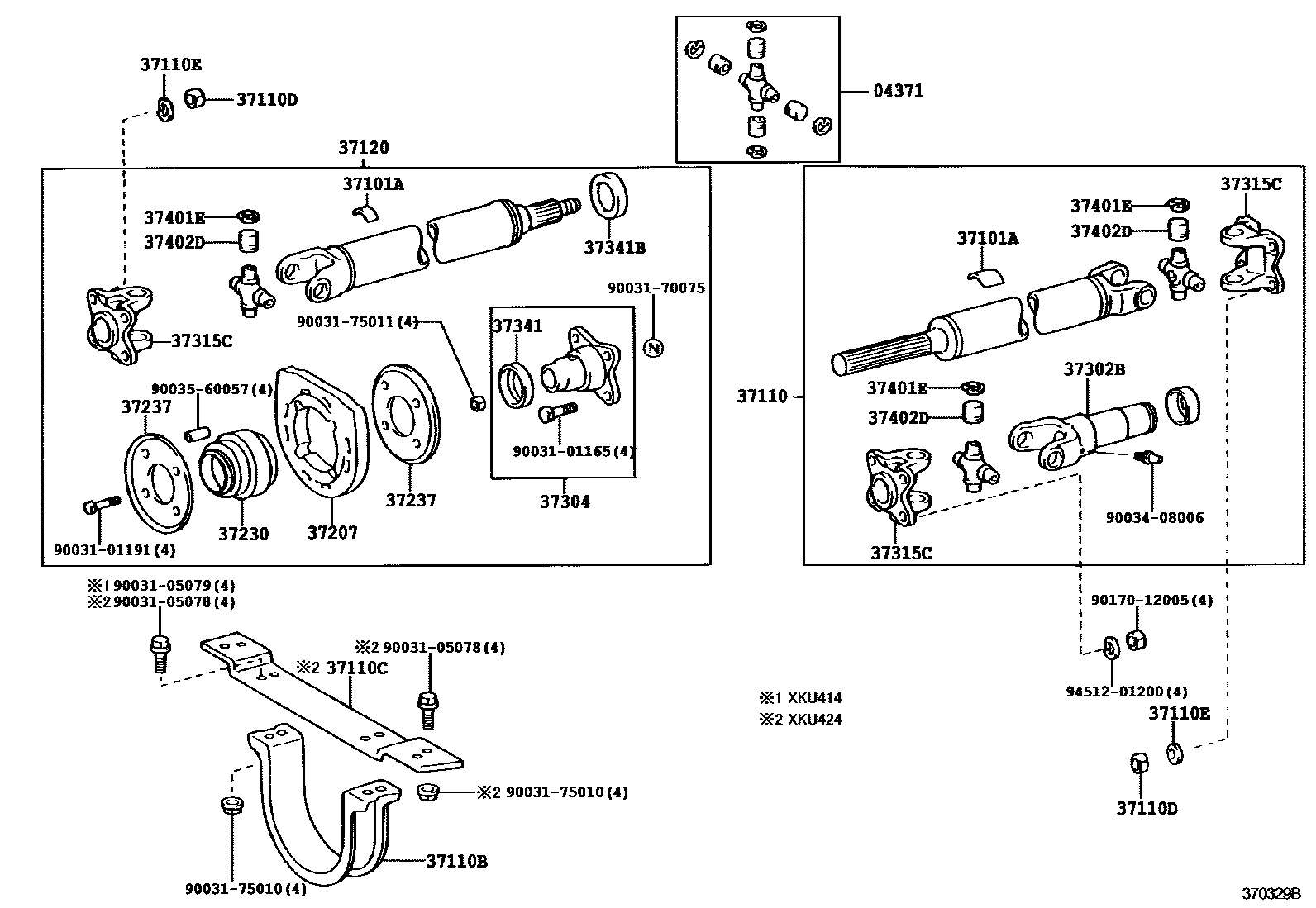

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-37011×3iXKU414,424200310-200610

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90039-13001iXKU414,424200310-200610

main90039-13002iXKU414,424200310-200610

main90039-13003iXKU414,424200310-200610

main90039-13004iXKU414,424200310-200610

main90039-13005iXKU414,424200310-200610

37110SHAFT ASSY, PROPELLER

main37110-37570iXKU424200310-200610

main37110-37580iXKU414200310-200610

37110BGUARD, PROPELLER SHAFT

main37231-37020iXKU414,424200310-200610

37110CBRACKET, PROPELLER SHAFT GUARD

main51241-37090iXKU424200310-200610

37110DNUT (FOR PROPELLER SHAFT)

main90170-12005×8iXKU414,424200310-200610

37110EWASHER (FOR PROPELLER SHAFT)

main94512-01200×8iXKU414,424200310-200610

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-37280iXKU414200310-200610

main37120-37460iXKU424200310-200610

main37120-37640iXKU414..6F200610

main37120-37660iXKU424200610

main37120-37720iXKU414..6FC200801

37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1

main37235-37020iXKU414,424200310-200610

main37235-37030iXKU414,424200610

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37201-37010iXKU414,424200310-200610

main37201-37020iXKU414,424200610

37237PLATE, CENTER SUPPORT BEARING, NO.1

main37237-37010×2iXKU414,424200310-200610

main37237-37020×2iXKU414,424200610

37302BYOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

main37302-37021iXKU414,424200310-200610

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-37020iXKU414,424200310-200610

main37304-37040iXKU414,424200610

37315CYOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE

main37315-37021×3iXKU414,424200310-200610

main37315-37070×2iXKU414..6FC..DCRUE200610-201106

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

main37341-37020iXKU414,424200310-200610

main37341-37030iXKU414,424200610

37341BDEFLECTOR, PROPELLER SHAFT DUST, NO.5

main37341-37020iXKU414,424200310-200610

main37341-37030iXKU414,424200610

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90035-21022×12iXKU414,424200310-200610

main90035-21023×12iXKU414,424200310-200610

main90035-21024×12iXKU414,424200310-200610

main90035-21025×12iXKU414,424200310-200610

main90035-21026×12iXKU414,424200310-200610

main90035-21038×8iXKU414,424200610

main90035-21039×8iXKU414,424200610

main90035-21040×8iXKU414,424200610

main90035-21041×8iXKU414,424200610

main90035-21042×8iXKU414,424200610

main90035-21043×8iXKU414,424200610

main90035-21044×8iXKU414,424200610

37402DBEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER

main37402-37020×12iXKU414,424200310-200610

9003101165

main90031-01165

9003101191

main90031-01191

9003105078

main90031-05078

9003105079

main90031-05079

9003170075

main90031-70075

9003175010

main90031-75010

9003175011

main90031-75011

9003408006

main90034-08006

9003560057

main90035-60057

9017012005

main90170-12005

9451201200

main94512-01200

29 parts on this diagram · 3 diagrams in section
