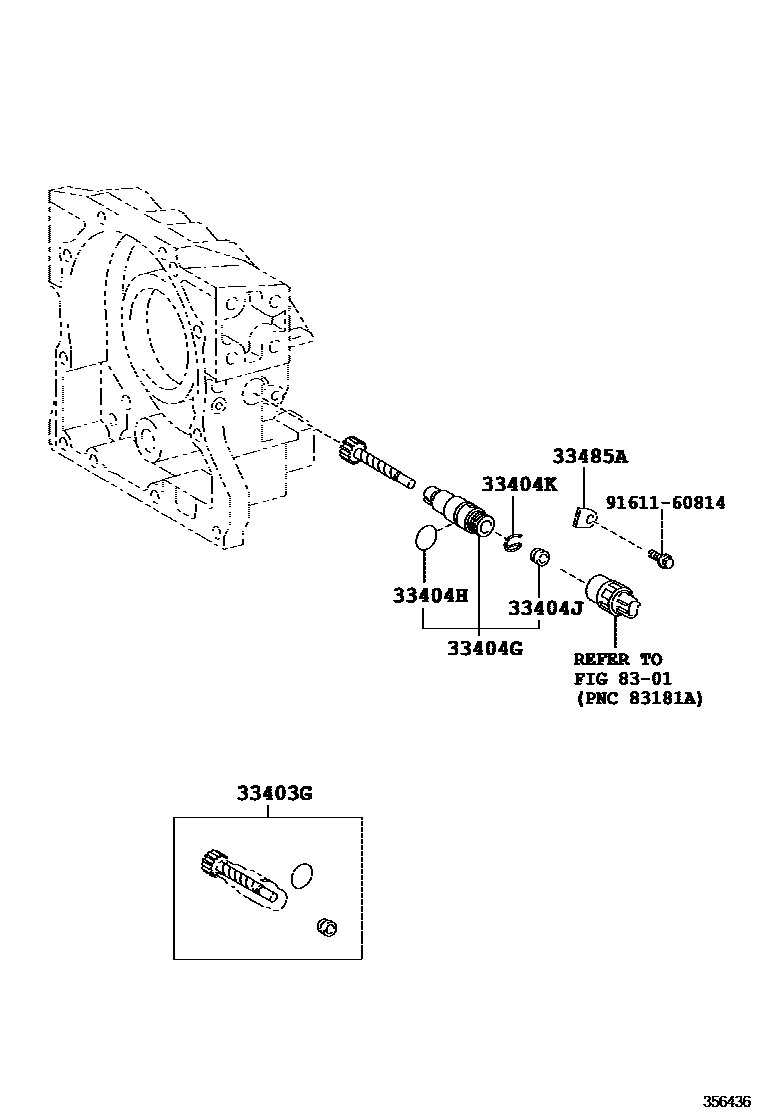

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-80003iXKU414..6FC200801

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-37020iXKU414..6FC200801-201106

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-21014iXKU414..6FC200801-201106

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iXKU414..6FC200801-201106

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXKU414..6FC200801-201106

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iXKU414..6FC200801-201106

8301METER

→ Go to FIG 83-01

9161160814

main91611-60814

8 parts on this diagram · 1 diagram in section
