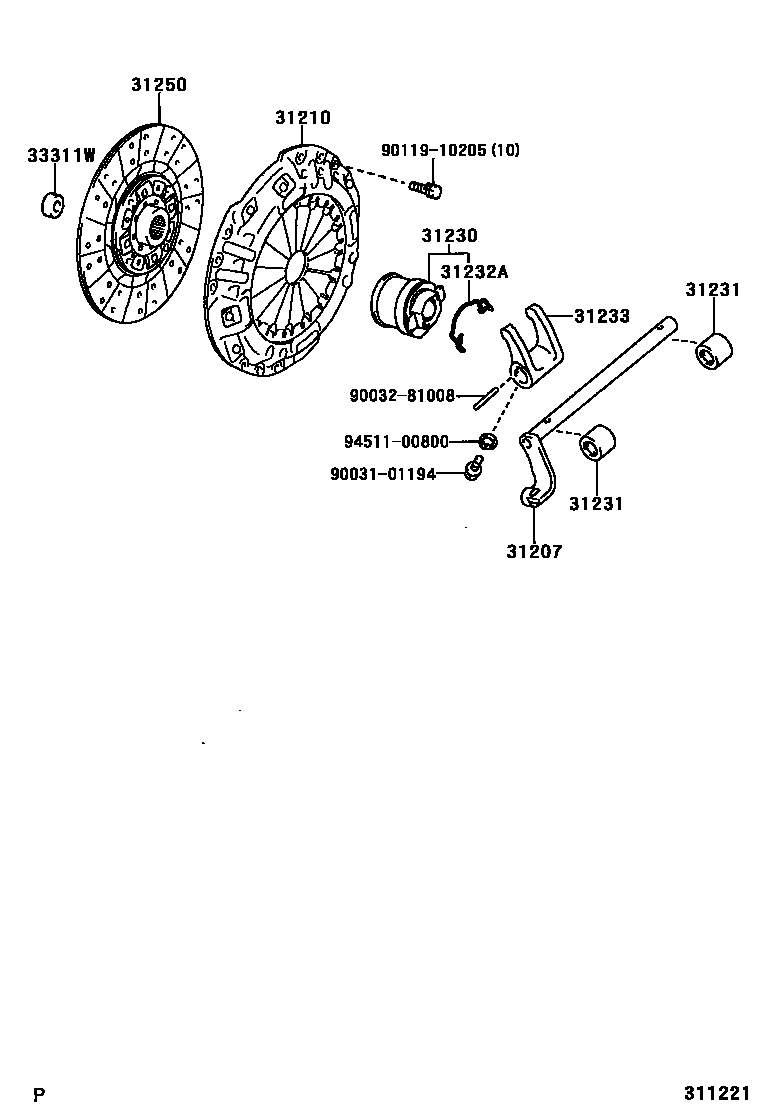

CLUTCH & RELEASE FORK

0001 1 0002 1

31207LEVER SUB-ASSY, CLUTCH RELEASE FORK

main31207-89101iXKU414,424200310-200610

31210COVER ASSY, CLUTCH

main31210-37090iXKU414,424200310-200610

main31210-37120iXKU414,424..6F200610-201012

main31210-37180iXKU414,424..6F201101-201106

31230BEARING ASSY, CLUTCH RELEASE

main31230-36210iXKU414,424200310-200610

main31230-37030iXKU414,424..6F200610-201106

31231HUB, CLUTCH RELEASE BEARING

main31231-37060×2iXKU414,424200310-200610

31232ACLIP, RELEASE BEARING HUB

main31232-36030iXKU414,424200310-200610

main31232-37020iXKU414,424..6F200610

31233FORK, CLUTCH RELEASE

main31233-89102iXKU414,424200310-200610

31250DISC ASSY, CLUTCH

main31250-37120iXKU414,424200310-200610

main31250-37170iXKU414,424..6F200610-201106

33311WBEARING (FOR INPUT SHAFT)

main90363-17037iXKU414,424200310-200610

9003101194

main90031-01194

9003281008

main90032-81008

9011910205

main90119-10205

9451100800

main94511-00800

12 parts on this diagram · 2 diagrams in section
