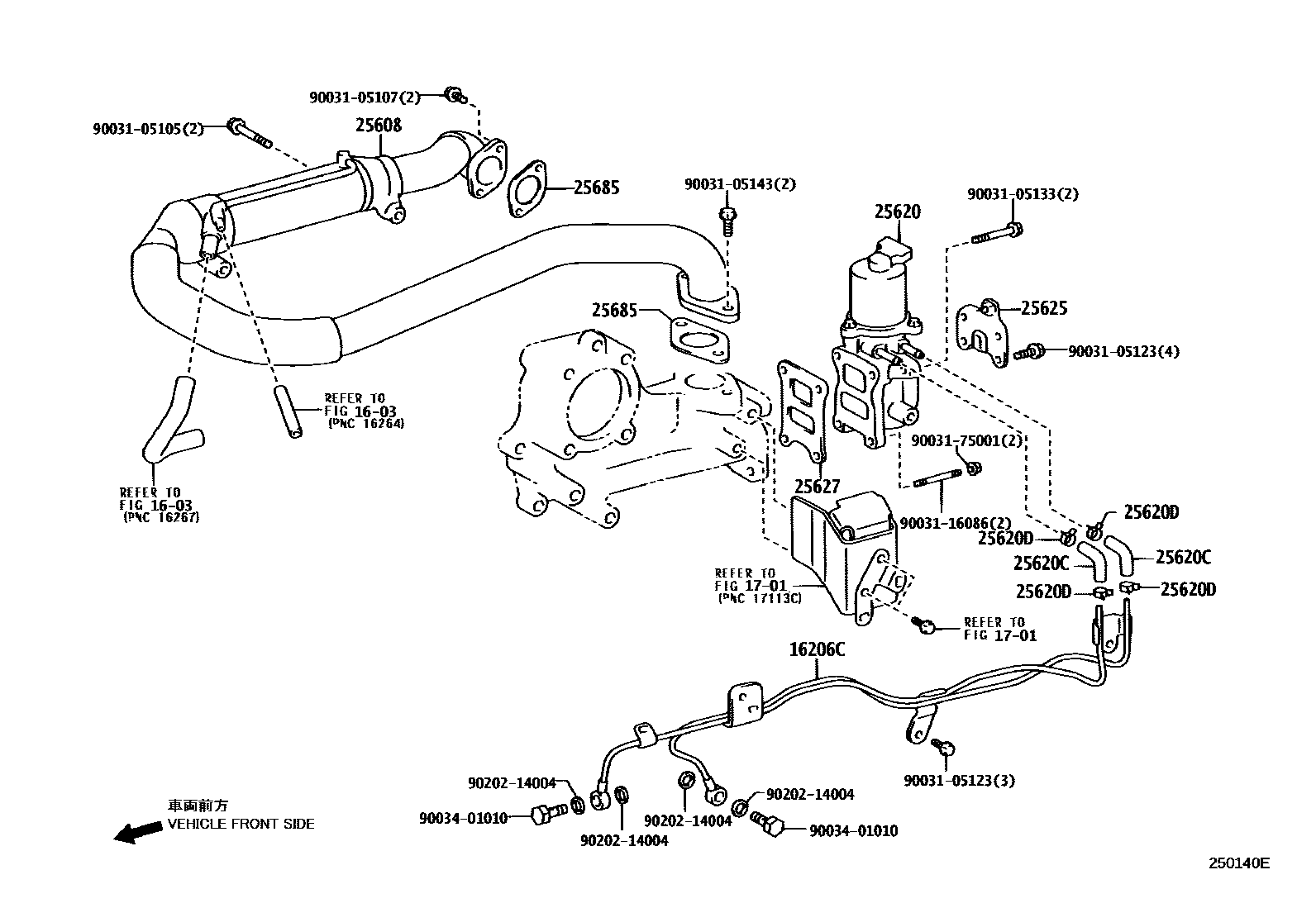

Toyota DYNA/TOYOACE HV — EXHAUST GAS RECIRCULATION SYSTEM
1603RADIATOR & WATER OUTLET
16206CPIPE SUB-ASSY, WATER BY-PASS
1701MANIFOLD
25620VALVE ASSY, EGR
25620CHOSE, WATER BY-PASS, NO.1
25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)
25627GASKET, EGR VALVE
25685GASKET, EGR COOLER, NO.1
9003105105
9003105107
9003105123
9003105133
9003105143
9003116086
9003175001
9003401010
9020214004
19 parts on this diagram · 2 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota DYNA/TOYOACE HV
This section contains 22 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota DYNA/TOYOACE HV. Key components include: RADIATOR & WATER OUTLET, PIPE SUB-ASSY, WATER BY-PASS, MANIFOLD, INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1, COOLER SUB-ASSY, EGR.
