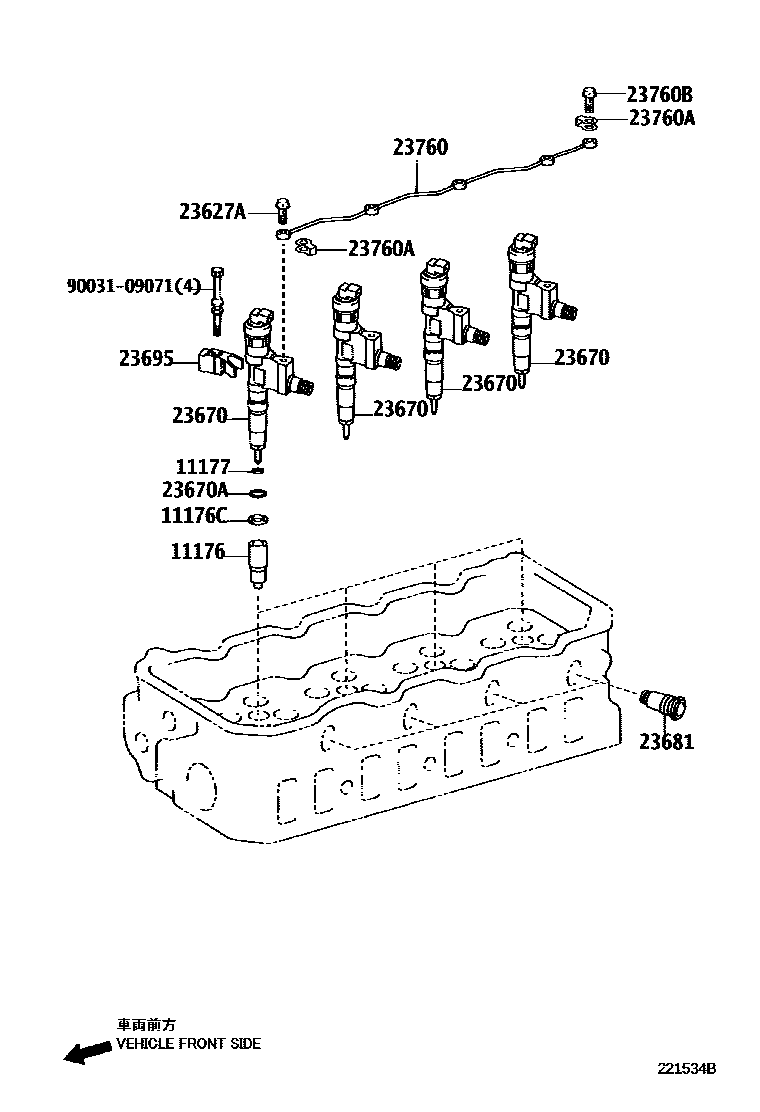

INJECTION NOZZLE

0001 1 0002 1

11176SEAT, INJECTION NOZZLE

main11176-78010iN04C..XKU414,424200310-200610

subS1117-61200

11176CGASKET, NO.2(FOR INJECTION NOZZLE SEAT)

main90034-30044iN04C..XKU414,424200310-200610

subSZ910-15133

11177GASKET, INJECTION NOZZLE SEAT

main23682-78030iN04C..XKU414,424200310-201104

sub23682-E0050

main23682-E0050iN04C..XKU414,424201104-201106

23627ASCREW, FOLLOW(FOR NOZZLE)

main90034-01017iN04C..XKU414,424200310-200610

sub21811-E0050

23670INJECTOR ASSY

main23670-78030iN04C..XKU414,424200310-200610

sub23670-79036

main23670-79015iN04C..XKU414,424200610-200804

sub23670-79016

main23670-79016iN04C..XKU414,424200804-201104

sub23670-79017

main23670-79017iN04C..XKU414,424201104-201106

sub23670-79018

23670ARING, O(FOR INJECTOR ASSY)

main90033-01101iN04C..XKU414,424200904-200906

subSZ301-19015

main90301-19005iN04C..XKU414,424..DCRUE200310-200904

23681SEAL, NOZZLE HOLDER

main23681-78010iN04C..XKU414,424200310-200610

subS2307-41070

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-78020iN04C..XKU414,424200310-200610

subS1119-51140

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78010iN04C..XKU414,424200310-201106

subS2308-12630

23760AGASKET

main90032-09030iN04C..XKU414,424200310-200706

sub90032-09032

main90032-09032iN04C..XKU414,424200706

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main90034-01009iN04C..XKU414,424200310-200805

sub90034-01019

main90034-01019iN04C..XKU414,424200805

sub21811-E0060

9003109071

main90031-09071

12 parts on this diagram · 2 diagrams in section
