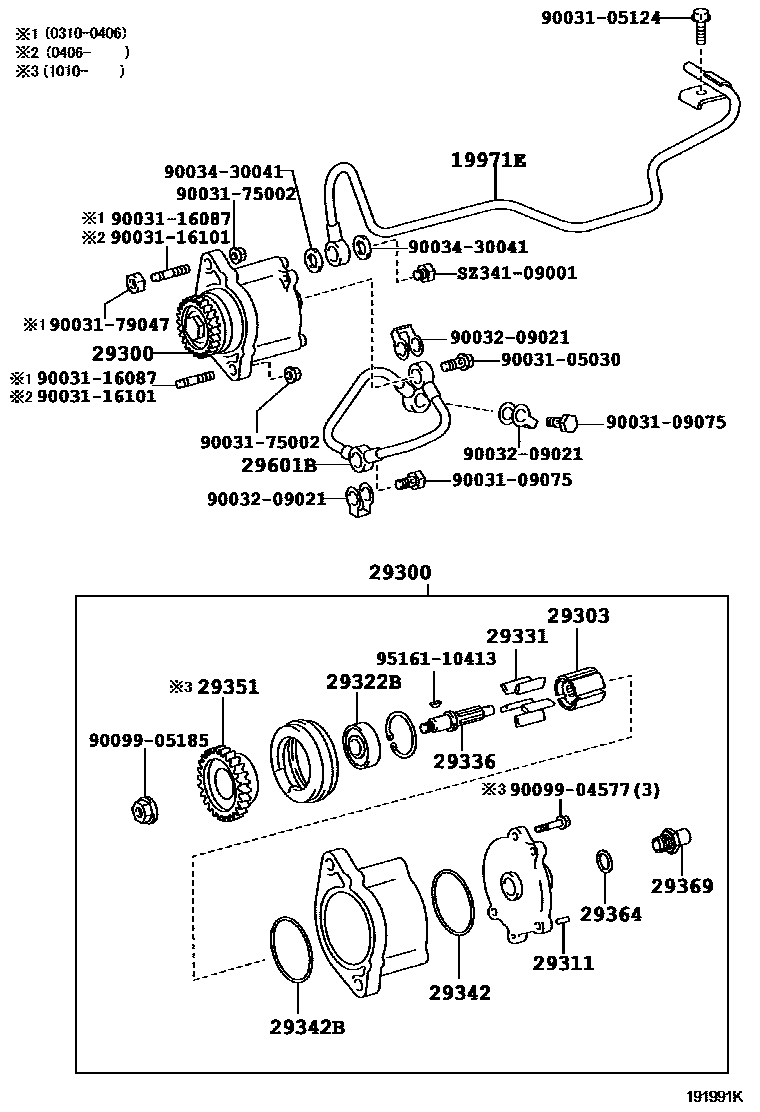

VACUUM PUMP

19971EPIPE, VACUUM

main19971-78190iN04C..XKU414,424200310-200610

main19971-78241iN04C..XKU414,424200610

29300PUMP ASSY, VACUUM

main29300-78060iN04C..XKU414,424200310-200610

main29300-78061iN04C..XKU414,424201010

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020iN04C..XKU414,424200310-200610

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2iN04C..XKU414,424200310-200610

29322BBEARING, VACUUM PUMP

main90099-10185iN04C..XKU414,424200310-200610

29331BLADE, VACUUM PUMP, A

main29331-67020×5iN04C..XKU414,424200310-200610

29336SHAFT, VACUUM PUMP

main29336-58050iN04C..XKU414,424200310-200610

29342PACKING, VACUUM PUMP

main29342-17010iN04C..XKU414,424200310-200610

29342BRING, O

main29342-58010iN04C..XKU414,424200310-200610

29351GEAR, VACUUM PUMP

main29351-78061iN04C..XKU414,424201010

29364WASHER, VACUUM PUMP

main29364-66010iN04C..XKU414,424201010

29369VALVE SUB-ASSY, CHECK

main29369-64030iN04C..XKU414,424201010

29601BPIPE SUB-ASSY, OIL(FOR VACUUM PUMP)

main29601-78080iN04C..XKU414,424200310-200610

main29601-78081iN04C..XKU414,424200707

9003105030

main90031-05030

9003105124

main90031-05124

9003109075

main90031-09075

9003116087

main90031-16087

9003116101

main90031-16101

9003175002

main90031-75002

9003179047

main90031-79047

9003209021

main90032-09021

9003430041

main90034-30041

9009904577

main90099-04577

9009905185

main90099-05185

9516110413

main95161-10413

SZ34109001

mainSZ341-09001

26 parts on this diagram · 1 diagram in section
