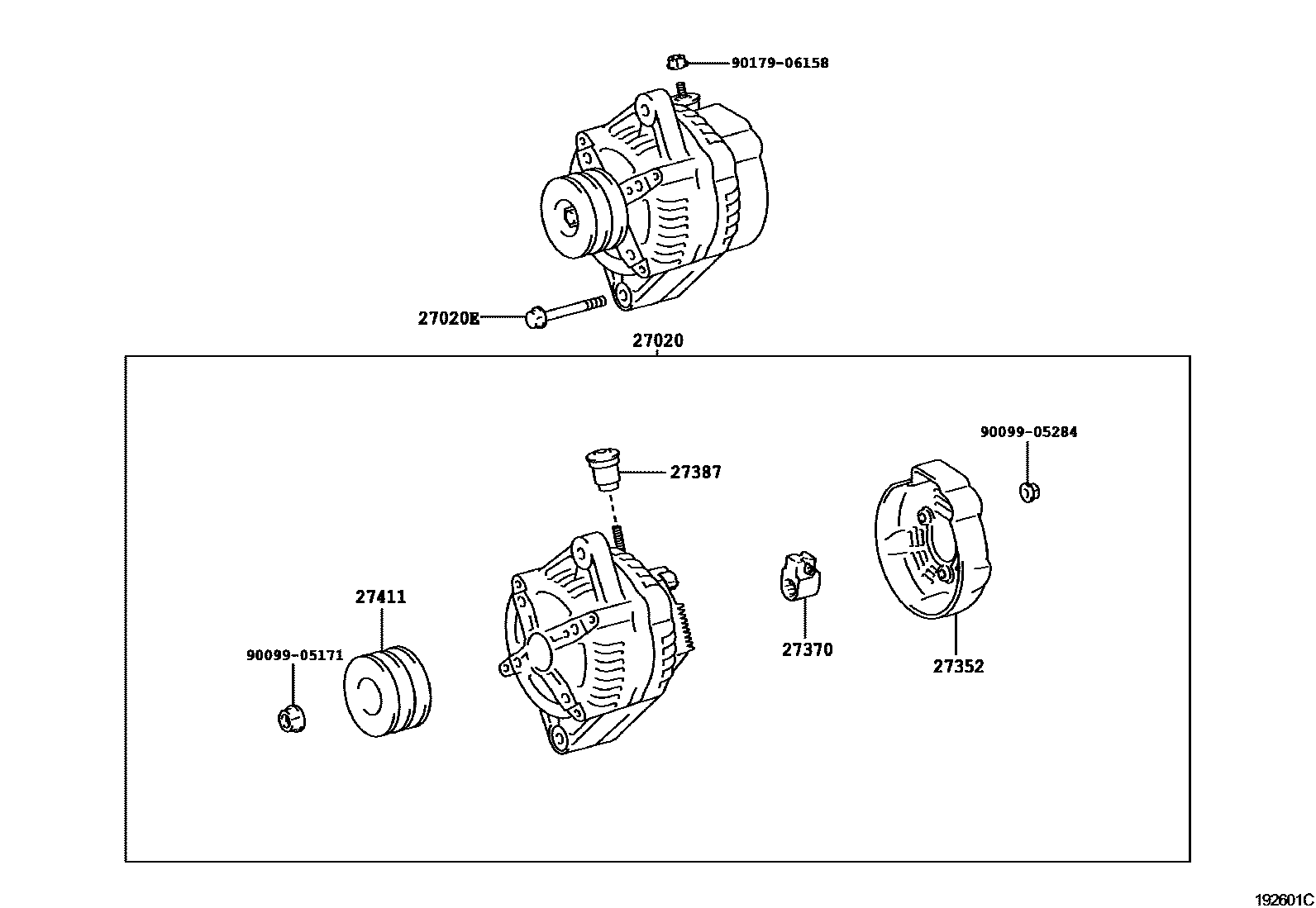

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27060-78110iN04C..XKU414,424200310-201010

sub27060-78180

sub12519-78050

sub90031-05143

sub90031-05146

main27060-78180iN04C..XKU414,424201010

sub27060-E0320

27020EBOLT(FOR ALTERNATOR)

main90031-05093iN04C..XKU414,424200310-200610

27352COVER, FRAME BRUSH

main27352-89104iN04C..XKU414,424200310-200610

subS2735-21152

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460iN04C..XKU414,424200310-200610

27387INSULATOR, TERMINAL

main27387-20130iN04C..XKU414,424200310-200610

27411PULLEY, ALTERNATOR

main27411-89109iN04C..XKU414,424200310-200610

subS2743-11810

9009905171

main90099-05171

9009905284

main90099-05284

9017906158

main90179-06158

9 parts on this diagram · 2 diagrams in section
