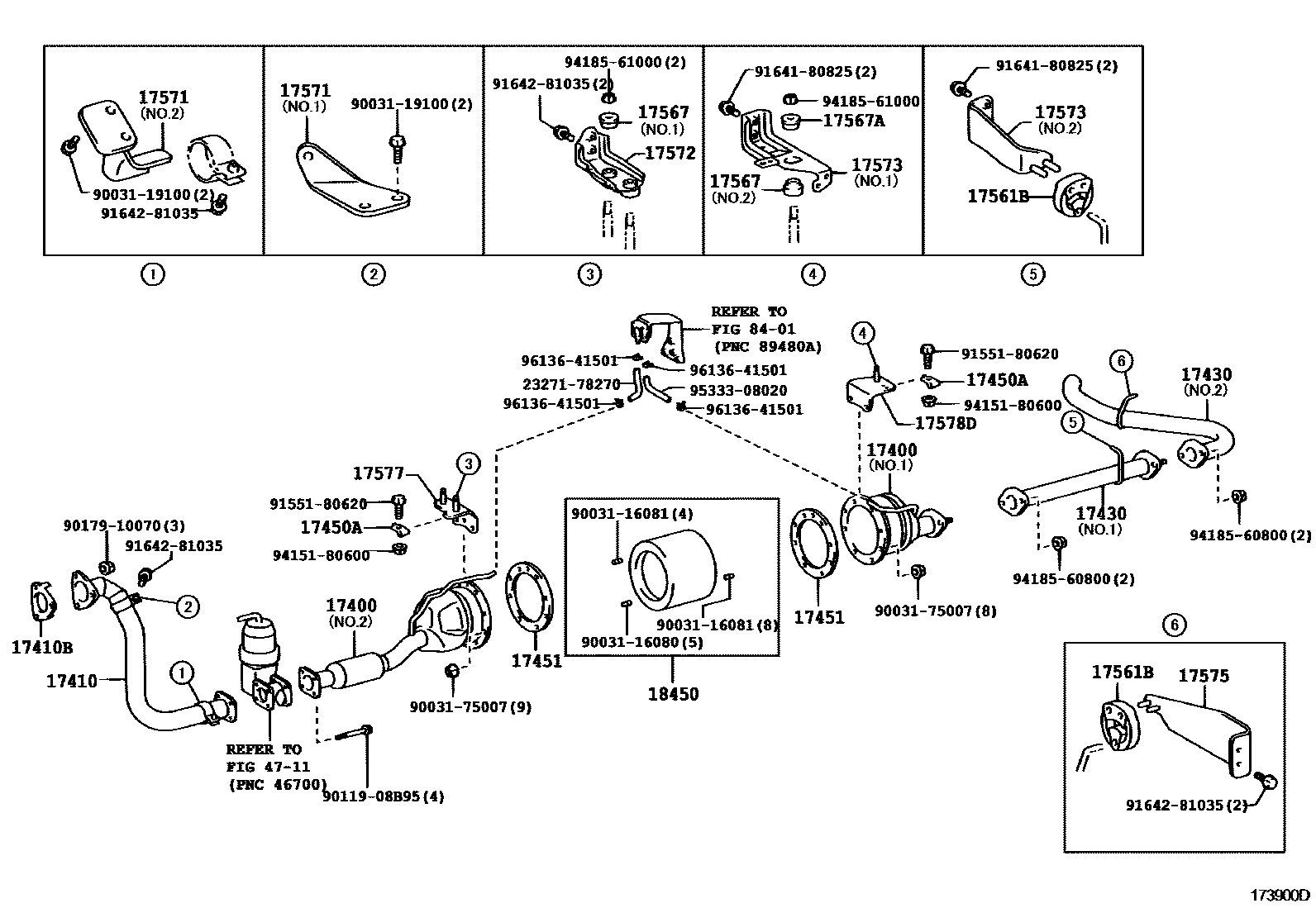

EXHAUST PIPE

0001 1 0002 1

17400CONVERTER ASSY, W/CATALYST

main17403-78610iN04C..XKU414,424200310-200610

main17406-78090iN04C..XKU414,424200310-200610

17410PIPE ASSY, EXHAUST, FRONT

main17401-78210iN04C..XKU414,424200310-200610

main17410-78060iN04C..XKU414,424200610

17410BGASKET, EXHAUST PIPE

main90917-06087iN04C..XKU414,424200310-200610

17430PIPE ASSY, EXHAUST, TAIL

main17405-78870iN04C..XKU414,424200310-200610

main17405-78880iN04C..XKU414..20T200310-200610

main17405-78890iN04C..XKU414,424..30T,35T200310-200610

main17405-78D10iN04C..XKU414,424..6F200908-201106

main17405-78D70iN04C..XKU414..20T200610-200908

main17405-78D80iN04C..XKU424;N04C..XKU414..DCRTJ;N04C..XKU414..T3..DCRUE200610-201106

17450ACLAMP, EXHAUST PIPE, NO.5

main17589-78020×2iN04C..XKU414,424200310-200408

main17589-78021×2iN04C..XKU414,424200408-200610

17451GASKET, EXHAUST PIPE

main17451-78020×2iN04C..XKU414,424200310-200610

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-73020×2iN04C..XKU414,424200310-200610

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-78030×2iN04C..XKU414,424200310-200610

main17567-78040iN04C..XKU414,424200310-200610

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-78030iN04C..XKU414,424200310-200610

main17567-78040×2iN04C..XKU414,424200610

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-78060iN04C..XKU414,424200310-200610

main17571-78070iN04C..XKU414,424200310-200411

main17571-78120iN04C..XKU414,424200412-200610

main17571-78130iN04C..XKU414,424200610

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-78210iN04C..XKU414,424200310-200610

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-78230iN04C..XKU414,424200610

main17573-78240iN04C..XKU414,424200310-200610

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-78230iN04C..XKU414,424200310-200408

main17575-78231iN04C..XKU414,424200408-200610

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

main17577-78060iN04C..XKU414,424200310-200610

main17577-78080iN04C..XKU414,424200610

17578DBRACKET, EXHAUST PIPE SUPPORT, NO.8

main17578-78120iN04C..XKU414,424200310-200610

main17578-78250iN04C..XKU414,424200610

18450CONVERTER ASSY, MONOLITHIC

main18450-78020iN04C..XKU414,424200310-200610

4711EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

→ Go to FIG 47-11

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2327178270VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-78270

9003116080

main90031-16080

9003116081

main90031-16081

9003119100

main90031-19100

9003175007

main90031-75007

9011908B95

main90119-08B95

9017910070

main90179-10070

9155180620

main91551-80620

9164180825

main91641-80825

9164281035

main91642-81035

9415180600

main94151-80600

9418560800

main94185-60800

9418561000

main94185-61000

9533308020

main95333-08020

9613641501

main96136-41501

33 parts on this diagram · 2 diagrams in section
