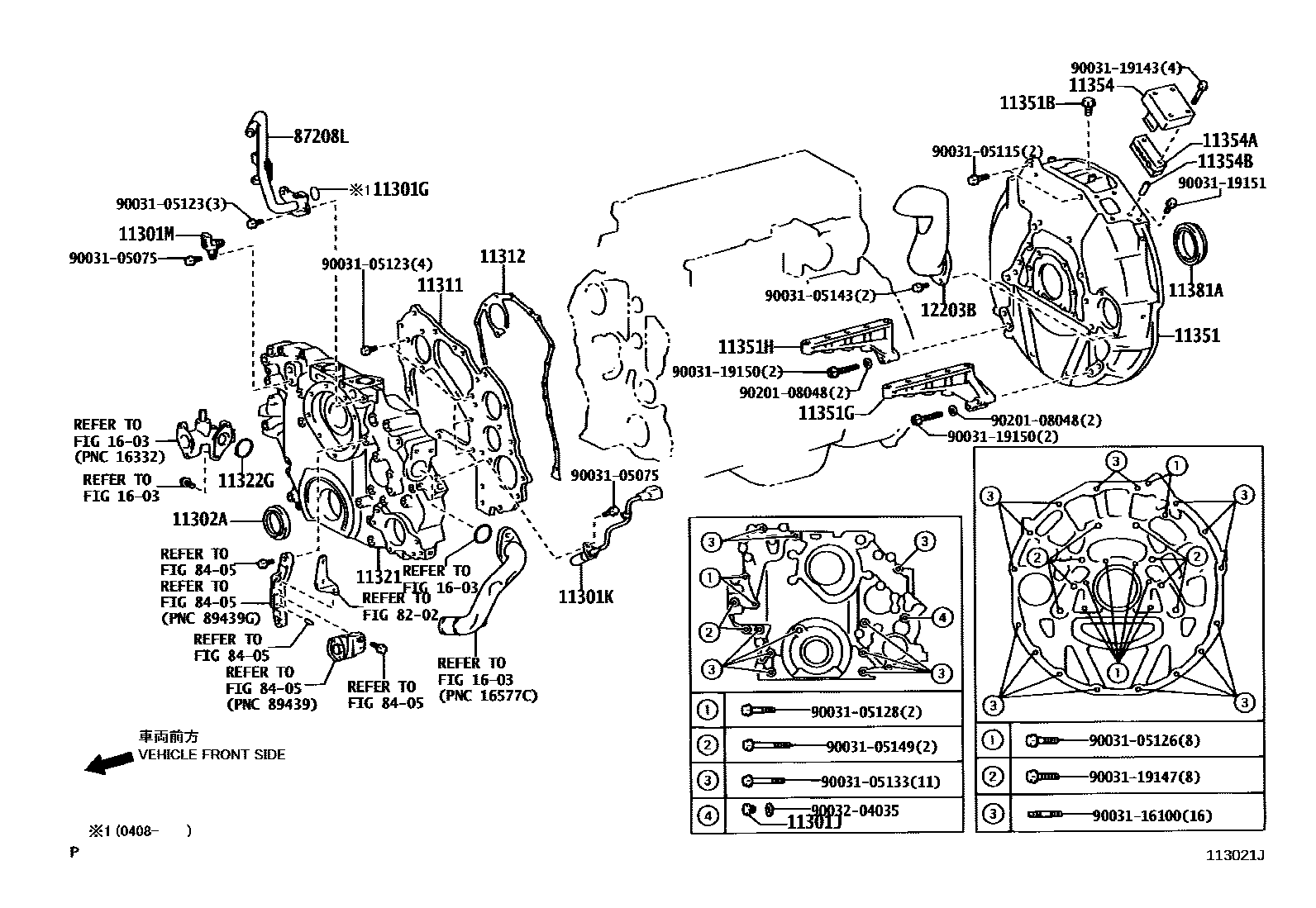

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1������ ������ ���� 0003 1������� ������� ����

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90033-01086iN04C..XKU414,424200408-200610

main90033-01105iN04C..XKU414,424200904

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90033-41004iN04C..XKU414,424200310-200610

11301KSENSOR, CRANK POSITION

main19311-78060iN04C..XKU414,424200310-200610

main89411-E0040iN04C..XKU414,424201101-201106

11301MSENSOR, CAM POSITION

main19311-78030iN04C..XKU414,424200310-200610

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90033-11040iN04C..XKU414,424200310-200610

11311PLATE, FRONT END

main11429-78020iN04C..XKU414,424200406-200610

main13596-78010iN04C..XKU414,424200310-200406

11312GASKET, FRONT END PLATE

main11312-78011iN04C..XKU414,424200310-200610

11321CASE, TIMING GEAR

main11310-78012iN04C..XKU414,424200610-201103

main11310-78070iN04C..XKU414,424201103-201105

main11310-78071iN04C..XKU414,424201105-201106

main11321-78081iN04C..XKU414,424200310-200406

main11321-78083iN04C..XKU414,424200406-200408

main11321-78084iN04C..XKU414,424200408-200409

main11321-78085iN04C..XKU414,424200409-200502

main11321-78086iN04C..XKU414,424200502-200610

11322GRING, O(FOR TIMING GEAR COVER)

main90033-01064iN04C..XKU414,424200310-200610

11351HOUSING, FLYWHEEL

main11351-78093iN04C..XKU414,424200310-200610

main11351-78140iN04C..XKU414,424200610-201010

main11351-78141iN04C..XKU414,424201010-201105

main11351-E0J00iN04C..XKU414,424201105-201106

11351BPLUG, HOLE(FOR FLYWHEEL HOUSING)

main90033-41004×4iN04C..XKU414,424200310-200610

11351GSTAY, LH(FOR FLYWHEEL HOUSING)

main11353-78012iN04C..XKU414,424200610-201106

main11353-78040iN04C..XKU414,424200310-200610

11351HSTAY, RH(FOR FLYWHEEL HOUSING)

main11353-78020iN04C..XKU414,424200610-201106

main11353-78030iN04C..XKU414,424200310-200610

11354SEAL, FLYWHEEL HOUSING DUST

main11354-78030iN04C..XKU414,424200710-201106

main11354-78081iN04C..XKU414,424200310-200610

11354ASEAL(FOR FLYWHEEL HOUSING)

main90033-19010iN04C..XKU414,424200310-200610

11354BSPACER(FOR FLYWHEEL HOUSING)

main90035-60084×2iN04C..XKU414,424200310-200610

11381ASEAL, ENGINE REAR OIL

main90311-99002iN04C..XKU414,424200310-200610

12203BPIPE SUB-ASSY, VENTILATION

main12203-78101iN04C..XKU414,424200310-200610

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

87208LPIPE SUB-ASSY, WATER

main16302-78070iXKU414,424200610-200901

main16302-78100iXKU414,424200901

main87208-37420iXKU414,424200310-200610

9003105075

main90031-05075

9003105115

main90031-05115

9003105123

main90031-05123

9003105126

main90031-05126

9003105128

main90031-05128

9003105133

main90031-05133

9003105143

main90031-05143

9003105149

main90031-05149

9003116100

main90031-16100

9003119143

main90031-19143

9003119147

main90031-19147

9003119150

main90031-19150

9003119151

main90031-19151

9003204035

main90032-04035

9020108048

main90201-08048

37 parts on this diagram · 3 diagrams in section
