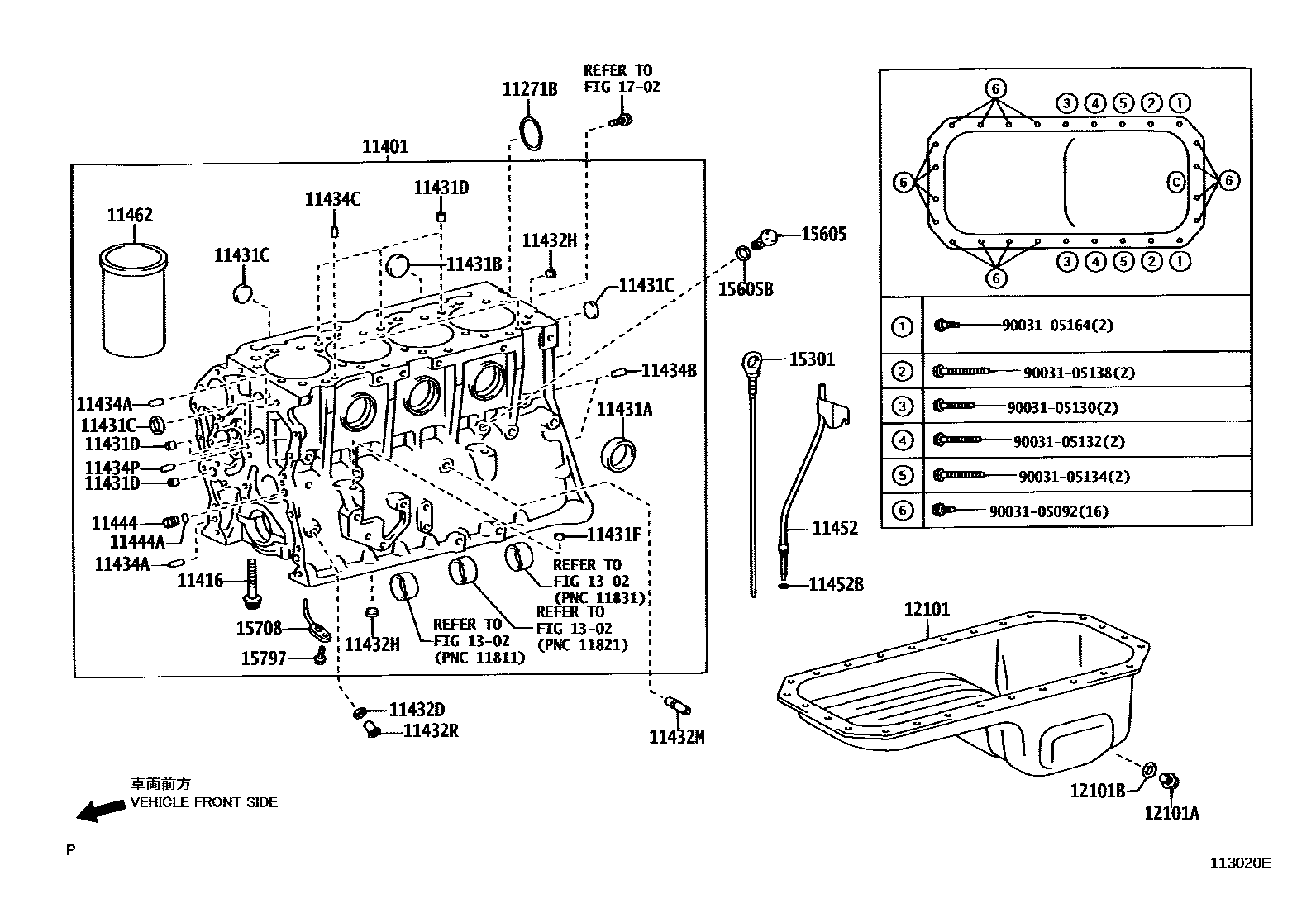

CYLINDER BLOCK
11271BRING, O(FOR CYLINDER BLOCK REAR PLATE)
11401BLOCK SUB-ASSY, CYLINDER
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
11432DGASKET, W/HEAD TAPER SCREW PLUG
11432HPLUG, W/HEAD TAPER SCREW, NO.5
11432MUNION(FOR CYLINDER BLOCK)
11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434PPIN, STRAIGHT(FOR OIL PUMP SET)
11444PLUG, HOLE
11444ARING, O
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11462LINER, CYLINDER
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1302CAMSHAFT & VALVE
15301GAGE SUB-ASSY, OIL LEVEL
15605VALVE SUB-ASSY, OIL CHECK
15605BGASKET(FOR OIL CHECK VALVE)
15708NOZZLE SUB-ASSY, OIL, NO.1
15797BOLT, OIL NOZZLE UNION
1702EXHAUST PIPE
9003105092
main90031-05092
9003105130
main90031-05130
9003105132
main90031-05132
9003105134
main90031-05134
9003105138
main90031-05138
9003105164
main90031-05164
37 parts on this diagram · 2 diagrams in section
