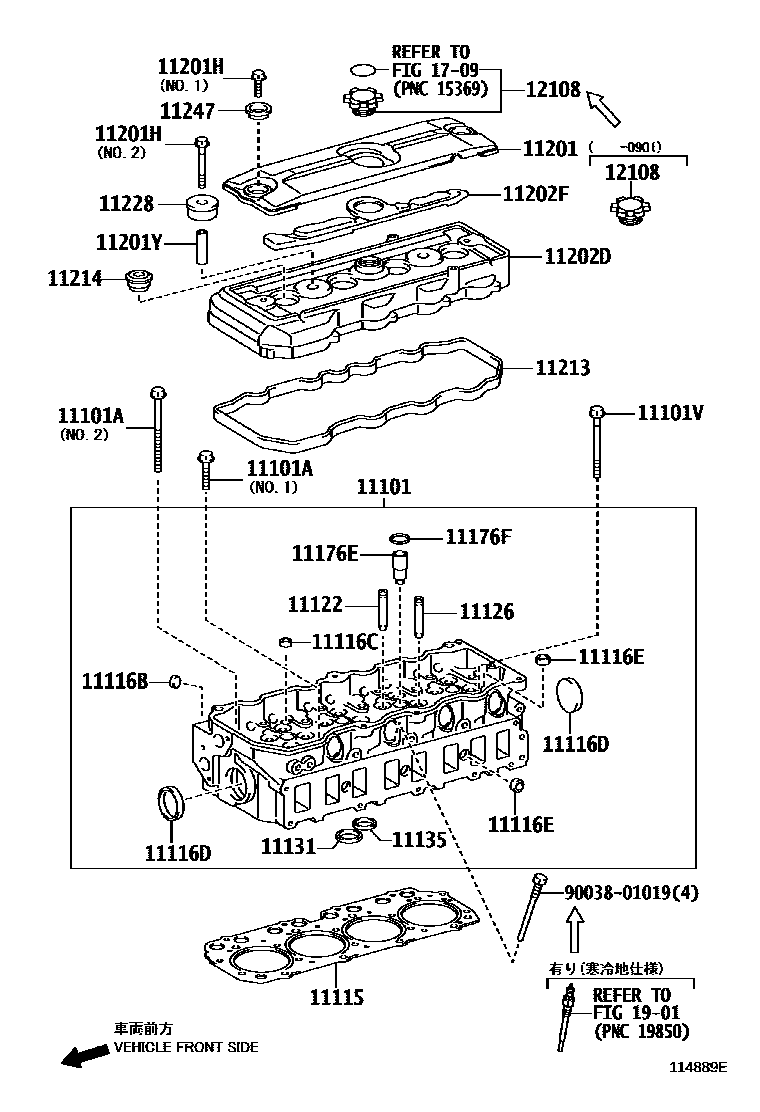

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-78130iN04C..XKU414,424200310-200601

main11101-78170iN04C..XKU414,424200601-200610

main11101-78171iN04C..XKU414,424200811-201009

main11101-78172iN04C..XKU414,424201009-201106

11101ABOLT(FOR CYLINDER HEAD SET)

main90031-05144×3iN04C..XKU414,424200310-200610

main90910-02155×18iN04C..XKU414,424200310-200610

11101VBOLT(FOR CYLINDER HEAD SET SUB)

main90031-05152iN04C..XKU414,424200310-200610

11115GASKET, CYLINDER HEAD

main11115-78050iN04C..XKU414,424200310-200406

main11115-78051iN04C..XKU414,424200610-201105

main11115-E0030iN04C..XKU414,424201105-201106

11116BPLUG, TIGHT, NO.2

main90033-31028×4iN04C..XKU414,424200310-200610

11116CPLUG, TIGHT, NO.3

main90033-31020×5iN04C..XKU414,424200310-200610

11116DPLUG, TIGHT, NO.4

main90033-31026×2iN04C..XKU414,424200310-200610

11116EPLUG, TIGHT, NO.5

main90033-31022×11iN04C..XKU414,424200310-200610

11122BUSH, INTAKE VALVE GUIDE

main11122-89101×8iN04C..XKU414,424200310-200610

11126BUSH, EXHAUST VALVE GUIDE

main11122-89101×8iN04C..XKU414,424200310-200610

11131SEAT, INTAKE VALVE

main11131-78060×8iN04C..XKU414,424200610-201106

11135SEAT, EXHAUST VALVE

main11135-78050×8iN04C..XKU414,424200310-200610

11176ESEAT, INJECTION NOZZLE

main11176-78010×4iN04C..XKU414,424200610-201106

11176FGASKET (FOR INJECTION NOZZLE SEAT)

main90034-30044×4iN04C..XKU414,424200610-201106

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-78030iN04C..XKU414,424200310-200610

11201HBOLT(FOR CYLINDER HEAD COVER)

main90031-05123×2iN04C..XKU414,424200310-200610

main90031-05133×2iN04C..XKU414,424200310-200610

11201YSPACER(FOR CYLINDER HEAD COVER)

main90035-60073×2iN04C..XKU414,424200310-200610

11202DCOVER SUB-ASSY, CYLINDER HEAD, NO.2

main11202-78010iN04C..XKU414,424200310-200610

main11211-78090iN04C..XKU414,424200610-201101

main11211-E0011iN04C..XKU414,424201101-201106

11202FRUBBER, CUSHION(FOR CYLINDER HEAD COVER)

main23249-78010iN04C..XKU414,424200310-200610

11213GASKET, CYLINDER HEAD COVER

main11213-78030iN04C..XKU414,424200310-200610

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-78011×4iN04C..XKU414,424200310-200610

11228CUSHION, CYLINDER HEAD COVER

main11228-78020×2iN04C..XKU414,424200310-200610

11247STAY, CYLINDER HEAD COVER

main11247-78010×2iN04C..XKU414,424200310-200610

12108CAP SUB-ASSY, OIL FILLER

main12108-78010iN04C..XKU414,424200310-200610

main12180-78010iN04C..XKU414,424200901

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

1901IGNITION COIL & SPARK PLUG / GLOW PLUG

→ Go to FIG 19-01

9003801019

main90038-01019

27 parts on this diagram · 1 diagram in section
