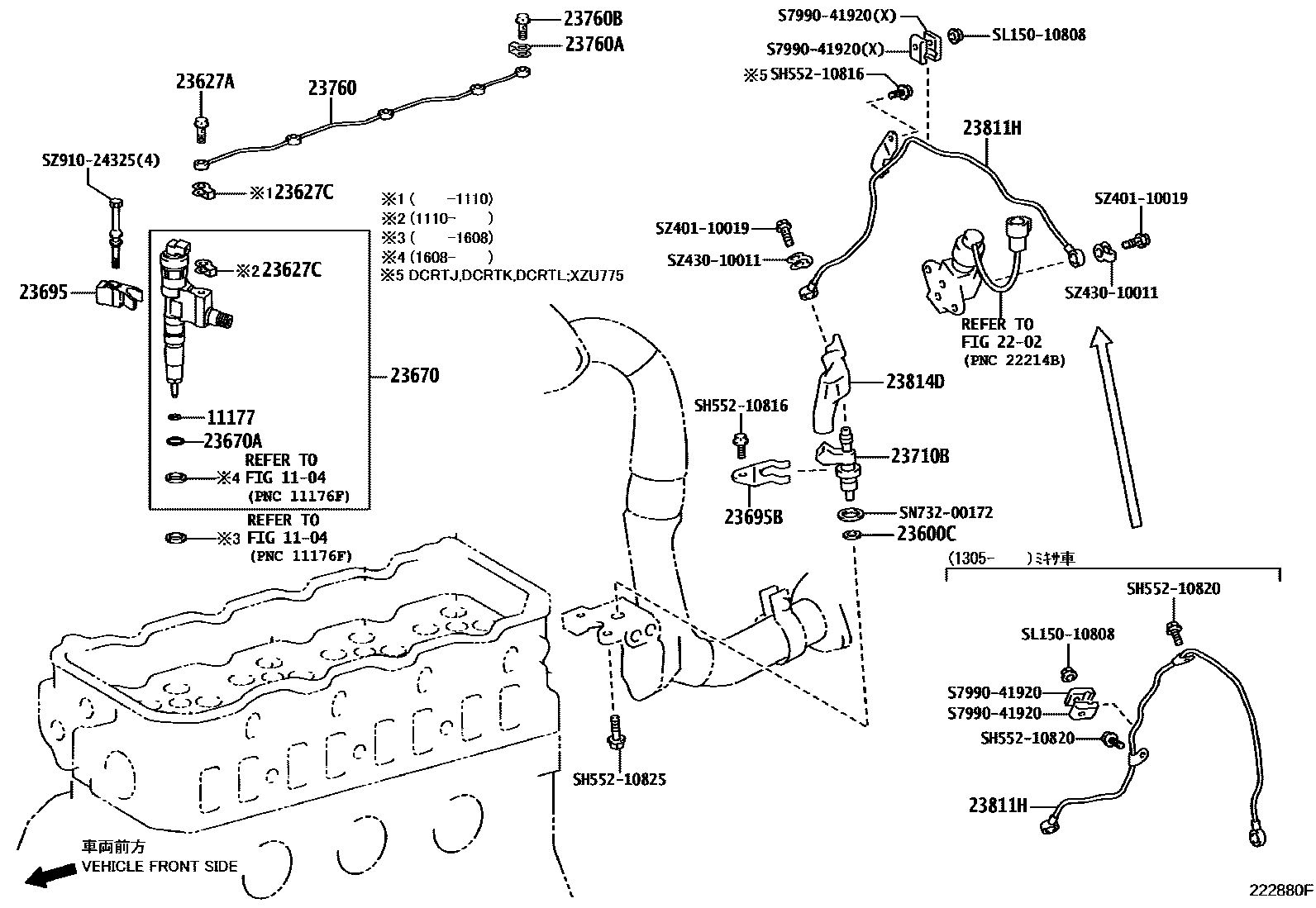

INJECTION NOZZLE

0001 1 0002 1

1104

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050iN04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775201107-202103

2202

23600CGASKET(FOR HOLDER & NOZZLE SET)

mainS236611340iN04C..XZU710..T5..DCRTL..CBU201107-202103

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN04C..XZU73#..DCVUO;N04C..XZC710,XZU70#,71#,72#,775..DCVUO,DCWDO201210-202103

mainS228351570iN04C..XZC710,XZU700,710,720,730,775201107-201210

23627CWASHER(FOR NOZZLE)

mainSZ20908024iN04C..XZU710..T5..DCRTL..CBU201107-202103

23670INJECTOR ASSY

main23670-E9250iN04C..XZC710,XZU700,710,720,730,775201107-201109

sub23670-E9260

main23670-E9260iN04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775201110-201508

sub23670-E9261

main23670-E9261iN04C..XZC710,XZU700,710,720,730,775201508-201608

sub23670-E9262

main23670-E9262iN04C..XZC710,XZU700,710,720,730,775201608-201702

sub23670-E9263

main23670-E9263iN04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL201702-201905

sub23670-E9264

main23670-E9300iN04C..XZU700,710,720,730..DCRVT,DCRVU201705-201811

sub23670-E9301

main23670-E9301iN04C..XZU700,710,720,730..DCRVT,DCRVU201811-202103

23670ARING, O(FOR INJECTOR ASSY)

main15518-E0010iN04C..XZC710,XZU700,710,720,730,775201602-201701

subSZ301-19015

main15518-E0011iN04C..XZU73#..DCVUO;N04C..XZC710,XZU70#,71#,72#,775..DCVUO,DCWDO201702-202103

mainSZ30119001iN04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775201107-201601

23695CLAMP, NOZZLE HOLDER, NO.1

mainS111951140iN04C..XZU710..T5..DCRTL..CBU201107-202103

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-E0080iN04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775201107-202103

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-E0020iN04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775201107-201905

main23710-E0030iN04C..XZU700,710,720,730..DCRVT,DCRVU201705-202001

sub23710-E0031

main23710-E0031iN04C..XZU700,71#,72#,73#..DCVUO202002-202103

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78031iN04C..XZU700,71#,72#,73#..DCVUO201905-202103

mainS230812630iN04C..XZC710,XZU70#,71#,72#,73#,775201107-201905

23760AGASKET

mainSZ20908024iN04C..XZU710..T5..DCRTL..CBU201107-202103

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main21811-E0060iN04C..XZC710,XZU70#,71#,72#,73#,775201210-202103

mainSZ40108003iN04C..XZC710,XZU700,710,720,730,775201107-201210

sub21811-E0060

23811HPIPE, FUEL, NO.1

main23801-78080iN04C..XZU700,710,720,730..DCRVT,DCRVU201705-201905

main23801-78251iN04C..XZU73#..DCVUO;N04C..XZC710,XZU70#,71#,72#..DCVUO,DCWDO201905-202103

main23801-78262iN04C..XZU775..DCWDO201905

main23801-E0300iN04C..XZC710,XZU700,710,720,730201107-201201

sub23801-E0301

main23801-E0301iN04C..XZU710..T5..DCRTL..CBU201201-201905

main23801-E0310iN04C..XZU775201108-201201

sub23801-E0311

main23801-E0311iN04C..XZU775201201-201905

23814DPIPE, FUEL DELIVERY

main23814-E0620iN04C..XZU710..T5..DCRTL..CBU201107-201706

sub23814-E0621

main23814-E0621iN04C..XZU73#..DCVUO;N04C..XZC710,XZU70#,71#,72#,775..DCVUO,DCWDO201707-202103

S799041920CLIP SUB-ASSY

mainS7990-41920

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SH55210825

mainSH552-10825

SL15010808

mainSL150-10808

SN73200172

mainSN732-00172

SZ40110019

mainSZ401-10019

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ91024325

mainSZ910-24325

25 parts on this diagram · 2 diagrams in section
