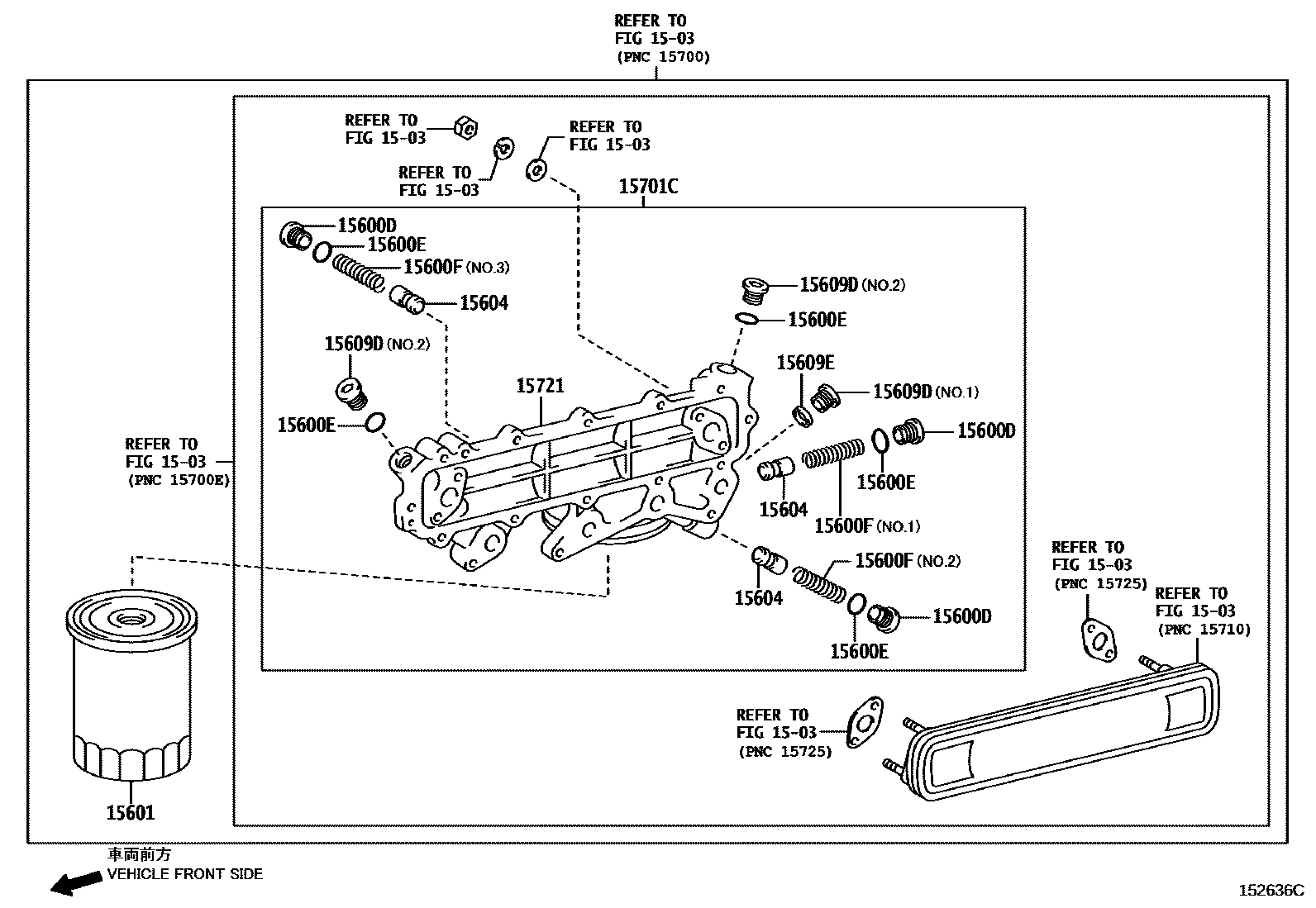

OIL FILTER

0001 1 0003 1 0004 1

1503

15600DPLUG(FOR OIL FILTER)

main15529-78140iN04C..XZU700,71#,72#,73#..DCVUO201905-202103

main15529-78140iN04C..XZU73#..DCVUO;N04C..XZC710,XZU70#,71#,72#,775..DCVUO,DCWDO202103

main15529-EV010iN04C..XZU700,71#,72#,73#..DCVUO201905-202103

main15529-EV010iN04C..XZU73#..DCWDO202103

main21677-78140iN04C..XZU700,71#,72#,73#..DCVUO201905-202103

main21677-78140iN04C..XZU73#..DCWDO202103

main21784-78140iN04C..XZU700,71#,72#,73#..DCVUO201905-202103

main21784-78140iN04C..XZU73#..DCVUO;N04C..XZC710,XZU70#,71#,72#,775..DCVUO,DCWDO202103

mainS157161110iN04C..XZC710,XZU70#,71#,72#,73#,775201107-201905

15600EWASHER(FOR OIL FILTER)

mainSZ30118015iN04C..XZU710..T5..DCRTL..CBU201107-201905

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main15661-78140iN04C..XZU73#..DCWDO202103

main15661-78140iN04C..XZU700,71#,72#,73#..DCVUO201905-202103

mainS156611250iN04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775201107-201905

mainS156611250iN04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO201905-202103

mainS156611250iN04C..XZU73#..DCWDO202103

mainS156611370iN04C..XZC710,XZU70#,71#,72#,73#,775201107-201905

mainS156611560iN04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775201107-201905

mainS156611560iN04C..XZU700,71#,72#,73#..DCVUO201905-202103

mainS156611560iN04C..XZU73#..DCVUO;N04C..XZC710,XZU70#,71#,72#,775..DCVUO,DCWDO202103

15601FILTER SUB-ASSY, OIL

main15601-78140iN04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO201905-202103

main15613-E0080iN04C..XZU710..T5..DCRTL..CBU201107-201905

15604VALVE SUB-ASSY, OIL SAFETY

mainS157141120iN04C..XZU700,71#,72#,73#..DCVUO201107-202103

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

mainS157161070iN04C..XZU710..T5..DCRTL..CBU201107-201905

mainS157261110iN04C..XZU710..T5..DCRTL..CBU201107-201905

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

mainS900756166iN04C..XZU710..T5..DCRTL..CBU201107-201905

15701CCOVER SUB-ASSY, OIL COOLER

mainS157201581iN04C..XZU710..T5..DCRTL..CBU201107-201510

subS1572-01651

mainS157201651iN04C..XZC710,XZU700,710,720,730,775201510-201905

15721COVER, OIL COOLER

mainS157012401iN04C..XZU710..T5..DCRTL..CBU201107-201510

subS1570-12521

mainS157012521iN04C..XZC710,XZU700,710,720,730,775201510-201905

10 parts on this diagram · 3 diagrams in section
