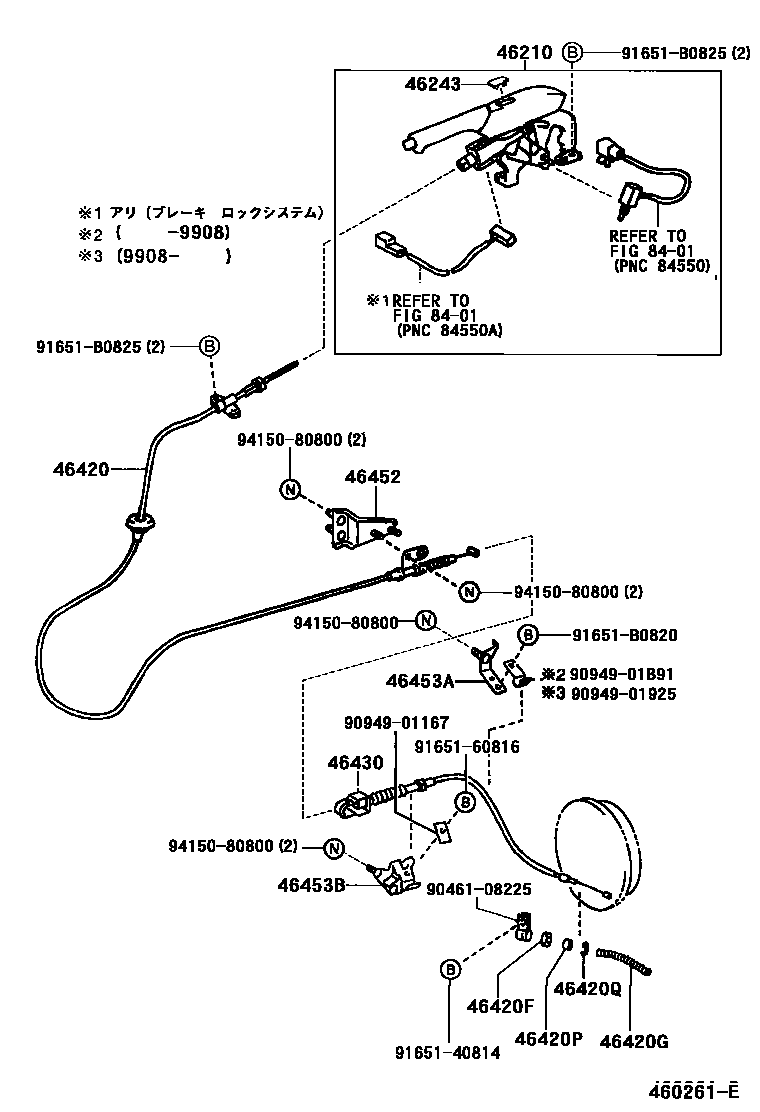

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0012 1 0014 1 0016 1 0017 1MYY6P 0018 1 0021 1 0024 1MYY5A,MYY6P,MYY6S 0026 1MZZ6R

46210LEVER ASSY, PARKING BRAKE

main46210-37010-B0iBU400,410,420,430,XZU382,40#,41#,42#,430199905-200002

DK.CHARCOAL,TRIM1#

sub46210-37011

main46210-37011-B0iBU400,410,420,430,XZU382,40#,41#,42#,430200002-200003

DK.CHARCOAL,TRIM1#

sub46210-37012

main46210-37012-B0iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(29200003-200406

DK.CHARCOAL,TRIM1#

main46210-37012-B0iXZU414,415200310-200705

main46210-37040-B0iXZU401..T3..35T..IV3;BU420,XZU400,42#..IV3,IV6;BU410,XZU41#..T3..(IV3,IV6)199905-200003

sub46210-37041

main46210-37041-B0iXZU42#..4FC..IV3;XZU411..T3..4FC..IV3;XZU421..6F..20T..IV3;BU420,XZU412..(CNG,TDEFI)..IV3;BU410,XZU411..T3..(DSLL,TDEFI)..IV3200003-200209

sub46210-37042

main46210-37042-B0iXZU420..6F..IV3;XZU400,410..(DM7,T3)..(IV3,IV6)200209-200610

main46210-37091-B0iXZU388,40#,41#,42#,433..DCRL,DSL,DSLL200310-200705

DK.CHARCOAL,TRIM1#

main46210-37100-B0iXZU454,488;XZU414..T3..6FC;XZU424..T3..30T;XZU424..6FC..35T;XZU414..T4..35T..DCRTK;XZU424..35T..DCRTK..CBU;XZU414..(T4,T5)..(DCRTJ,DCRUE);XZU414..T3..(DCRTJ,DCRUE).200705-200912

sub46210-37101

main46210-37101-B0iXZU414..DCB..T5201001-201106

sub46210-37240

sub46211-37070

main46210-37110-B0iXZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200610-200912

DK.CHARCOAL,TRIM1#

sub46210-37111

main46210-37111-B0iXZU404..5F..30T;XZU414..DCB..T5201001-201106

DK.CHARCOAL,TRIM1#

sub46210-37250

sub46211-37080

main46210-37120-B0iXZU424..6F..35T..DCRTK..IV3;XZU404..(DM7,T3)..DCRTK..IV3;XZU424..MTM..(DCRTJ,DCRUE)..IV3;XZU414..T3..MTM..(DCRTJ,DCRTK,DCRUE)..IV3200610-200910

sub46210-37121

main46210-37121-B0iXZU424..6F..35T..DCRTK..IV3;XZU404..(DM7,T3)..DCRTK..IV3;XZU424..MTM..(DCRTJ,DCRUE)..IV3;XZU414..T3..MTM..(DCRTJ,DCRTK,DCRUE)..IV3200911-200912

sub46210-37122

main46210-37122-B0iXZU424..6F..35T..DCRTK..IV3;XZU404..(DM7,T3)..DCRTK..IV3;XZU424..MTM..(DCRTJ,DCRUE)..IV3;XZU414..T3..MTM..(DCRTJ,DCRTK,DCRUE)..IV3201001-201010

sub46210-37123

main46210-37123-B0iXZU424..6F..35T..DCRTK..IV3;XZU404..(DM7,T3)..DCRTK..IV3;XZU424..MTM..(DCRTJ,DCRUE)..IV3;XZU414..T3..MTM..(DCRTJ,DCRTK,DCRUE)..IV3201011-201104

sub46210-37124

main46210-37124-B0iXZU424..6F..35T..DCRTK..IV3;XZU404..(DM7,T3)..DCRTK..IV3;XZU424..MTM..(DCRTJ,DCRUE)..IV3;XZU414..T3..MTM..(DCRTJ,DCRTK,DCRUE)..IV3201105-201106

sub46210-37260

sub46211-37090

46243COVER, PARKING BRAKE LEVER

main46243-37020-B0iXZU411..T3..DSLL200002-200705

DK.CHARCOAL,TRIM1#

sub46243-37020

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37240iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430199905-200705

main46420-37260iXZU382199908-200406

main46420-37440iXZU414..DCR200310-200705

main46420-37530iXZU388200406-200610

main46420-37540iXZU401,411,421200406-200610

main46420-37550iXZU413,423,433200406-200610

main46420-37630iXZU404,414,424,454..DCRTJ,DCRTK,DCRTM,DCRUE200610-200911

sub46420-37631

main46420-37631iXZU404,414,424,454..DCRTJ,DCRTK,DCRTM,DCRUE200912

main46420-37640iXZU488200610

main46420-37730iXZU414,424,434..DCRTL200610

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXZU412..20T..(CNG,LPG)199905-200705

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI)199905-200705

46420PSPACER, PARKING BRAKE

main90560-08002iXZU412..20T..(CNG,LPG)199905-200705

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXZU404,414,424,454..(5F,6FC)..20T199905-200705

main96160-01200iXZU414,415200310-200406

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37260iXZU382199908-200406

main46430-37400iBZU410..20T199908-200705

main46430-37410iXZU421..T5..5F;XZU402,410..20T;XZU421..T4..(4FC,5F)..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)199905-200406

main46430-37420iXZU412..5F..30T199908-200705

main46430-37430iXZU421..T3..6F;XZU411,421..T4..(295T,30T);XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,401,410,412,420..(30T,35T,40T,40TOV)..DSL199905-200406

main46430-37460iXZU414,415200310-200902

sub46430-37461

main46430-37461iXZU404,414,424..6F..(DCRTK,DCRTM,DCRUE)200903-201106

main46430-37740iXZU388200406-200902

sub46430-37741

main46430-37741iXZU488200903-201106

main46430-37790iXZU404,414,424..6FC..(30T,35T)200406-201106

main46430-37800iXZU401,411,421..5F..30T200406-200610

main46430-37810iXZU401,411,421..5F..20T200406-200610

main46430-37820iXZU401,411,421..6FC..20T200406-200610

main46430-37830iXZU414,424..6FC..20T200406-201106

main46430-37840iXZU413,423,433200406-200610

main46430-37850iXZU401,411,421..6FC..30T200406-200610

main46430-37A40iXZU404,414,424,454..5F..20T200610-201106

main46430-37A50iXZU404,414,424..5F..30T200610-201106

main46430-37A90iXZU414,424,434..DCRTL200610-201106

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-37040iXZU382199908-200406

main46452-37050iXZU412..CNG,LPG199905-200705

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37060iXZU382199908-200406

main46453-37100iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200705

main46453-37200iXZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)200406-200705

main46453-37220iXZU388200406-200610

sub46453-37221

main46453-37250iXZU414..DCB200406-200610

46453BBRACKET, CABLE SUPPORT, NO.3

main46453-37110iXZU412..CNG,LPG199905-200705

mainSU00200538iXZU413,423,433200406-200610

8401

9046108225

main90461-08225

9094901167

main90949-01167

9094901925

main90949-01925

9094901B91

main90949-01B91

9165140814

main91651-40814

9165160816

main91651-60816

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9415080800

main94150-80800

21 parts on this diagram · 17 diagrams in section
