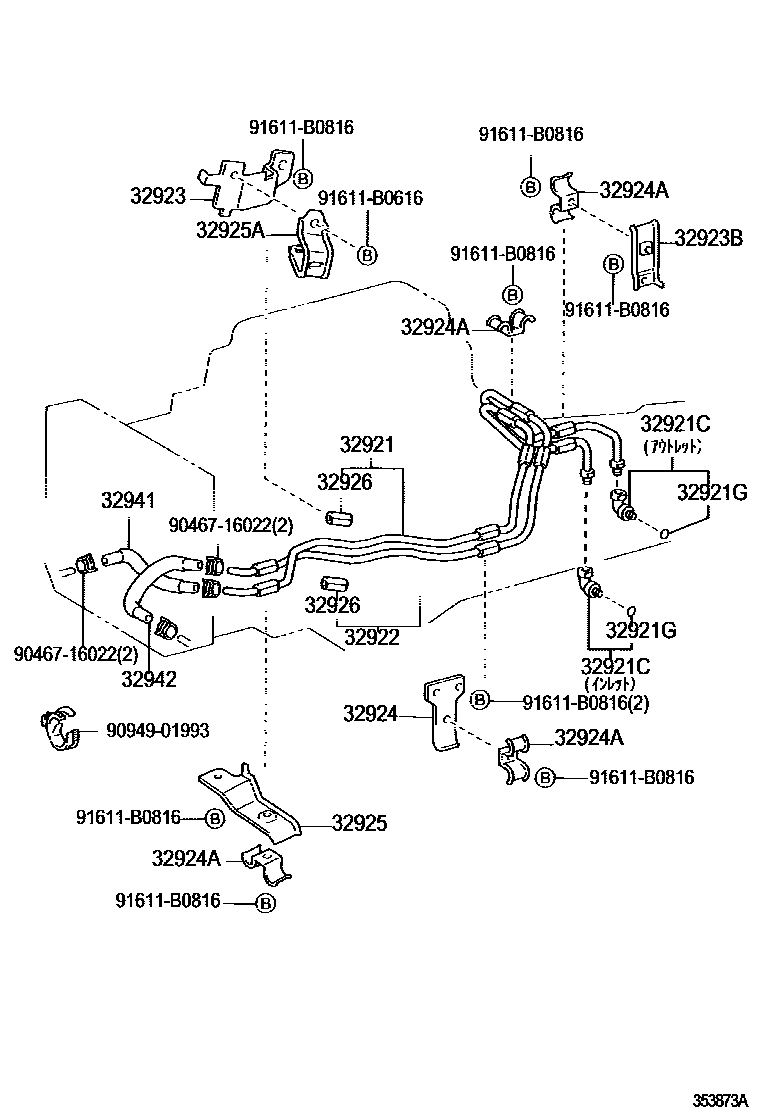

OIL COOLER & TUBE (ATM)

0001 1A443E 0002 1A443E 0003 1A860 0004 1A860

32921TUBE, OIL COOLER INLET, NO.1

main32921-37060iXZU421..(T3,T5)..4FC199905-200206

main32921-37090iBU410,420,430..4FC200005-200406

32921CUNION(FOR OIL COOLER TUBE)

main90407-20006iXZU421..(T3,T5)..4FC199905-200206

main90407-20007iBU410,420,430..4FC200005-200406

main90407-20008iXZU421..(T3,T5)..4FC199905-200206

main90407-20009iXZU404,414,424,454..6FC200610-201106

main90407-20010iXZU404,414,424,454..6FC200610-201106

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iXZU421..(T3,T5)..4FC199905-200206

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-37060iXZU421..T4..4FC;XZU401,402,410,411,412,420..4FC199905-200406

main32922-37090iBU410,420,430..4FC200005-200406

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32927-37010iXZU421..(T3,T5)..4FC199905-200206

main32927-37021iXZU414,424..6FC200406-200610

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-25010iXZU421..(T3,T5)..4FC199905-200206

main32923-37011iXZU401,411,414,421,424..6FC200406-200610

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-37010iXZU421..(T3,T5)..4FC199905-200206

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12076×4iXZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC199905-200406

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-37020iXZU421..(T3,T5)..4FC199905-200206

main32925-37070iBU410,420,430..4FC200005-200406

32925ACLAMP, FLEXIBLE HOSE, NO.2

main32929-25020iXZU421..(T3,T5)..4FC199905-200206

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×10iXZU421..T4..4FC;XZU401,402,410,411,412,420..4FC199905-200406

32941HOSE, OIL COOLER INLET, NO.1

main32941-37040iXZU401,411,421..6FC200406-200610

main32941-37080iBU410,420,430..4FC200005-200406

main32941-37140iXZU414,424..6FC200406-200610

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-37020iXZU421..(T3,T5)..4FC199905-200206

9046716022

main90467-16022

9094901993

main90949-01993

91611B0616

main91611-B0616

91611B0816

main91611-B0816

17 parts on this diagram · 4 diagrams in section
