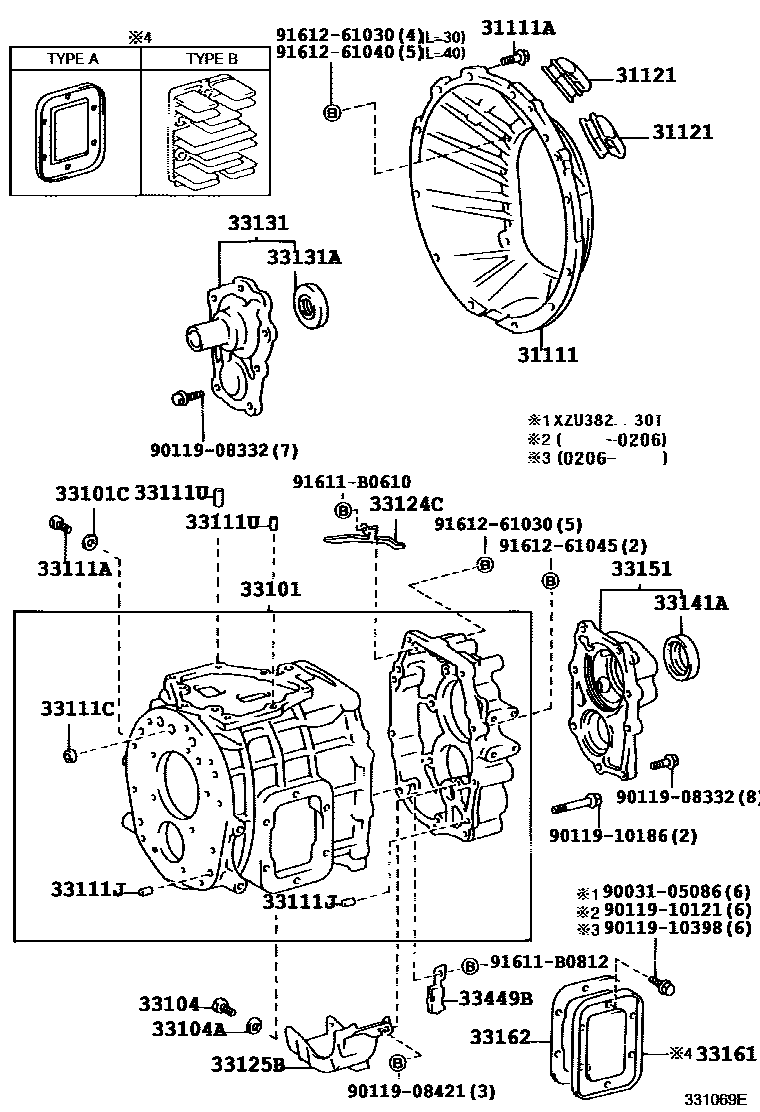

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M155 0002 1H260,H261,H350 0003 1H260,H261,H350 0004 1MYY6P 0005 1H351 0006 1MYY5A 0007 1MYY6P 0009 1MZZ6R 0010 1M550 0011 1MYY5A 0012 1M550 0013 1MYY6S 0015 1MZZ6R

31111HOUSING, CLUTCH

main31111-37050iBZU410199908-200705

main31111-37060iXZU40#,410,420..MTM;XZU411,412,421..5F..(DSL,DSLL);XZU411,412,421,430..6F..(295T,30T,35T,40T)199905-200406

main31111-37070iXZU382199908-200406

main31111-37080iXZU421..6F..IV3;XZU411..T5..5F..IV3;XZU410..T3..30T..IV3;XZU411,420..T4..6F..(295T,35T)..IV3;XZU402,412,420..SCB..(T3,T4)..MTM..(20T,30T,40T)..DSL..IV3199905-200406

main31111-37100iXZU404,414,424,454..5F200406-200610

sub31111-36400

mainSU00200526iXZU388200406-200610

subSU002-01092

mainSU00200534iXZU413,423,433200406-200610

subSU002-01093

mainSU00200667iXZU404,414,424..6F..(DCRTK,DCRTM,DCRUE)200310-200705

subSU002-01091

31111ABOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)

main90119-10898iXZU382,40#,410,420..MTM;XZU411,412,421..5F..(DSL,DSLL);XZU411,412,421,430..6F..(295T,30T,35T,40T)199905-200705

31121COVER, CLUTCH HOUSING, NO.1

main31121-28041iXZU404,414,424,488..MTM..(DCRTK,DCRTM,DCRUE)199905-201106

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36103iXZU382..20T199908-200111

sub33101-36104

main33101-36104iXZU382200111-200406

main33101-36130iXZU401,411,421..5F200406-200610

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iXZU382..20T199905-200705

mainSU00200149iXZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)200310-200705

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iXZU412..CNG,LPG199905-200705

main90341-18057iXZU404,414,424,454..5F200406-200610

mainSU00200164iXZU404,413,414,415,423,424,433..6F..(DCRL,DSLL)200310-200705

subSU002-00945

mainSU00200945iXZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)200610

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iXZU412..5F..DSL;BZU410,XZU40#,411,421..5F199905-200705

mainSU00200149iXZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)200310-200705

33111CASE, MANUAL TRANSMISSION

main33111-37041iXZU412..CNG,LPG199905-200705

mainSU00200367iXZU414,415200310-200705

subSU002-00713

mainSU00200406iXZU413,423,433200406-200610

subSU002-00959

mainSU00200959iXZU414,424,434..DCRTL200610

subSU002-01136

33111APLUG, MANUAL TRANSMISSION CASE

main90341-14008iXZU401,411,421..5F200406-200610

main90341-18006iXZU382..20T199905-200705

33111CPLUG(FOR TRANSMISSION CASE)

main96411-11600iXZU382..20T199908-200406

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10232iXZU401,411,421..5F200406-201106

main90250-12002iXZU382..20T199908-200406

mainSU00200155iXZU388200406-201106

mainSU00200156iXZU404,413,414,415,423,424,433..6F..(DCR,DCRL,DSLL)200310-201106

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iXZU382..20T199908-200406

main90253-11021iXZU404,414,424,454..5F200406-200610

main90253-13017iXZU382..30T199908-200406

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36040iXZU382..20T199908-200406

main33124-37010iBZU410199905-200705

main33124-37020iXZU404,414,424,454..5F200406-200610

sub33124-37021

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36020iXZU382..20T199908-200406

main33125-37020iXZU412..CNG,LPG199905-200705

main33125-60010iBU410,420,430,XZU410,411,412,42#,430..6F199905-200406

33131RETAINER, BEARING, FRONT(MTM)

main33018-37020iXZU382..30T199908-200406

main33018-37050iXZU401,411,421..5F200406-200610

main33131-37080iXZU410,411,412,42#,430..6F199905-200406

main33131-60070iBZU410199908-200705

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-35023iXZU382..20T199905-200705

mainSU00200148iXZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)200310-200705

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-48011iXZU404,414,424,454..5F200406-201106

main90311-48016iXZU382..20T199908-200406

mainSU00200154iXZU414,415200310-201106

mainSU00200434iXZU414,424,434..DCRTL200406-201106

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36050iXZU382..20T199908-200406

main33017-37030iXZU401,411,421..5F200406-200610

sub33017-37070

main33151-37011iXZU412..5F..DSL;BZU410,XZU40#,411,421..5F199905-200705

mainSU00200168iXZU414,415200310-200705

mainSU00200400iXZU413,423,433200406-200610

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-36010iXZU411,412,421..6F;BU400,410,420,430,XZU410,420,430..MTM199905-200406

main33161-36010iXZU401,411,421..5F200406-200705

main33161-36040iXZU411,412,421..6F;BU410,420,430,XZU382,410,420,430..MTM200206-200406

main33161-37040iXZU382..30T200107-200111

main33161-37050iXZU382..30T200106-200107

sub33161-37040

mainSU00200150iXZU414,415200310-200705

mainSU00200407iXZU414,424,434..DCRTL200406-200610

33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER

main33162-36020iXZU412..CNG,LPG199905-200705

main33162-37030iXZU382..30T200106-200111

mainSU00200147iXZU388,404,414,415,424..MTM..(DCRL,DSLL)200310-200705

mainSU00200537iXZU413,423,433200406-200610

33449BMAGNET, TRANSMISSION

main33449-35010iBZU410199905-200705

main33449-36010iXZU382..20T199908-200406

mainSU00200157iXZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)200310-200705

9003105086

main90031-05086

9011908332

main90119-08332

9011908421

main90119-08421

9011910121

main90119-10121

9011910186

main90119-10186

9011910398

main90119-10398

91611B0610

main91611-B0610

91611B0812

main91611-B0812

9161261030

main91612-61030

9161261040

main91612-61040

9161261045

main91612-61045

32 parts on this diagram · 13 diagrams in section
