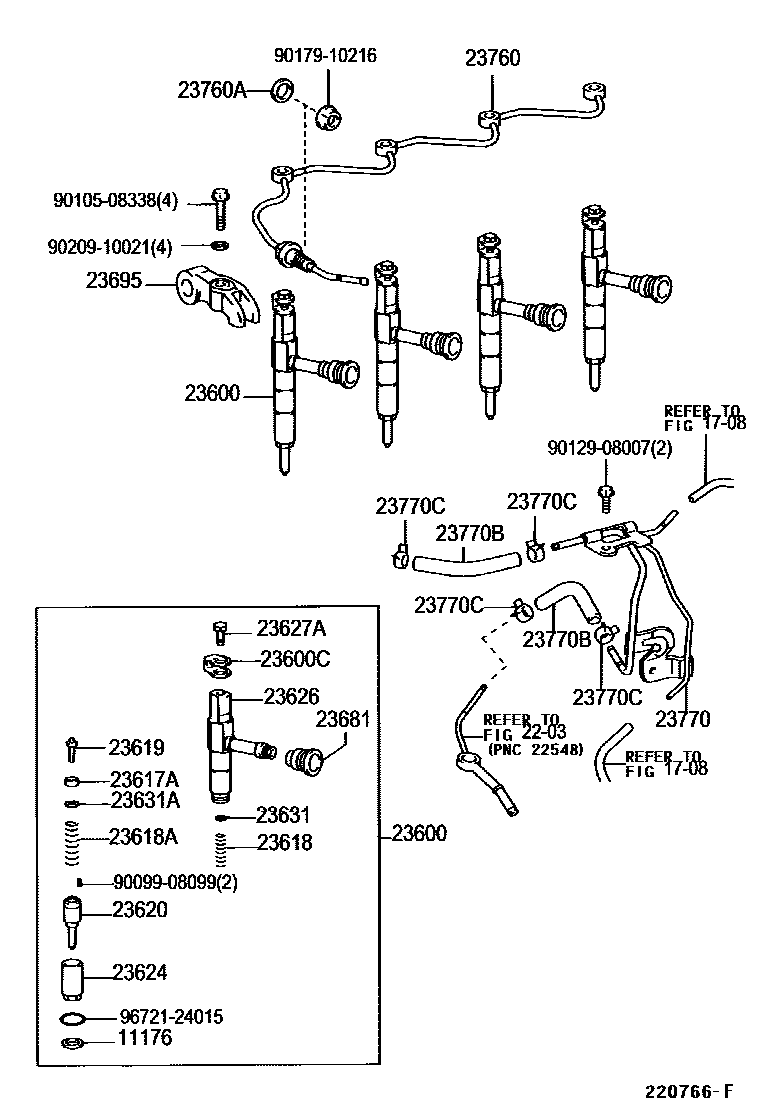

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1��������� ���� 0005 1��-�� ����� 0006 1����� ����� 0007 1��������� ���� 0008 1����� �����

11176SEAT, INJECTION NOZZLE

main11176-17020i15BFTE..BU400,410,420,430199908-200006

sub11176-27010

main11176-27010i15BFTE..BU400,410,420,430200006-200406

sub11176-27011

1708

2203

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59305i15BFTE..BU400,410,420,430199908-200406

sub23600-59306

main23600-78030iJ05C..XZU400,410,420,430199905-200009

sub23600-78031

main23600-78031iJ05C..XZU430..40TOV200009-200406

subS2361-02162

main23600-78040iS05#..XZU382,401,402,411,412,421199905-200406

subS2361-02143

main23600-78070iS05D..XZU411..DSLL200210-200406

23600CGASKET(FOR HOLDER & NOZZLE SET)

main23682-78020iN04C..XZU415;N04C..XZU414..DCR200310-200705

subS2366-11340

main90032-09030iJ05D,S05D..XZU401,411,413,421,423,433200406-200610

sub90032-09032

main90904-30006i15BFTE..BU400,410,420,430199908-200406

23617ASEAT, PRESSURE SPRING, NO.1

main23617-17070i15BFTE..BU400,410,420,430199908-200406

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-17060i15BFTE..BU400,410,420,430199908-200406

main23618-89101iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2361-51270

23618ASPRING, NOZZLE HOLDER PRESSURE, NO.1

main23618-17080i15BFTE..BU400,410,420,430199908-200406

main23618-89102iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2361-51350

23619PIN, NOZZLE HOLDER PRESSURE

main23619-17070i15BFTE..BU400,410,420,430199908-200406

main23619-89101iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2361-61310

23620NOZZLE ASSY

main23602-58100i15BFTE..BU400,410,420,430199908-200406

main23620-78070iS05D..XZU411..DSLL200210-200406

main23620-89103iS05#..XZU382,401,402,411,412,421199905-200004

sub23620-89105

main23620-89104iJ05C..XZU400,410,420,430199905-200009

sub23620-89106

main23620-89105iS05#..XZU382,401,402,411,412,421..DSL200004-200406

subS2365-01982

main23620-89106iJ05C..XZU430..40TOV200009-200406

subS2365-01951

23624NUT, NOZZLE RETAINING

main23624-58100i15BFTE..BU400,410,420,430199908-200406

main23624-89101iS05#..XZU382,401,402,411,412,421200004-200406

subS2363-31880

main23624-89102iS05#..XZU382,401,402,411,412,421199905-200004

sub23624-89101

main23624-89103iJ05C..XZU400,410,420;J05C..XZU430..35T,40T199905-200406

subS2363-32070

23626BODY SUB-ASSY, NOZZLE

main23626-58100i15BFTE..BU400,410,420,430199908-200406

main23626-78070iS05D..XZU411..DSLL200210-200406

main23626-89102iS05#..XZU382,401,402,411,412,421..DSL199905-200406

main23626-89103iJ05C..XZU430..40TOV199905-200406

23627ASCREW, FOLLOW(FOR NOZZLE)

main23656-78030i15BFTE..BU400,410,420,430199908-200406

main23656-89101iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

sub90034-01017

main90034-01017iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200310-200705

sub21811-E0050

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-17010i15BFTE..BU400,410,420,430199908-200406

main23631-17029i15BFTE..BU400,410,420,430199908-200406

main23631-17030i15BFTE..BU400,410,420,430199908-200406

main23631-17031i15BFTE..BU400,410,420,430199908-200406

main23631-17032i15BFTE..BU400,410,420,430199908-200406

main23631-17033i15BFTE..BU400,410,420,430199908-200406

main23631-17034i15BFTE..BU400,410,420,430199908-200406

main23631-17035i15BFTE..BU400,410,420,430199908-200406

main23631-17036i15BFTE..BU400,410,420,430199908-200406

main23631-17037i15BFTE..BU400,410,420,430199908-200406

main23631-17038i15BFTE..BU400,410,420,430199908-200406

main23631-17039i15BFTE..BU400,410,420,430199908-200406

main23631-17040i15BFTE..BU400,410,420,430199908-200406

main23631-17041i15BFTE..BU400,410,420,430199908-200406

main23631-17042i15BFTE..BU400,410,420,430199908-200406

main23631-17043i15BFTE..BU400,410,420,430199908-200406

main23631-17044i15BFTE..BU400,410,420,430199908-200406

main23631-17045i15BFTE..BU400,410,420,430199908-200406

main23631-17046i15BFTE..BU400,410,420,430199908-200406

main23631-17047i15BFTE..BU400,410,420,430199908-200406

main23631-17048i15BFTE..BU400,410,420,430199908-200406

main23631-17049i15BFTE..BU400,410,420,430199908-200406

main23631-17050i15BFTE..BU400,410,420,430199908-200406

main23631-17051i15BFTE..BU400,410,420,430199908-200406

main23631-17052i15BFTE..BU400,410,420,430199908-200406

main23631-17053i15BFTE..BU400,410,420,430199908-200406

main23631-17054i15BFTE..BU400,410,420,430199908-200406

main23631-17055i15BFTE..BU400,410,420,430199908-200406

main23631-17056i15BFTE..BU400,410,420,430199908-200406

main23631-17057i15BFTE..BU400,410,420,430199908-200406

main23631-17058i15BFTE..BU400,410,420,430199908-200406

main23631-17059i15BFTE..BU400,410,420,430199908-200406

main23631-17060i15BFTE..BU400,410,420,430199908-200406

main23631-17061i15BFTE..BU400,410,420,430199908-200406

main23631-17062i15BFTE..BU400,410,420,430199908-200406

main23631-17063i15BFTE..BU400,410,420,430199908-200406

main23631-17064i15BFTE..BU400,410,420,430199908-200406

main23631-17065i15BFTE..BU400,410,420,430199908-200406

main23631-17066i15BFTE..BU400,410,420,430199908-200406

main23631-17067i15BFTE..BU400,410,420,430199908-200406

main23631-17068i15BFTE..BU400,410,420,430199908-200406

main23631-17069i15BFTE..BU400,410,420,430199908-200406

main23631-17079i15BFTE..BU400,410,420,430199908-200406

main23632-17020i15BFTE..BU400,410,420,430199908-200406

main23632-17021i15BFTE..BU400,410,420,430199908-200406

main23632-17022i15BFTE..BU400,410,420,430199908-200406

main23632-17023i15BFTE..BU400,410,420,430199908-200406

main23632-17024i15BFTE..BU400,410,420,430199908-200406

main23632-17025i15BFTE..BU400,410,420,430199908-200406

main23632-17026i15BFTE..BU400,410,420,430199908-200406

main23632-17027i15BFTE..BU400,410,420,430199908-200406

main23632-17028i15BFTE..BU400,410,420,430199908-200406

main23632-17029i15BFTE..BU400,410,420,430199908-200406

main23632-17030i15BFTE..BU400,410,420,430199908-200406

main23632-17031i15BFTE..BU400,410,420,430199908-200406

main23632-17032i15BFTE..BU400,410,420,430199908-200406

main23632-17033i15BFTE..BU400,410,420,430199908-200406

main23632-17037i15BFTE..BU400,410,420,430199908-200406

23631AWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)

main23631-17020i15BFTE..BU400,410,420,430199908-200406

main23631-17021i15BFTE..BU400,410,420,430199908-200406

main23631-17022i15BFTE..BU400,410,420,430199908-200406

main23631-17023i15BFTE..BU400,410,420,430199908-200406

main23631-17024i15BFTE..BU400,410,420,430199908-200406

main23631-17025i15BFTE..BU400,410,420,430199908-200406

main23631-17026i15BFTE..BU400,410,420,430199908-200406

main23631-17027i15BFTE..BU400,410,420,430199908-200406

main23631-17028i15BFTE..BU400,410,420,430199908-200406

main23631-17070i15BFTE..BU400,410,420,430199908-200406

main23631-17071i15BFTE..BU400,410,420,430199908-200406

main23631-17072i15BFTE..BU400,410,420,430199908-200406

main23631-17073i15BFTE..BU400,410,420,430199908-200406

main23631-58010i15BFTE..BU400,410,420,430199908-200406

main23631-58011i15BFTE..BU400,410,420,430199908-200406

main23631-58012i15BFTE..BU400,410,420,430199908-200406

main23631-58013i15BFTE..BU400,410,420,430199908-200406

main23631-58014i15BFTE..BU400,410,420,430199908-200406

main23631-58015i15BFTE..BU400,410,420,430199908-200406

main23631-58016i15BFTE..BU400,410,420,430199908-200406

main23631-58017i15BFTE..BU400,410,420,430199908-200406

main23631-58018i15BFTE..BU400,410,420,430199908-200406

main23631-58019i15BFTE..BU400,410,420,430199908-200406

main23631-89102iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57040

main23631-89103iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57050

main23631-89104iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57060

main23631-89105iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57070

main23631-89106iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57080

main23631-89107iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57090

main23631-89108iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57100

main23631-89109iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57110

main23631-89110iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57120

main23631-89111iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57130

main23631-89112iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57140

main23631-89113iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57150

main23631-89114iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57160

main23631-89115iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57760

main23631-89116iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57770

main23631-89117iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57780

main23631-89118iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57790

main23631-89119iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57800

main23631-89120iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57810

main23631-89121iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57820

main23631-89141iJ05C..XZU400,410,420;J05C..XZU430..35T,40T199905-200406

subS2288-57180

main23631-89142iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57190

main23631-89143iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57200

main23631-89144iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57210

main23631-89145iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57220

main23631-89146iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57230

main23631-89147iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57240

main23631-89148iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57250

main23631-89149iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57260

main23631-89150iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57270

main23631-89151iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57280

main23631-89152iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57290

main23631-89153iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57300

main23631-89154iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57310

main23631-89155iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57320

main23631-89156iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57330

main23631-89157iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57680

main23631-89158iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57690

main23631-89159iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57700

main23631-89160iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57710

main23631-89161iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57720

main23631-89162iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57730

main23631-89163iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200406

subS2288-57740

main23631-89164iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57750

main23631-89182iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS2288-57670

main23632-58010i15BFTE..BU400,410,420,430199908-200406

main23632-58011i15BFTE..BU400,410,420,430199908-200406

main23632-58012i15BFTE..BU400,410,420,430199908-200406

main23632-58013i15BFTE..BU400,410,420,430199908-200406

main23632-58014i15BFTE..BU400,410,420,430199908-200406

main23632-58015i15BFTE..BU400,410,420,430199908-200406

main23632-58016i15BFTE..BU400,410,420,430199908-200406

main23632-58017i15BFTE..BU400,410,420,430199908-200406

main23632-58018i15BFTE..BU400,410,420,430199908-200406

main23632-58019i15BFTE..BU400,410,420,430199908-200406

main23633-58010i15BFTE..BU400,410,420,430199908-200406

main23633-58011i15BFTE..BU400,410,420,430199908-200406

main23633-58012i15BFTE..BU400,410,420,430199908-200406

main23633-58013i15BFTE..BU400,410,420,430199908-200406

main23633-58014i15BFTE..BU400,410,420,430199908-200406

main23633-58015i15BFTE..BU400,410,420,430199908-200406

main23633-58016i15BFTE..BU400,410,420,430199908-200406

main23633-58017i15BFTE..BU400,410,420,430199908-200406

main23633-58018i15BFTE..BU400,410,420,430199908-200406

main23633-58019i15BFTE..BU400,410,420,430199908-200406

main23634-58010i15BFTE..BU400,410,420,430199908-200406

main23634-58011i15BFTE..BU400,410,420,430199908-200406

main23634-58012i15BFTE..BU400,410,420,430199908-200406

23681SEAL, NOZZLE HOLDER

main23681-17010i15BFTE..BU400,410,420,430199908-200406

main23681-78010iN04C..XZU388,404,414,415,424..DCRL,DSLL200310-200705

subS2307-41070

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-58010i15BFTE..BU400,410,420,430199908-200406

main23695-78020iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200310-200705

subS1119-51140

main23695-78050iJ05D,S05D..XZU401,411,413,421,423,433200406-200610

subS1119-51180

main23695-89102iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200406

subS1119-51050

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78010iN04C..XZU388,404,414,415,424..DCRL,DSLL200310-201106

subS2308-12630

main23708-78020iJ05D,S05D..XZU401,411,413,421,423,433200406-200610

sub23708-78021

main23761-58011i15BFTE..BU400,410,420,430199908-200406

23760AGASKET

main90032-09030iN04C..XZU388,404,414,415,424..DCRL,DSLL200310-200706

sub90032-09032

main90032-09032iN04C..XZU404,414,424,434,454,488200706

main90430-13002i15BFTE..BU400,410,420,430199908-200406

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23762-58030i15BFTE..BU400,410,420,430199908-200406

23770BHOSE, FUEL

main23271-58090i15BFTE..BU400,410,420,430199908-200406

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-41000i15BFTE..BU400,410,420,430199908-200406

9009908099

main90099-08099

9010508338

main90105-08338

9012908007

main90129-08007

9017910216

main90179-10216

9020910021

main90209-10021

9672124015

main96721-24015

28 parts on this diagram · 8 diagrams in section
