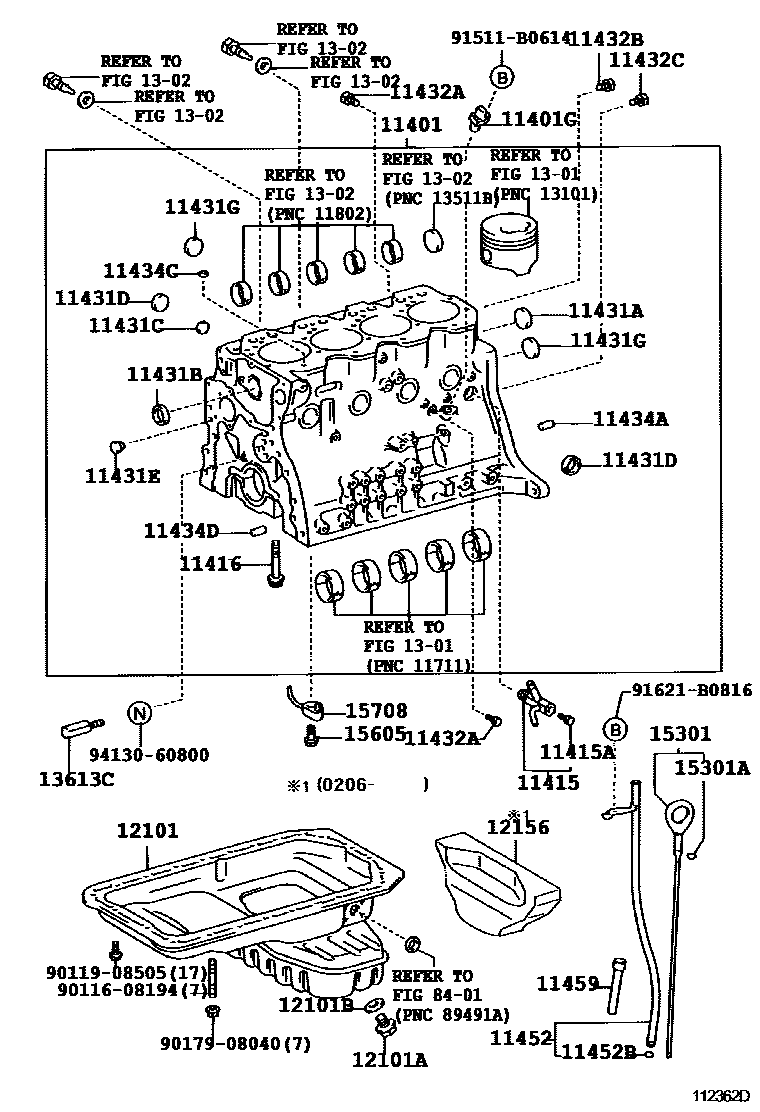

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-49745i1BZFNE..BZU410200306-200406

main11401-49755i1BZFPE..BZU410200306-200406

sub11401-49756

main11401-59635i15BLPG..XZU412200206-200306

main11401-59725i15BFTE..BU400,410,420,430199908-200406

sub11401-59726

sub13511-58031

main11401-59745i15BCNG..XZU412200011-200306

main11401-78020iJ05C..XZU400,410,420,430199905-200109

sub11401-78070

main11401-78030iS05C..XZU382,402,412199905-200201

sub11401-78031

main11401-78031iS05C..XZU382,402;S05C..XZU412..30T;S05C..XZU412..(4FC,5F)..20T200201-200406

sub11401-78032

main11401-78040iS05D..XZU401,411,421..DSL199905-200201

sub11401-78041

main11401-78041iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05D..XZU411..(4FC,5F)..20T..DSL;S05D..XZU401,411..(295T,30T,35T)..DSL200201-200406

sub11401-78042

main11401-78050iS05D..XZU411..DSLL200010-200202

sub11401-78051

main11401-78051iS05D..XZU411..DSLL200202-200206

sub11401-78052

main11401-78070iJ05C..XZU400,410,420,430200109-200201

sub11401-78071

main11401-78071iJ05C..XZU400,410,420;J05C..XZU430..35T,40T200201-200406

sub11410-78270

main11401-78110iS05D..XZU411..DSLL200210-200406

sub11401-78111

main11401-78171iN04C..XZU388,404,414,415,424..DCRL,DSLL200310-200704

sub11410-78291

main11401-78200iS05D..XZU401,411,421200406-200501

sub11401-78201

main11401-78201iS05D..XZU401,411,421200501-200609

sub11410-78260

main11401-78210iJ05D..XZU413,423,433200406-200501

sub11401-78211

main11401-78211iJ05D..XZU413,423,433200501-200609

sub11410-78200

main11401-78272iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL200610-200704

sub11410-78341

main11410-78200iJ05D..XZU413,423,433200609-200610

sub11410-E0500

main11410-78260iS05D..XZU401,411,421200609-200610

main11410-78290iN04C..XZU414..DCR200704-200705

sub11410-78291

main11410-78340iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200704-200804

sub11410-78341

main11410-78341iN04C..XZU404,414,424,434,454,488200804-201106

sub11410-E0691

11401GSENSOR, CRANK POSITION

main90919-05005i15BFTE..BU400,410,420,430199908-200406

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09078i15BFTE..BU400,410,420,430199908-200406

main90910-09095i1BZ#..BZU410200011-200406

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i15BFTE,1BZ#..BU400,410,420,430,BZU410199908-200406

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90031-09052iJ05D,S05D..XZU401,411,413,421,423,433199905-200610

subS1152-11261

main90105-16068i15BFTE..BU400,410,420,430199908-200406

main90105-16069i15BFTE..BU400,410,420,430199908-200406

main90910-02082i15BCNG,15BLPG..XZU412200011-200406

main90910-02083i1BZ#..BZU410200011-200406

main90910-02156iN04C..XZU414,415200310-201106

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90033-31026iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200610-201106

main90033-31026iS05#..XZU382,401,402,411,412,421199905-200705

main90331-50002iJ05C..XZU400,410,420,430199905-200109

main96411-64500i15BCNG,15BLPG..XZU412200011-200306

main96411-64500i15BFTE,1BZ#..BU400,410,420,430,BZU410199908-200406

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90033-31019iJ05C..XZU400,410,420,430199905-200109

main90033-31027iS05#..XZU382,401,402,411,412,421199905-200610

subSZ331-42002

main90033-31035iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200610-201106

main90033-31035iN04C..XZU414,415200310-200705

main90331-50003i15BFTE,1BZ#..BU400,410,420,430,BZU410199908-200705

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90033-31018iJ05C..XZU400,410,420,430199905-200109

main90033-31021iS05#..XZU382,401,402,411,412,421199905-200609

sub90033-31022

main90033-31022iJ05D,S05D..XZU401,411,413,421,423,433200609-200610

subSN411-02216

main90033-31034iN04C..XZU414,415200310-200705

main90033-31034iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200610-201106

main96411-63000i15BFTE,1BZ#..BU400,410,420,430,BZU410199908-200406

main96411-63000i15BCNG,15BLPG..XZU412200011-200306

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90033-31016iJ05C..XZU400,410,420,430199905-200109

main90033-31020iS05#..XZU382,401,402,411,412,421199905-200705

main90033-31020iJ05C,S05#..XZU382,40#,410,411,412,42#,430200206-200610

main90033-31020iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200610-201106

main90033-31023iS05#..XZU382,401,402,411,412,421200206-200610

subSN411-03016

main96411-63500i1BZ#..BZU410199908-200406

main96411-63500i15BCNG,15BLPG..XZU412200011-200306

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90033-31025iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200610

subSN411-02616

main90331-14006i15BCNG,15BLPG..XZU412200011-200306

main90331-14006i15BFTE,1BZ#..BU400,410,420,430,BZU410199908-200406

11431GPLUG, TIGHT

main90033-31019iJ05C..XZU400,410,420,430199905-200109

main90033-31025iS05D..XZU421..(T3,T5)..4FC;S05#..XZU411,412,421..6F..20T199905-200406

subSN411-02616

main90033-31027iJ05C..XZU430..40TOV200109-200406

subSZ331-42002

main96411-65000i15BCNG,15BLPG..XZU412199908-200705

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51007i15BCNG,15BLPG..XZU412199908-200705

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53004i15BCNG,15BLPG..XZU412199908-200406

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i15BCNG,15BLPG..XZU412199908-200406

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90032-50050iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200704-201106

main90250-08015iN04C..XZU388,404,414,415,424..DCRL,DSLL200310-200704

main90250-08120i1BZ#..BZU410199908-200705

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90032-50049iS05#..XZU382,401,402,411,412,421200206-201106

main90250-08016iN04C..XZU388,404,414,415,424..DCRL,DSLL199905-200704

main90253-15008i1BZ#..BZU410199908-200406

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-08120i15BCNG,15BLPG..XZU412199908-200705

11452GUIDE, OIL LEVEL GAGE

main11409-48010i1BZ#..BZU410200011-200406

main11409-78020iJ05D,S05D..XZU401,411,413,421,423,433200406-200509

sub11409-78021

main11409-78021iJ05D,S05D..XZU401,411,413,421,423,433200509-200610

sub11409-E0130

main11409-78030iN04C..XZU414,415200310-200705

subS1210-23941

main11409-78110iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM200610-200710

sub11409-78111

main11409-78111iN04C..XZU404,414,424,434,454,488200710

sub11409-E0022

main11452-58080i15BFTE..BU400,410,420,430199908-200406

main11452-78020iJ05C..XZU400,410,420;J05C..XZU430..35T,40T199905-200406

subS1210-23681

main11452-78050iS05#..XZU382,401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T199905-200406

subS1210-23621

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90033-01058iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,199905-200705

main96721-19010i15BFTE..BU400,410,420,430199908-200406

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-58060i15BFTE..BU400,410,420,430199908-200406

main11459-78020iS05D..XZU421..(T3,T5)..4FC;S05#..XZU411,412,421..6F..20T199905-200406

subS1549-26813

12101PAN SUB-ASSY, OIL

main12101-58170i1BZ#..BZU410200011-200406

main12101-58221i15BFTE..BU400,410,420,430199908-200406

main12101-78020iS05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,199905-200610

sub12101-E0390

main12101-78040iS05C..XZU382199908-200206

sub12101-78041

main12101-78041iS05C..XZU382200206-200406

subS1210-15612

main12101-78090iN04C..XZU414..DCR200310-200705

sub12101-E0450

12101APLUG(FOR OIL PAN DRAIN)

main90033-41020iN04C..XZU414,415199905-200705

main90341-12012i1BZ#..BZU410200210-200406

main90341-12026i15BCNG,15BLPG..XZU412199908-200210

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90034-30046iN04C..XZU414..DCR200506-200802

sub90034-30047

main90034-30047iN04C..XZU404,414,424,434,454,488200802

main90202-18002iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200506

sub90034-30046

main90430-12031i1BZ#..BZU410199908-200406

12156INSULATOR, OIL PAN

main12156-58080i15BFTE..BU410,420,430200206-200406

main12156-78010iJ05D,S05D..XZU401,411,413,421,423,433199905-200610

subS1257-62900

1301

1302

13613CNOZZLE, OIL

main90915-01015i15BCNG,15BLPG..XZU412199908-200406

15301GAGE SUB-ASSY, OIL LEVEL

main15301-58050i15BFTE..BU400,410,420,430199908-200406

main15301-58060i1BZ#..BZU410200011-200406

main15301-78020iJ05C..XZU430..40TOV199905-200406

subS1530-16352

main15301-78030iJ05C..XZU400,410..IV6199905-200005

subS1530-14771

main15301-78040iS05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T199905-200406

subS1530-16342

main15301-78050iS05C..XZU382199908-200406

subS1530-16540

main15301-78061iN04C..XZU414,415200310-200705

subS1530-16933

main15301-78070iJ05D,S05D..XZU401,411,413,421,423,433200406-200511

sub15301-78071

main15301-78071iJ05D,S05D..XZU401,411,413,421,423,433200511-200610

subS1530-16962

main15301-78140iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200610

sub15301-E0140

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i15BCNG,15BLPG..XZU412199908-200406

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i15BFTE..BU400,410,420,430199908-200406

main15605-56010i1BZ#..BZU410200011-200406

main15703-78010iS05D..XZU421..(T3,T5)..4FC;J05C,S05#..XZU411,412,421,430..6F..(20T,40TOV)199905-200610

subS1560-51250

main15703-78030iN04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE200310-200705

subS1560-21200

15708NOZZLE SUB-ASSY, OIL, NO.1

main11418-78010iN04C..XZU414,415200310-201106

subS110B-E0010

main15708-58040i1BZ#..BZU410200011-200406

main15708-58060i15BFTE..BU400,410,420,430199908-200406

8401

9011608194

main90116-08194

9011908505

main90119-08505

9017908040

main90179-08040

91511B0614

main91511-B0614

91621B0816

main91621-B0816

9413060800

main94130-60800

38 parts on this diagram · 12 diagrams in section
