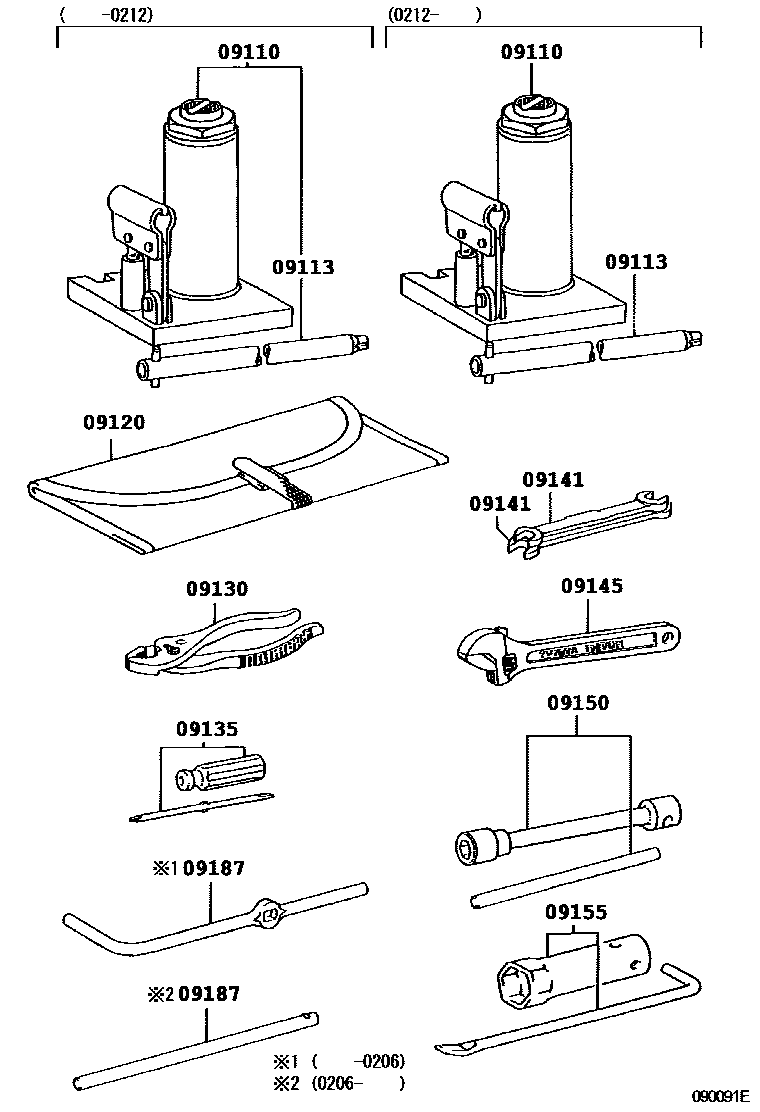

STANDARD TOOL

0001 1 0002 1 0003 1

09110JACK ASSY

main09110-37090iXZU402,411,412..T2199905-200206

sub09110-37210

sub09187-37010

sub75298-37030

sub75299-37040

sub94271-00800

main09110-37100iXZU430..CBU;XZU430..35T..IV3;BU420,XZU410,420..(40T,40TOV)..CBU;BU400,410,420,430,XZU40#,41#,42#..(T3,T4,T5)..(20T,295T,30T,35T)199905-200206

sub09110-37250

sub09187-37010

sub75298-37020

sub75299-37040

sub94271-00800

main09110-37110iBU420,430..6F..(35T,40T)..IV3;BU410,XZU400,401,410,411,420,430..(35T,40T,40TOV)..(IV3,IV6)199905-200206

sub09110-37260

sub09187-37010

sub75298-37020

sub75299-37040

sub94271-00800

main09110-37130iXZU382199908-200206

sub09110-37240

sub09187-37010

sub75298-37030

sub75299-37040

sub94271-00800

main09110-37140iXZU400..40T..CBU199905-200206

sub09110-37260

sub09187-37010

sub75298-37020

sub75299-37040

sub94271-00800

main09110-37200iXZU411,412..T2;XZU402..T2..CBU200206-200212

sub09111-37190

sub09113-37060

main09110-37210iXZU402..T2..IV3200206-200212

sub09111-37190

sub09113-37070

main09110-37220iXZU40#..T3,T4;BU410,420,430,XZU41#,42#,430..(T3,T4,T5)..CBU200206-200212

sub09111-37200

sub09113-37080

main09110-37240iXZU382200206-200212

sub09111-37190

sub09113-37080

main09110-37250iXZU411..(T4,T5)..IV3;XZU411..T3..DSL..IV3;BU410,420,430,XZU410,412,42#,430..(T3,T4,T5)..(IV3,IV6)200206-200212

sub09111-37200

sub09113-37080

main09110-37260iXZU400..40T200206-200212

sub09111-37200

sub09113-37090

main09111-37190iXZU388;XZU401,411..T2200212-200610

sub09111-37260

main09111-37200iXZU412..(T3,T4,T5)..DSL;BU410,420,430,BZU410,XZU40#,410,411,42#,430..DM7,T3,T4,T5200212-200406

main09111-37230iXZU40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)200406-200805

sub09111-37280

main09111-37260iXZU488;XZU414..T2200610-201106

main09111-37280iXZU404,414,424,434,454..DM7,T3,T4,T5200805-200906

sub09111-37281

main09111-37281iXZU404,414,424,434,454..DM7,T3,T4,T5200907-201005

sub09111-37282

main09111-37282iXZU404,414,424,434,454..DM7,T3,T4,T5201006-201106

sub09111-37283

09113HANDLE, JACK

main09113-36100iXZU400..40T..CBU199905-200206

main09113-37030iXZU402,411,412..T2199905-200206

main09113-37040iXZU430..CBU;XZU430..35T..IV3;BU420,XZU410,420..(40T,40TOV)..CBU;BU400,410,420,430,XZU382,40#,41#,42#..(T3,T4,T5)..(20T,295T,30T,35T)199905-200206

sub09113-36140

main09113-37050iBU420,430..6F..(35T,40T)..IV3;BU410,XZU400,401,410,411,420,430..(35T,40T,40TOV)..(IV3,IV6)199905-200206

sub09113-36140

main09113-37060iXZU411..T2..IV3200206-200505

sub09113-37070

main09113-37060iXZU40#..20T,30T,35T;BZU410,XZU411,413,414,42#,433..CBU200406-200610

sub09113-37070

main09113-37070iXZU402..T2..IV3200206-200705

sub09113-0W030

main09113-37080iXZU411..T3..DSLL200206-200705

main09113-37090iXZU400..40T200206-200406

sub09113-37110

main09113-37100iXZU404..40T200406-200610

sub09113-0W080

main09113-37100iXZU404..40T200610

sub09113-0W080

main09113-37120iXZU404..40T..CBU200610

09120BAG, TOOL

main09120-30020iBU400,410,420,430,XZU382,40#,41#,42#,430199905-200003

main09120-37020iBU400,410,420,430,XZU382,40#,41#,42#,430200003-200206

sub09120-37030

main09120-37030iXZU388,40#,41#,42#,433..DCRL,DSL,DSLL200206-201012

main09120-37031iXZU404,414,424,434,454,488201101

09130PLIERS

main99913-11500iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(29199905-200705

09135DRIVER, SCREW

main99915-10700iXZU411..T3..DSLL199905-200705

09141SPANNER

main99914-10810iXZU421..(T3,T5)..4FC;BU420,XZU411..(30T,40T)..(DSLL,TDEFI);BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200705

main99914-11214iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(29199905-200705

09145WRENCH, MONKEY

main99911-11200iXZU421..(T3,T5)..4FC;BU420,XZU411..(30T,40T)..(DSLL,TDEFI);BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200705

09150WRENCH, HUB NUT BOX

main09150-36030iBU400,410,420,430,XZU382,40#,41#,42#,430199905-200206

sub09150-37030

main09150-37030iXZU412..CNG,LPG200206-200705

09155WRENCH, SPARK PLUG

main09155-74010iXZU412..CNG,LPG200011-200705

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iBU400,410,420,430,XZU382,40#,41#,42#,430199905-200206

main09187-37010iXZU412..CNG,LPG200206-200705

10 parts on this diagram · 3 diagrams in section
