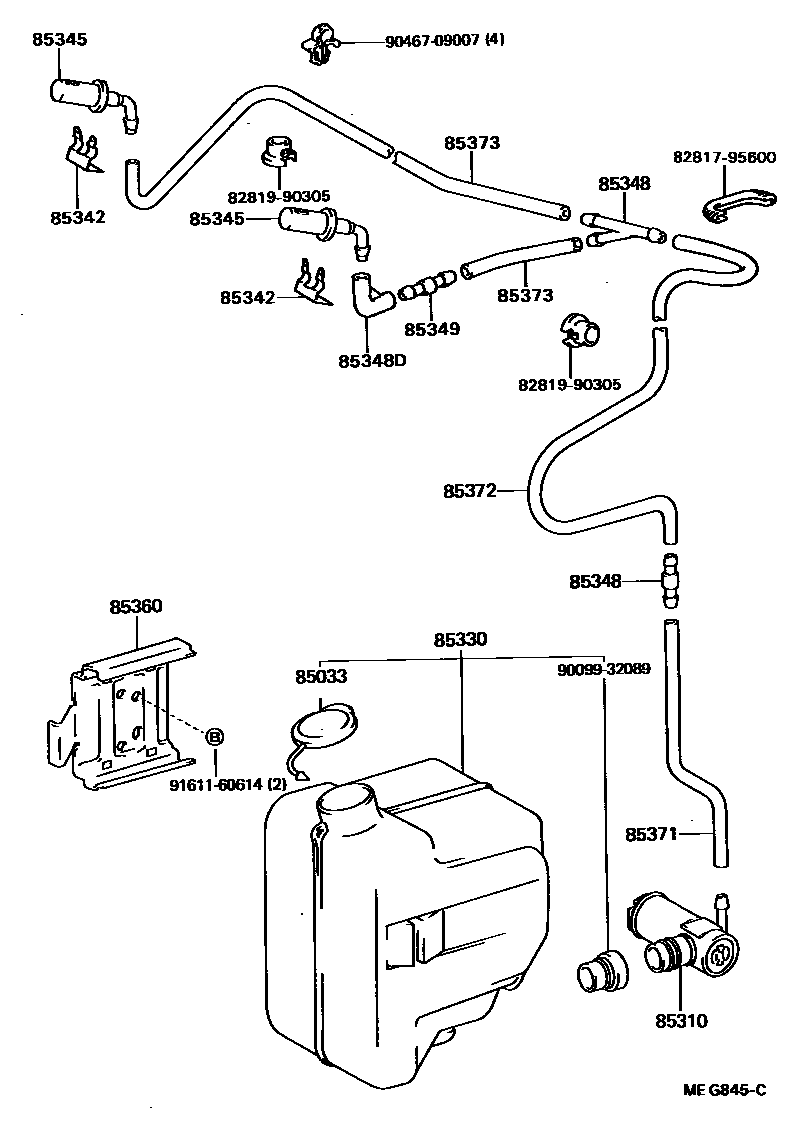

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iBU60198601-199505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iBU60198601-199505

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iBU60198601-199505

85342HOLDER, WASHER NOZZLE

main85342-95010×2iBU60198609-199505

85345NOZZLE, WINDSHIELD WASHER

main85035-95012×2iBU60198601-199505

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iBU60198805-199505

3-WAY

main85349-89122iBU60198805-199505

2-WAY

main85355-87201iBU60198601-198703

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iBU60198705-199505

main85355-20070iBU60198601-198705

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iBU60198601-199505

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95A00iBU60198601-199505

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iBU60198601-198805

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iBU60198601-198704

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBU60198601-198704

8281795600PROTECTOR, WIRING HARNESS, NO.1

main82817-95600

8281990305GROMMET, WIRING HARNESS

main82819-90305

9009932089

main90099-32089

9046709007

main90467-09007

9161160614

main91611-60614

17 parts on this diagram · 1 diagram in section
